SDH-M-10 Mechanical Manhole Cover Lifter

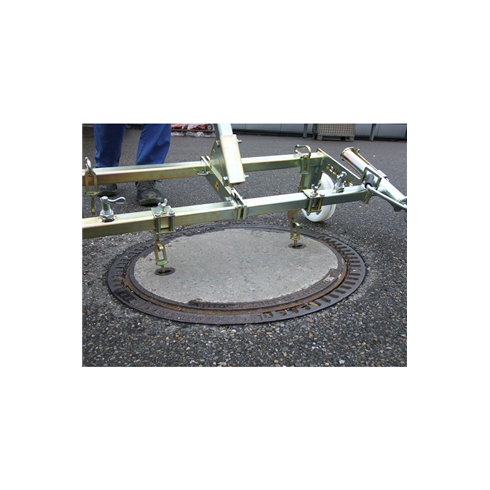

SDH-M-10 is a mechanical Manhole Cover Lifter for lifting manhole covers up to a diameter of 900mm

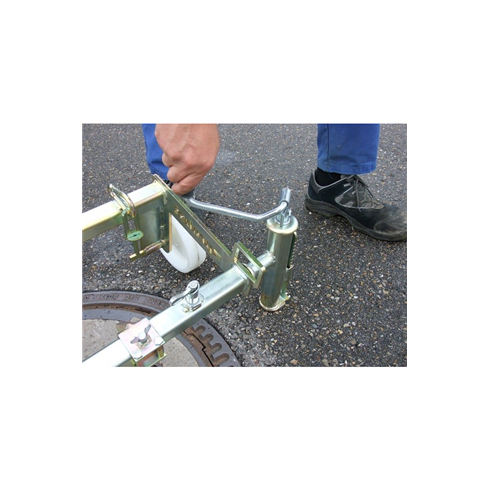

Seized covers can be loosened easily with 2 foldout feet (lifting spindles) on the sides

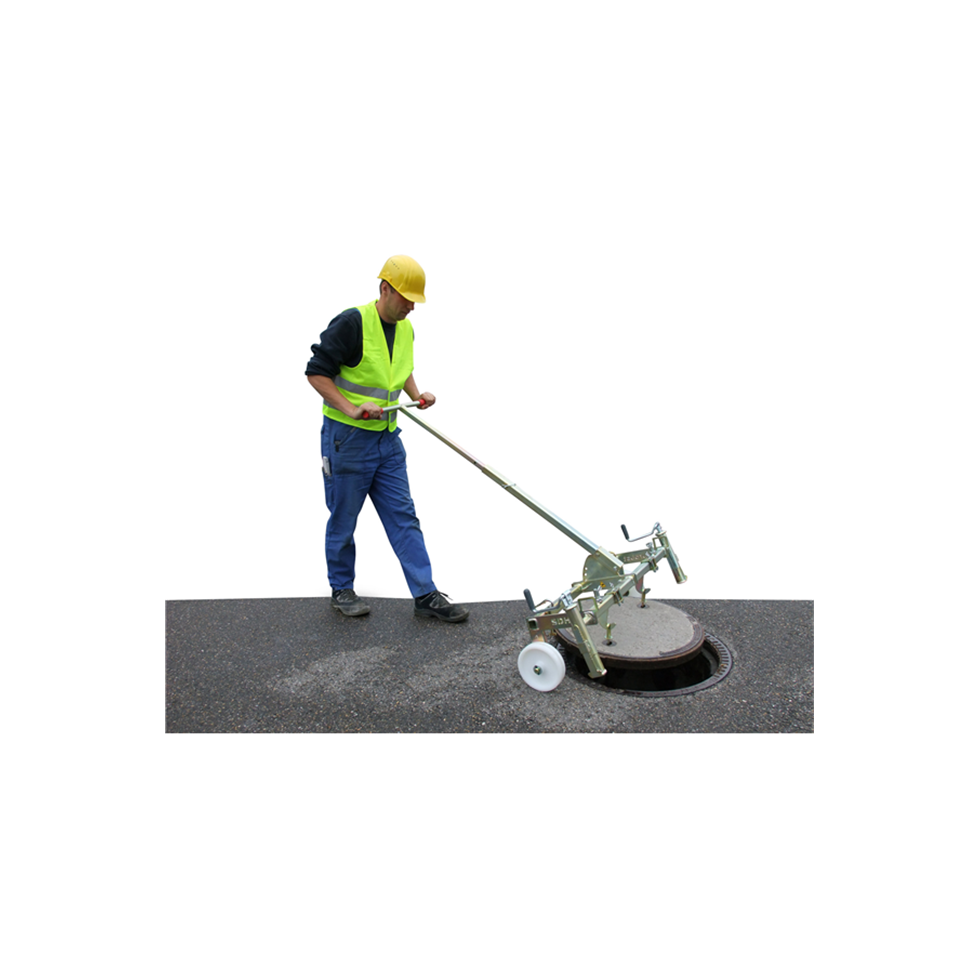

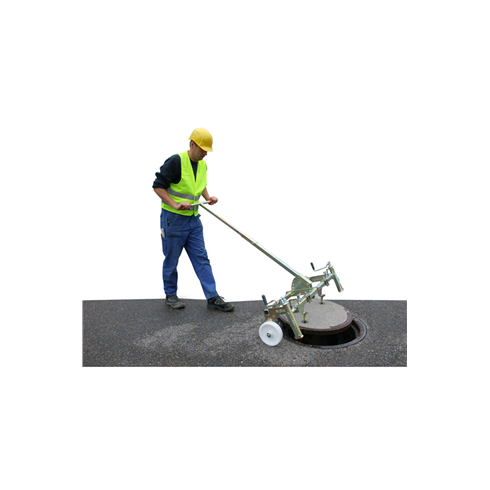

Handle length and angle can be adjusted and can be easily dismantled entirely for transport

Hook centres min/max: 100/590mm

Pulling force: 1000kg

Weight: 34kgs

Supplied with:-

• 2no Type A Keys and Type B Keys (35x10x8mm) - see attached picture
• 2no Large Spreader Bars
• 1no Small Spreader Bar

DELIVERY IS 2-3 DAYS FROM DATE OF ORDER
