SDH-LIGHT Mechanical Manhole Cover Lifter

SDH-LIGHT is a small and light mechanical Manhole Cover Lifter for lifting manhole covers up to a diameter of 800mm

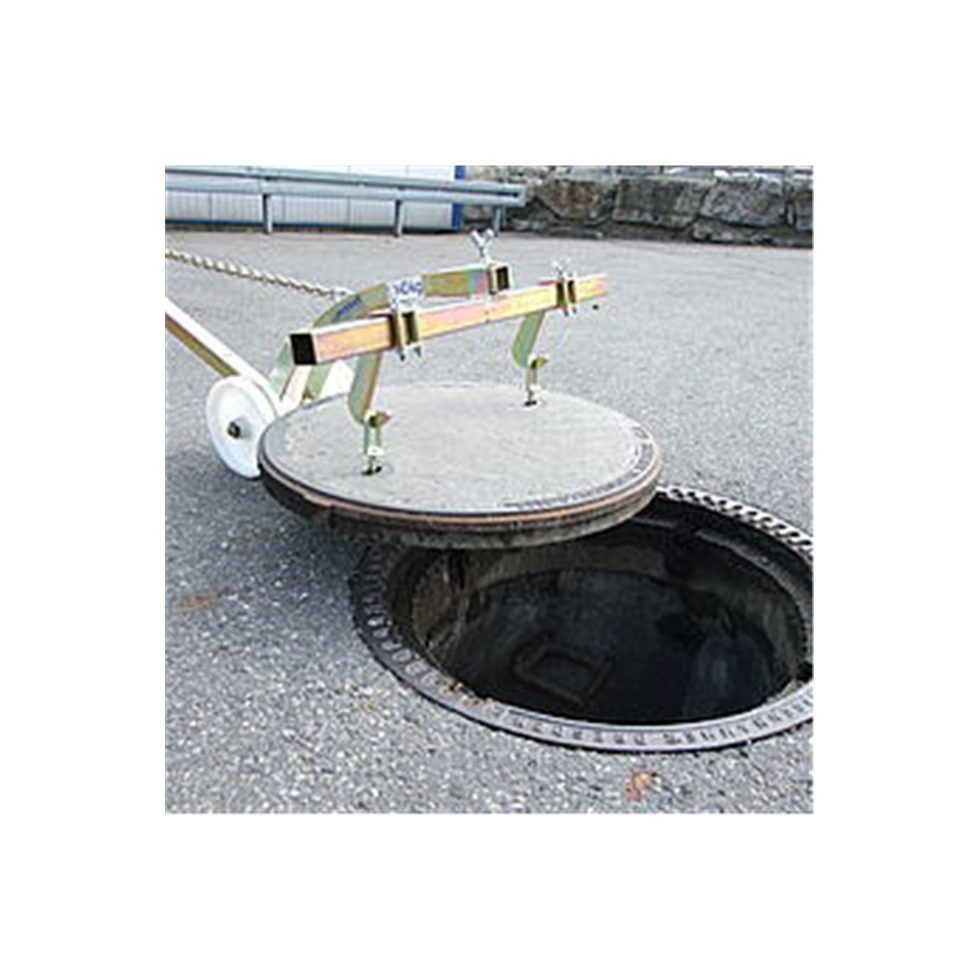

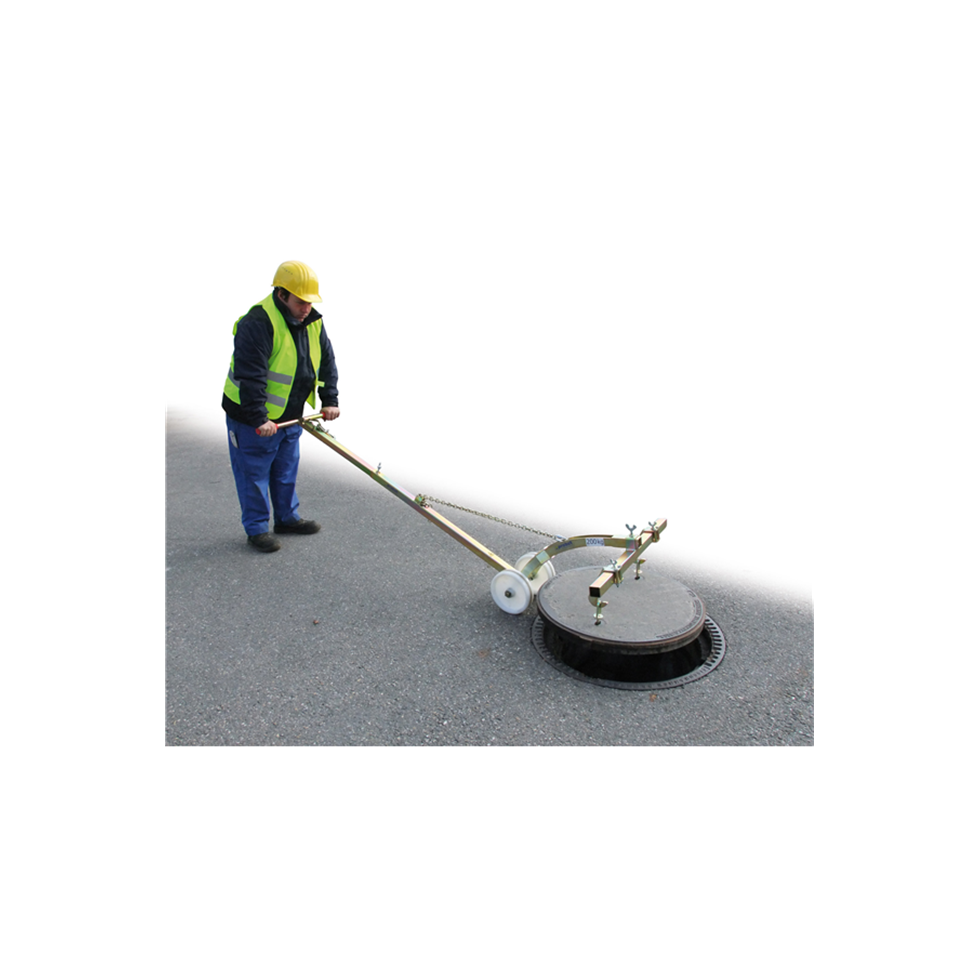

The manhole cover is lifted by tilting the SDH with the handle

Optimal lifting position is adjusted by chain

The crosspiece of the SDH-LIGHT can pushed forward or backward by approx 120mm

Hook centres min/max: 100/740mm

Pulling force: 200kg

Weight: 18kgs

Supplied with 2no Type A Keys and Type B Keys (35x10x8mm) - see attached picture

DELIVERY IS 2-3 DAYS FROM DATE OF ORDER
