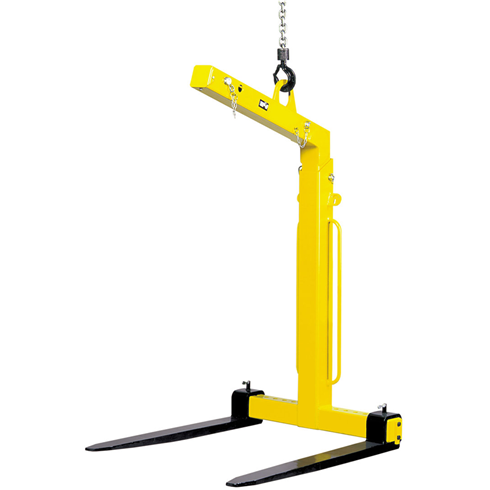

CAMLOK TKG2.0VHS 2000kg Self Weight Balance Crane Forks
Product Code: CM-TKG2.0VHSNet Weight (Per Item): 220kg
CAMLOK TKG2.0VHS 2000kg Self Weight Balance Crane Forks
The TKG-VHS range of Crane Forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system
Crane Forks with self weight balancing tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines
The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down
For efficient operation of this mechanism the load be greater than 20% of the working load limit
- Factor of safety 4:1
- Maintenance free
- Highly visible safety colour
- For transporting rings or coils, simply push fork tines together
- Easily adjustable tines for all pallet sizes
- Supplied with chain for securing the load
Model: TKG2.0VHS
WLL: 400-2000kg
Adjustment of tines: 400-900mm
Useable height: 1300-2000mm
Length of tines: 1000mm
Section of tines: 120x40mm
Overall height: 1655-2355mm
Weight: 220kg
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 7-10 days from date of order.
