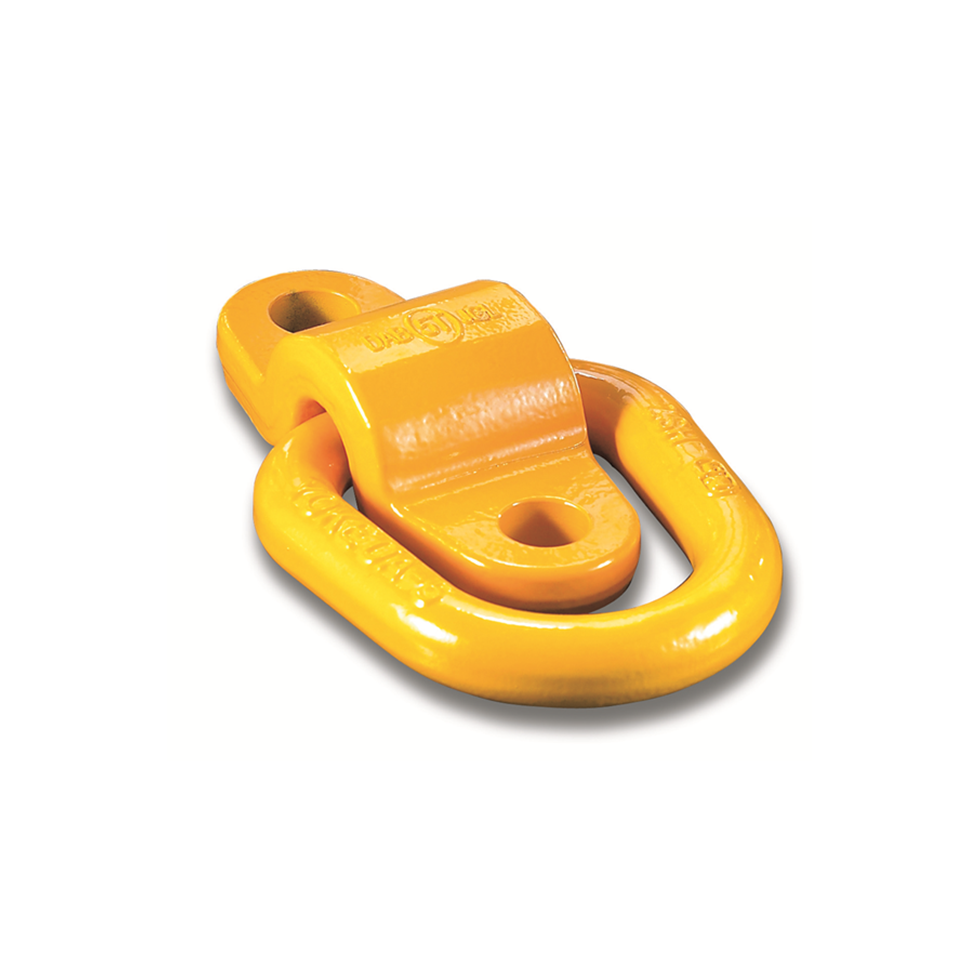

Yoke Grade 8 Bolt-on Lifting Point 1tonne to 5tonne
Product Code: YOKE-8-058Net Weight (Per Item): 0.7kg
Yoke Grade 8 Bolt-on Lifting Point BS EN 1677-1+2
- Designed with spring, stop at any angle supplied without bolt
- Pivots 180° and allows side load lifting
- Manufactured from forged alloy steel, quenched and tempered
- Manufactured and tested in accordance with EN1677-1
- Load rated parts are 100% magnaflux crack detected
- Individual forged parts are traceable to Test Certification
- Supplied without bolts; usage of Grade 10.9 or Grade 12.9 bolts is recommended
- Proof tested to 2.5 times the WLL
- Fatigue rated to 1.5 times the WLL
- Design Factor 5 : 1
- All YOKE lifting points meet or exceed all the requirements of ASME B30.26
Uses:-
- Designed to be semi-permanent lashing or lifting point
- Suitable for attachment to lifting beams and spreader beams
Available in 1tonne, 3tonne and 5tonne capacity
Please see attached data sheet for dimensions and loading chart
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 2-3 days from date of order.
