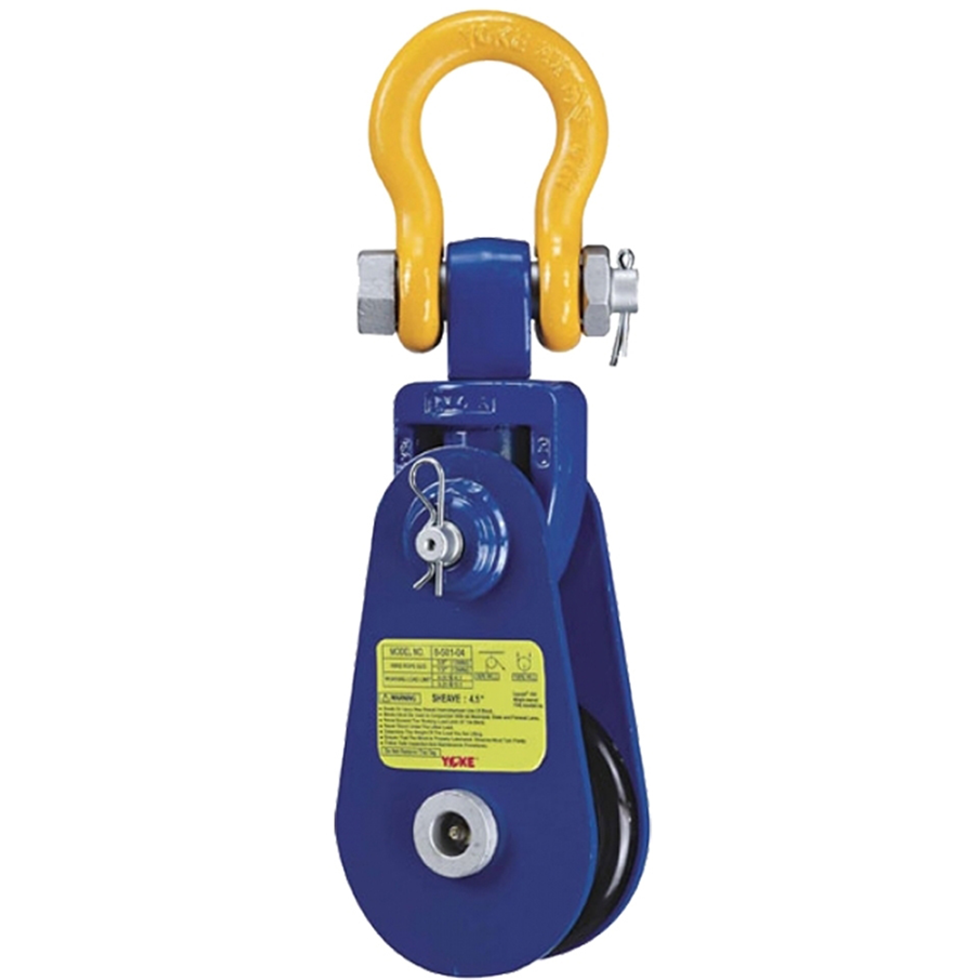

Yoke 8tonne 6" Snatch Block with Captive Shackle

Yoke 8tonne 6" Snatch Block with Captive Shackle

Product Code: YOKE-8-501-08
Net Weight (Per Item): 13.2kg
Yoke

Pricing:

SRP
£573.05
Trade Price
Login
Qty:

Yoke 8tonne 6" Snatch Block with Captive Shackle

Snatch blocks are typically used for short term and intermittent lifting applications where loads are required to be lifted and or moved horizontally

They are easy to transport from location to location and are relatively quick and easy to rig

Features:-

  • YOKE snatch blocks are manufactured of the highest quality forged alloy steel
  • Designed with a safety factor 4:1
  • Fatigue rated 20,000 cycles at 1.5 times the WLL
  • Snatch Blocks are supplied with bronze bushings and grease fitting nipples for ease of use and extended shelf life
  • Part number, wire rope size and working load limit are marked on each block
  • Permanent batch codes link to test certificates for easy traceability
  • Meets or exceeds all requirements of ASME B30.26-2010
  • ABS Type Approval Ref. TA1060896-PDA
  • Capacity: 8tonne
  • Sheave diameter: 152mm
  • Wire rope diameter: 16-19mm

Please see attached data sheet for dimensions and loading chart

Delivery Information

  • This product is supplied directly from our Manufacturer Partner.
  • Delivery of this product is 2-3 days from date of order.
*Specifications and prices may change from time to time so please confirm before placing your order.
