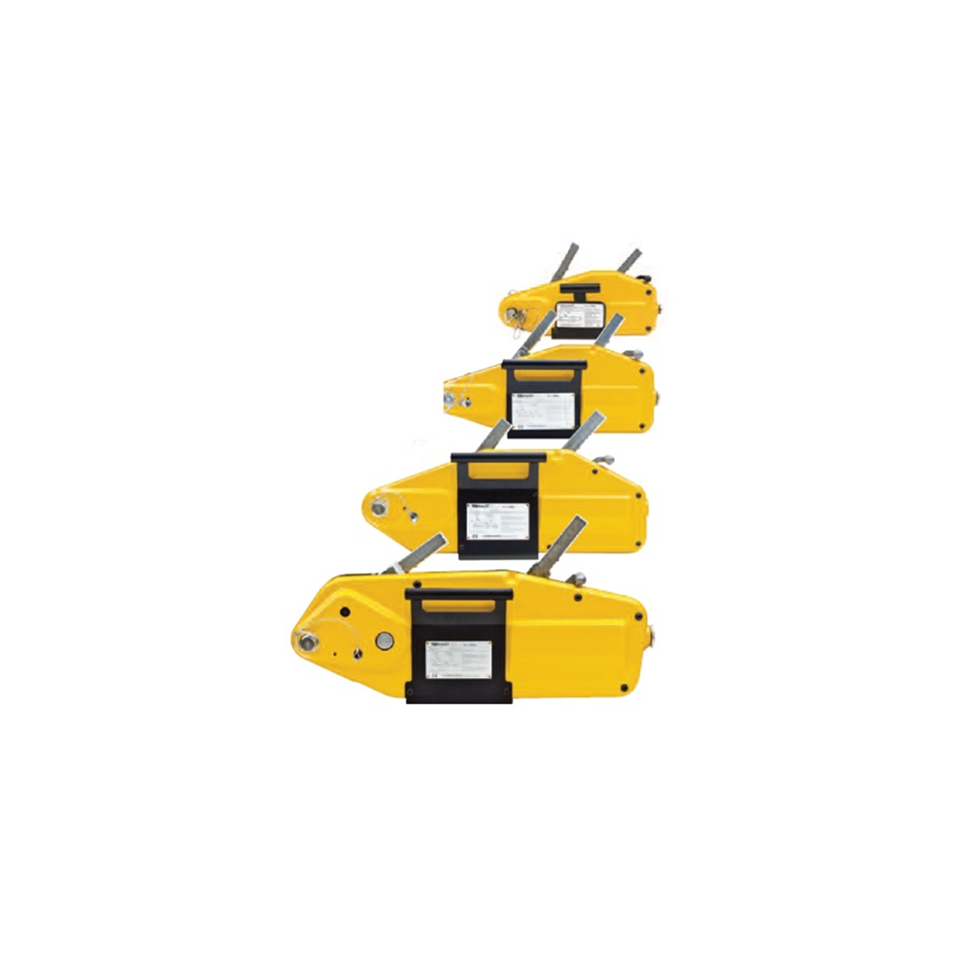

Yale YS16T Yaletrac 1600kg Wire Rope Cable Puller c/w 20mtr Rope

Yale YS16T Yaletrac 1600kg Wire Rope Cable Puller

The portable Yaletrac ST steel Cable Puller is a versatile tool for pulling, lowering, tensioning and securing loads over long distances.  It has been specially designed for applications in industry, building construction, civil engineering, power line construction, ship building and oil refineries.  The Yaletrac ST Cable Puller is almost service free - easy to use and safe

The Yaletrac ST feature a housing of dimensionally stale deep-drawn steel plates ensuring a compact and robust design.  The hand operating forces have been noticeably optimised for the user by the application of axial ball bearing

Features and benefits include:-

• Stable upright positioning of the unit due to the combination of handle and foot
• Space-saving telescopic hand lever that can be safely attached to the unit by means of a hook and-pile fastener
• Overload protection is provided by a shearing pin. Spare shear pins are conveniently located in the carrying handle. A broken pin can be replaced without removing the load
• Yaletrac ST uses a special flexible rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and is fitted with an eye sling hook with safety latch on the other end
• The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed
• Increased service life of the unit due to the use of rubber sleeves which prevent dirt and dust from penetrating into the mechanical equipemtn of the unit
• Positioning of the forward and reversing levers in tandem provides a slim design and ensures optimal power transfer
• A lever disengages the rope clamp system allowing easy and smooth installation of the rope
• The large opening in the top of the unit allows easy cleaning: simply flush the unit with water and apply motor oil for lubrication and the Yaletrac ST is again ready for use

Price is for the Winch + 20mtr Rope

Model: Y16ST

Capacity: 1600kg

Rope advance per double stroke: 60mm

Lever pull at WLL: 28daN

Weight without rope: 15.8kg

10mtr Rope weight: 10.6kg

DELIVERY IS 3-4 DAYS FROM DATE OF ORDER
