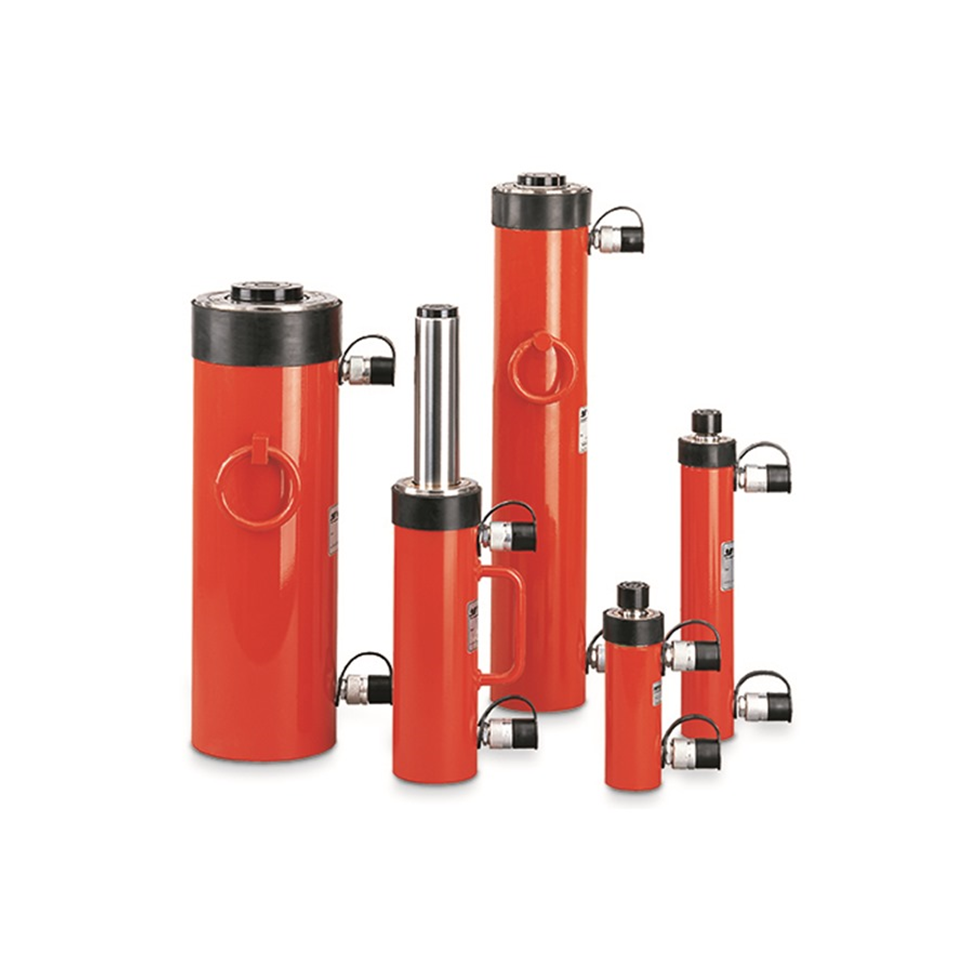

Yale YH 70tonne Double Acting Universal Hydraulic Cylinder 150mm stroke
Product Code: YALE-YH70-150Net Weight (Per Item): 37kg
These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed
Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required
Key Features
- Yale ChroMo-Design
- Operating pressure max. 700 bar
- Double-acting with hydraulic return
- Long bronze piston guidings
- Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
- Hard-chromium plated piston with replaceable, heat treated saddle
- Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod
- Stop ring can bear full capacity (pressure) and is fitted with dirt wiper
- Interchangeable hardened saddle
- Dirt wiper protects against dirt
- Fitted with carrying handle
- Oil port thread 3/8 NPT
- Incl. 2x female coupler halves CFY-1
Specifications
- Model: YH-70/150
- Cylinder size: 70tonne
- Capacity push: 700kN
- Capacity pull: 330kN
- Stroke: 150mm
- Closed height: 335mm
- Cylinder outside diameter: 146mm
- Effective plunger area push: 100cm²
- Effective plunger area pull: 47.2cm²
- Oil volume max: 1478cm³
- Weight: 37kg
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 3-4 weeks from date of order.
