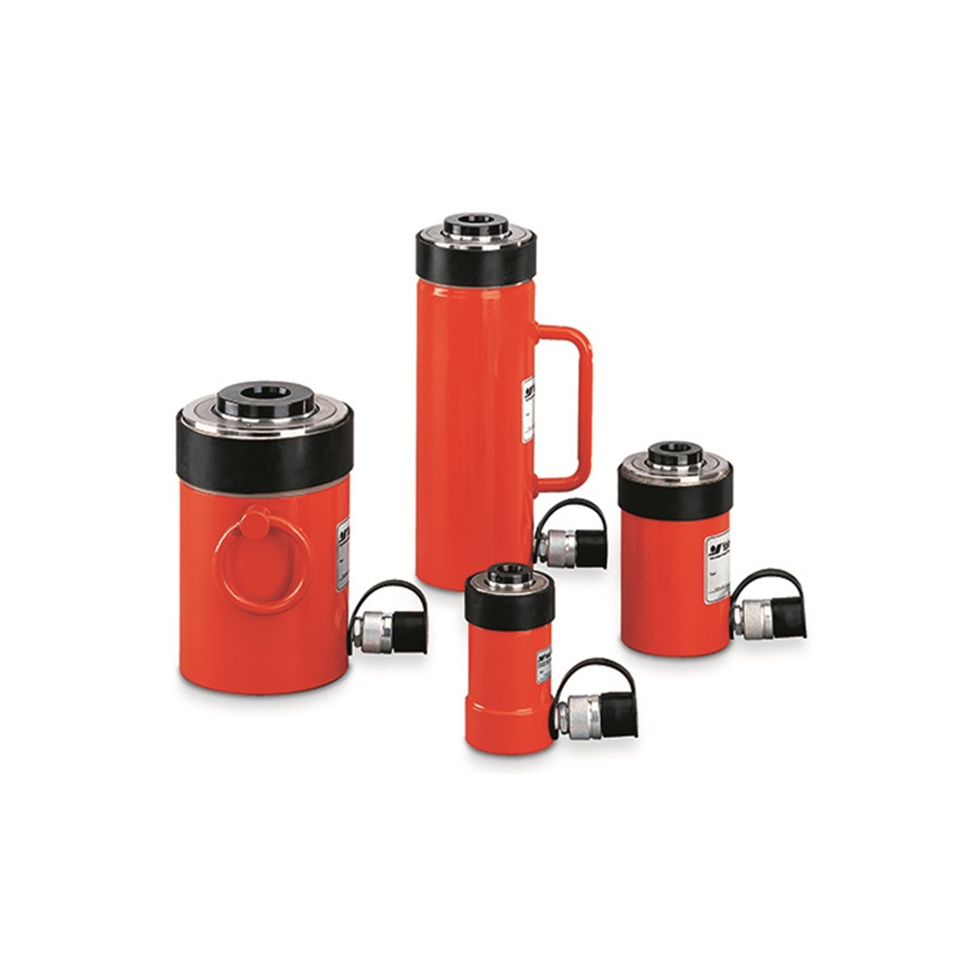

Yale YCS 21tonne Hollow Cylinder 150mm Stroke
Product Code: YALE-YCS21-150Net Weight (Per Item): 15kg
Due to the centre hole design a threaded rod can be placed through the hollow cylinders so that extremely high pulling forces can be achieved
Hollow cylinders are used as the power component within hydraulic puller sets, for prestressing anker bolts, removing axles, shafts, bushings, extracting tubes, as well as for heavy-duty pulling applications
Key Features
- Yale ChroMo-Design
- Operating pressure max. 700 bar
- Single-acting with spring return
- With large centre hole diameter
- Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
- Hard-chromium plated piston with replaceable, heattreated saddle
- Metric mounting threads at cylinder body and inside of piston
- Stop ring prevents overtravel of the piston up to full operating pressure
- Interchangeable hardened saddle
- With inner and outer dirt wipers
- Supplied with carrying handle
- Oil port thread 3/8 NPT
- Incl. female coupler half CFY-1
Specifications
- Model: YCS-21/150
- Capacity: 21tonne
- Stroke: 150mm
- Closed height: 335mm
- Cylinder outside diameter: 100mm
- Centre hole diameter: 27mm
- Effective plunger area: 30.5cm²
- Oil volume max: 458cm³
- Weight: 15kg
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 3-4 weeks from date of order.
