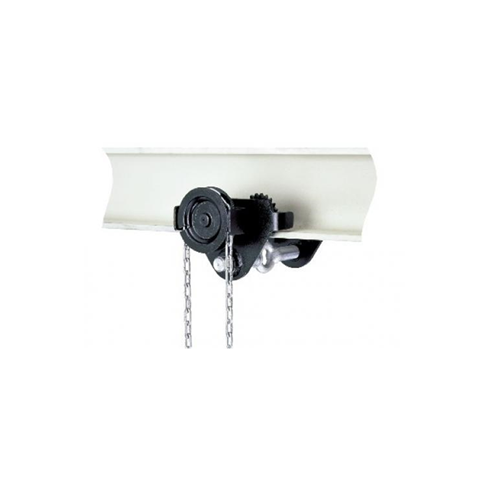

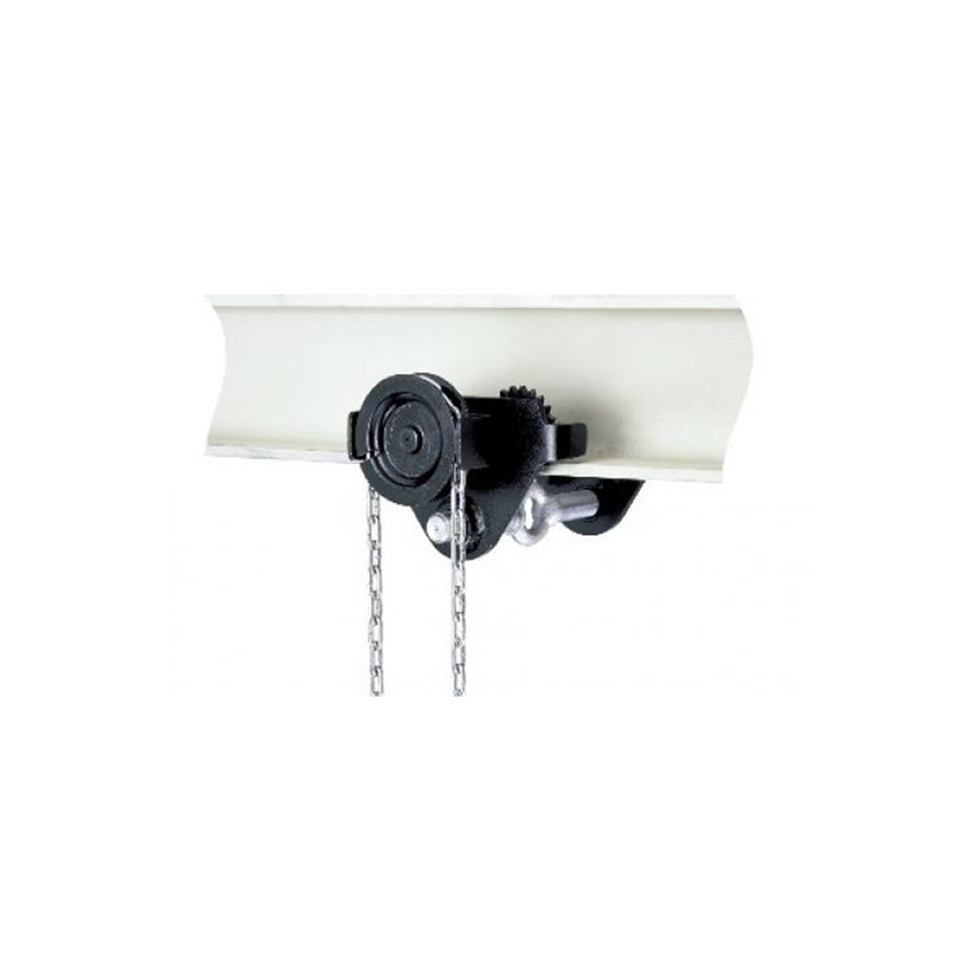

YALE HTG 500kg Geared Travel Beam Trolley 50-220mm

YALE HTG 500kg Geared Travel Beam Trolley 50-220mm

The Yale HTP Trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment

It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings

Adjustable to fit a wide range of beam widths and profiles (e.g INP, IPE and IPB)

Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis - no creeping to the left or the right

The trolley wheels are designed for a max. beam profile incline of 14% (DIN 1025 - part 1)

2.5mtr hand chain drop is fitted as standard - longer lengths available (please contact us for details)

Model: HTG500

Capacity: 500kg

Beam width: 50-220mm

Weight: 9.7kg

THIS ITEM IS USUALLY SHIPPED WITHIN 24hrs
