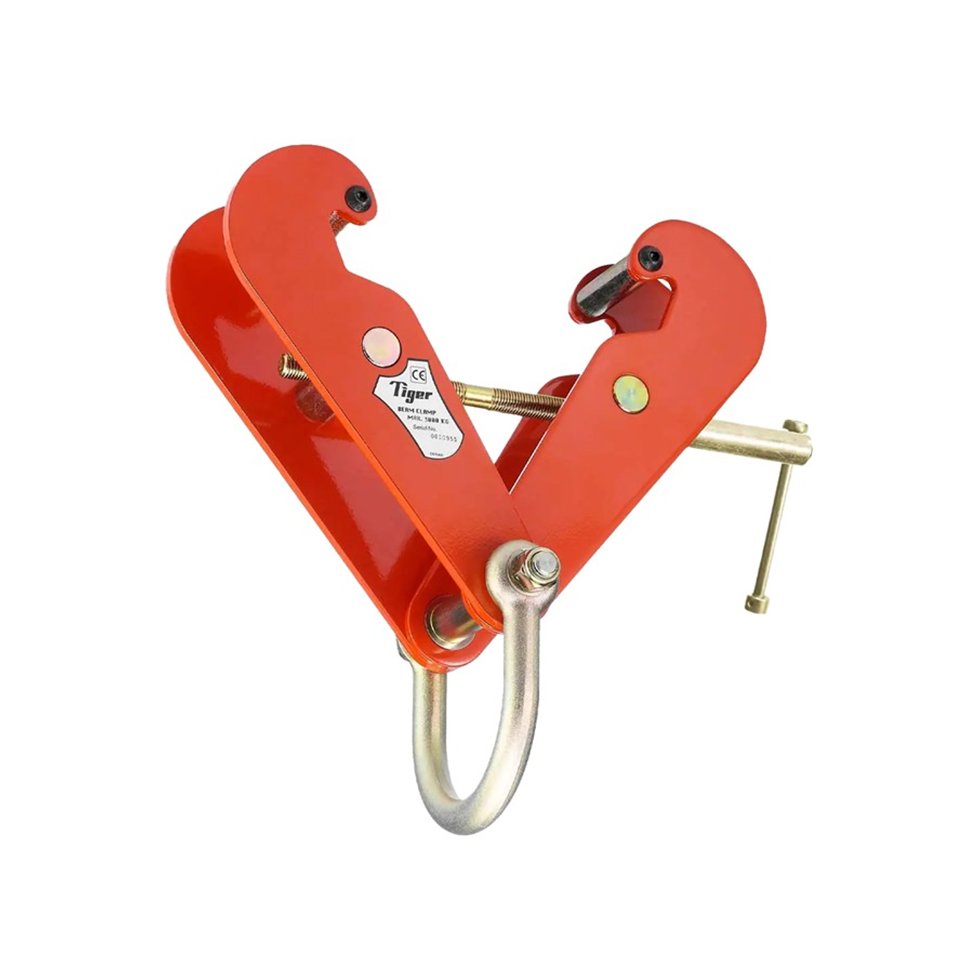

Tiger 1tonne BCS Beam Clamp with Shackle
Product Code: BCS-0100Net Weight (Per Item): 4.5kg
Tiger 1tonne BCS Beam Clamp with Shackle
- Quick and versatile rigging point for hoisting equipment
- Shackle suspension point
- Highly flexible – for lifting, pulling or as an anchor point

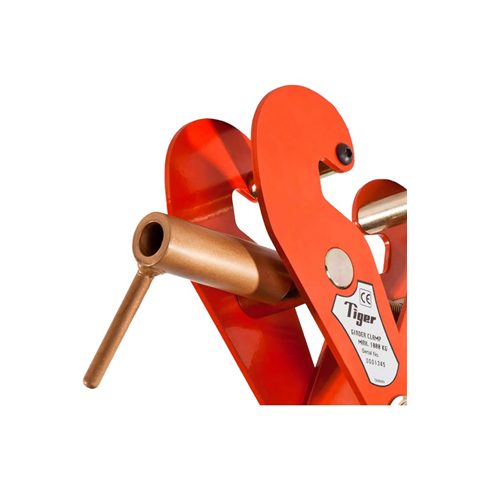

- Multidirectional adjusting screw spindle for easy attachment and safe and secure grip
- Wide Beam flange adjustment range
- Operating temperature -40°C to +80°C

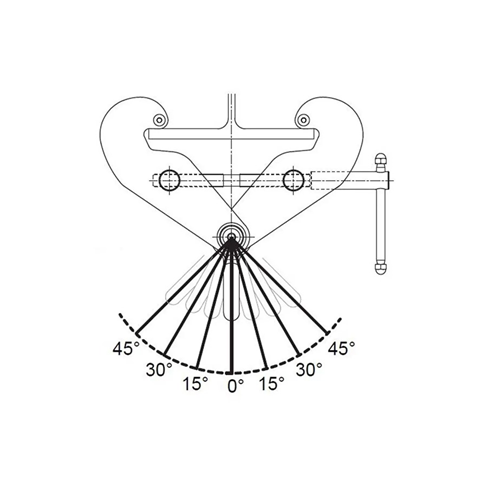

- Factor of safety: 5:1 for straight pulling and lifting, 4:1 at angles up to 45°(applying the appropriate reduction in WLL)
- Part code: BCS-0100
- Capacity: 1tonne
- Beam width range: 75-210mm
- Weight: 4.5kg
