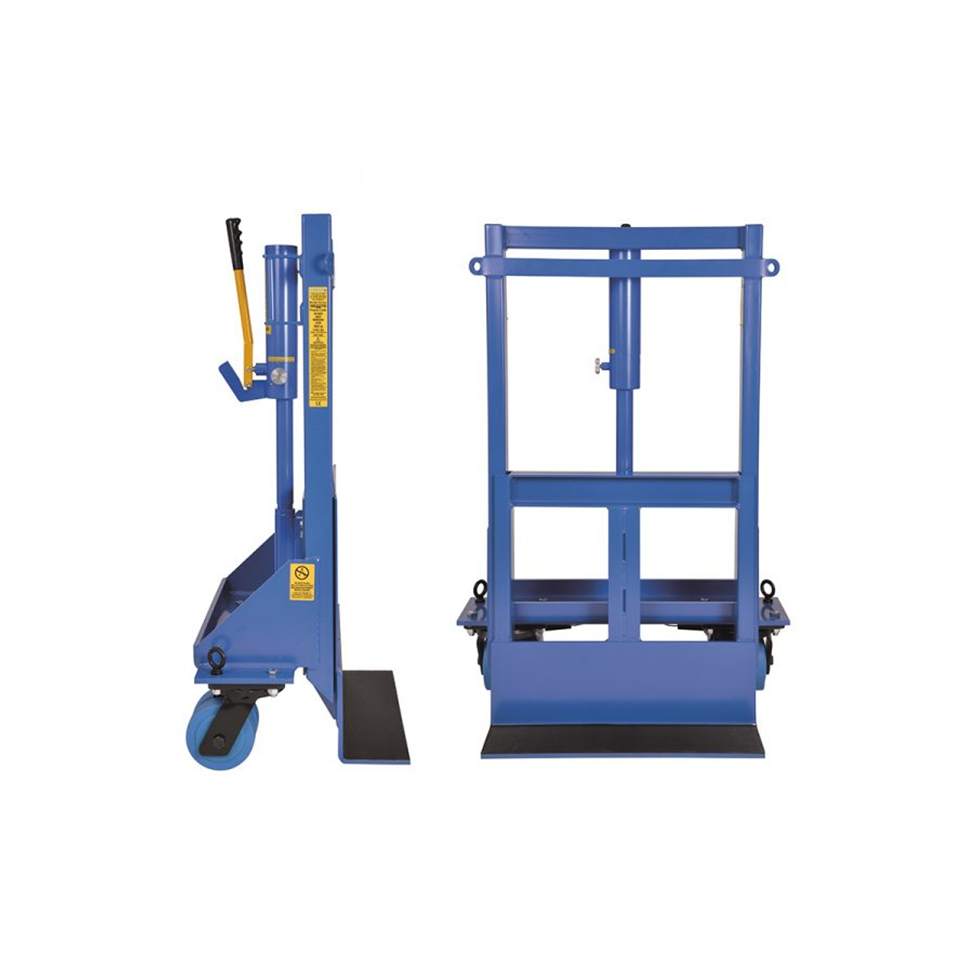

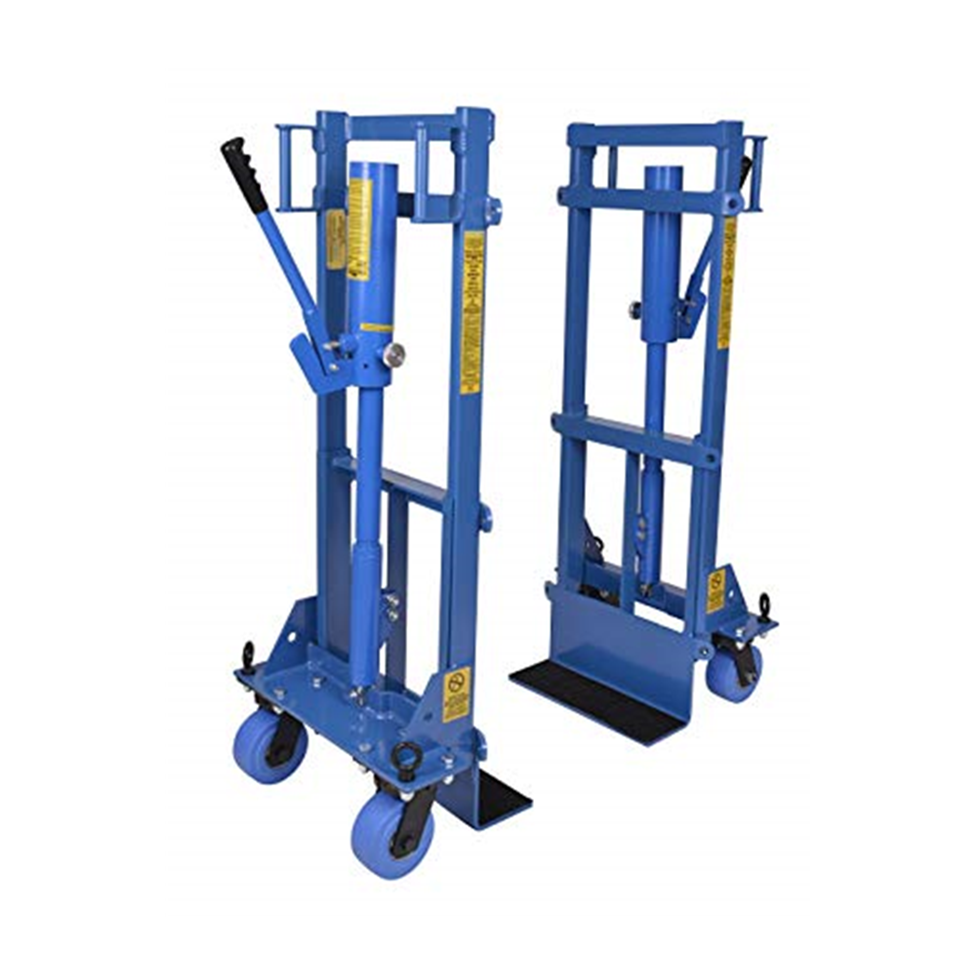

SKOOTS SK5000 Moving System 5000kg

SKOOTS SK5000 Moving System 5000kg

Economic, simple, manoeuvrable and safe Skoots is simple to operate and requires minimal training

Secure the load to the eyebolts fitted to the Skoots frame using both straps supplied

Pump the handle on the hydraulic jack to raise the load

Move the load into position, using the directional locks on the castors if required

Lower the load with accuracy using the valve wheel on the jacks

It really is as simple as that!

Features and benefits:-

• SAFE AND EASY - the load has only to be lifted approx 15mm to allow for the insertion of the toe plates
• EFFORTLESS - hydraulic jacks raise and lower the load
• NO SLIP OR SLIDE - loads cannot slip or slide off as Skoots are strapped to the item being moved making it safer to move even over uneven groun
• MINIMAL HEIGHT INCREASE - the overall load height in transit is only increased by a few millimetres helping move items that are a tight fit through doorways etc
• EASY POSITIONING - four swivelling castors allow the load to be precisely manoeuvred and the hydraulic jacks allow the load to be lowered in position in a controlled operation
• MANOEURABILITY - smooth-running castors with precision ball bearing journals allow easy and controlled steering around corners and obstacles
• DIRECTIONAL LOCS - four-way directional locks fitted to the castors are extremely useful when negotiating corridors or when moving across floor surfaces with a gradiant
• EASY TO TRANSPORT - compact for easy transportation
• OVERLOAD PROTECTION - pressure relief valve fitted to jacks for extra safety

Model: SK5000

Load capacity: 5000kg

Height: 1170mm

Width: 790mm

Toe plate size: 600mm x 150mm

Max lift: 200mm

Weight (pair): 232kg

Strap length (pair): 4.5mtr each

DELIVERY IS CURRENTLY 4-5 WEEKS FROM DATE OF ORDER
