Reid 375kg Shackled T-Davit Radius 1450mm
Product Code: TDSA3TD2Net Weight (Per Item): 48kg
Reid 375kg Shackled T-Davit Radius 1450mm

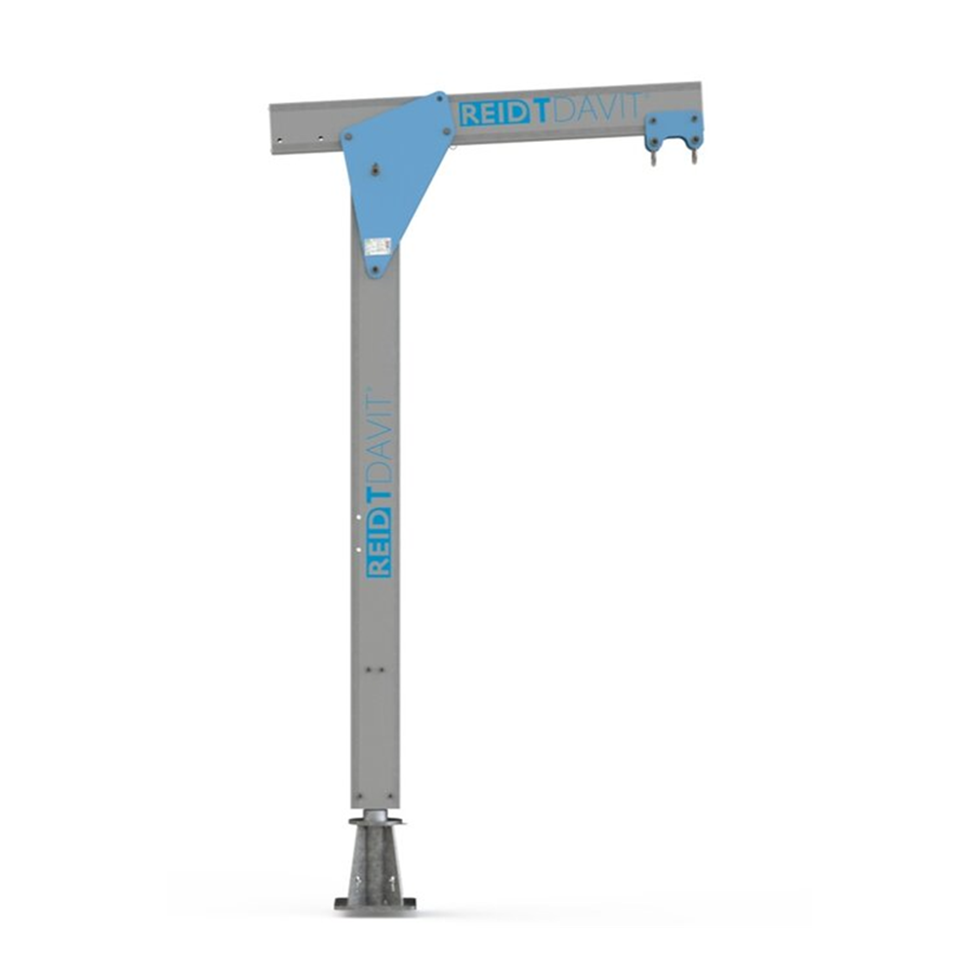

The T-Davit is a lightweight and portable aluminium Davit system with a lifting capacity of 375kg and 360° rotation under a full load
Manual or electric Chain Hoists can be hooked from the shackles on the head of the T-Davit beam
Supplied with STMG0500V2 GMS (galvanised mild steel) Top Mount Socket (other Sockets available - please contact us for details)
Radius position A: 1450mm (beam option 3)
Radius position B: 1328mm (beam option 3)
Available with five different column options (please see attached data sheet for dimensions)
Two piece aluminium Davit
Twin shackle lifting points
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 5-7 days from date of order.
