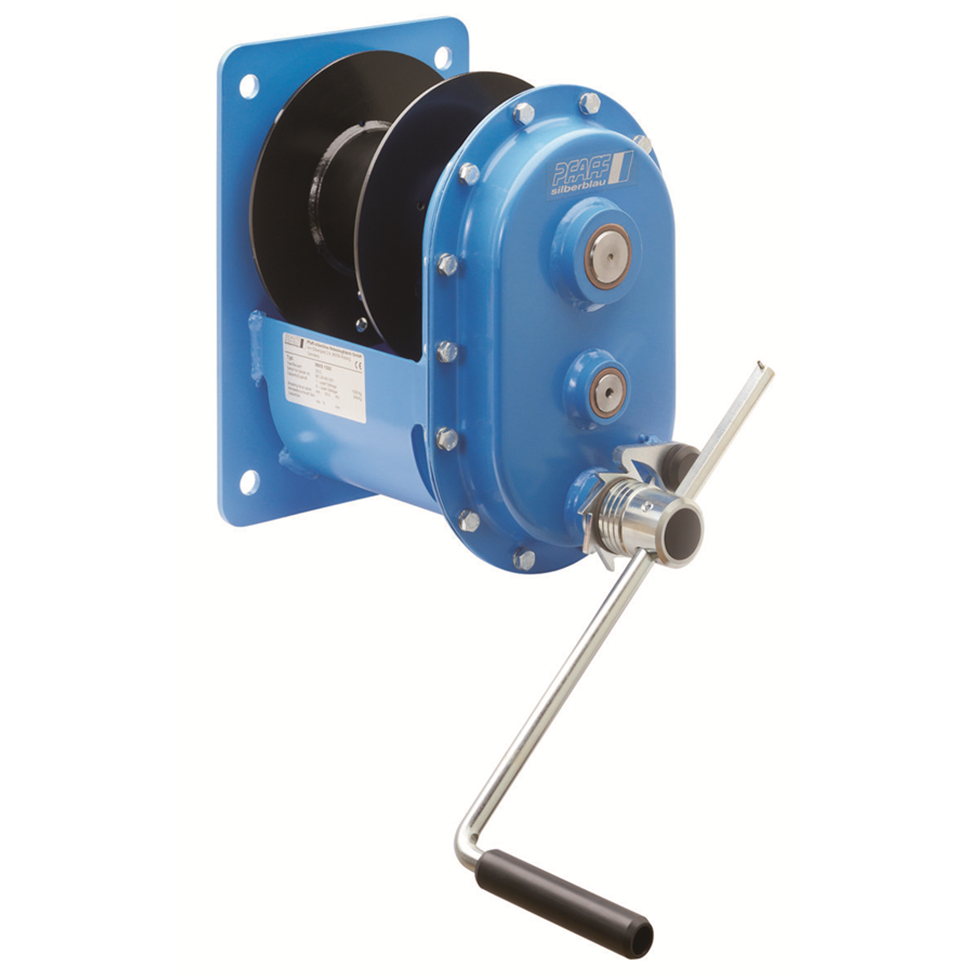

Pfaff MWS 1000kg Spur Gear Drive Wire Rope Hand WinchPfaff MWS 1000kg Spur Gear Drive Wire Rope Hand Winch

Pfaff MWS 1000kg Spur Gear Drive Wire Rope Hand Winch

Product Code: CM-MWS1000-RS
Net Weight (Per Item): 27kg
PFAFF

Pricing:

SRP
£902.02
Trade Price
Login
Qty:

Pfaff Silverblau MWS Manual Wire Rope Hand Winch With Spur Gear Drive

The MWS is a high quality Wire Rope Winch designed to be used where no electricity is available or in a dirty environment

Enclosed gear drive for protection of internal parts, even under tough working conditions

The Winch has spur gears on roller bearings while the rope drum in on plain bearings

Quick and easy mounting onto walls, poles etc...

Compact design

Self-locking, anti-kickback and adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of the rope

Fitted with automatic load pressure brake for safe holding and extremely sensitive lowering of the load.  Unintentional brare release is prevented even with swinging loads

These Winches are suit for operation in ambient temperatures of -20°C up to +40°C

Lifting capacity: 1000kg

Lifting capacity last rope layer: 587kg

Crank effort 1st rope layer: 11daN

Ratio: 1:17

Recommended rope diamter: 9mm

Usuable rope length max: 25mtrs

Number of rope layes max: 5

Weight without rope: 27kg

*** Supplied without Wire Rope ***

DELIVERY IS APPROX 10-12 DAYS FROM DATE OF ORDER

*Specifications and prices may change from time to time so please confirm before placing your order.
