PETZL Coeur 12mm Stainless Steel Anchor Bolt

PETZL Coeur 12mm Stainless Steel Anchor Bolts

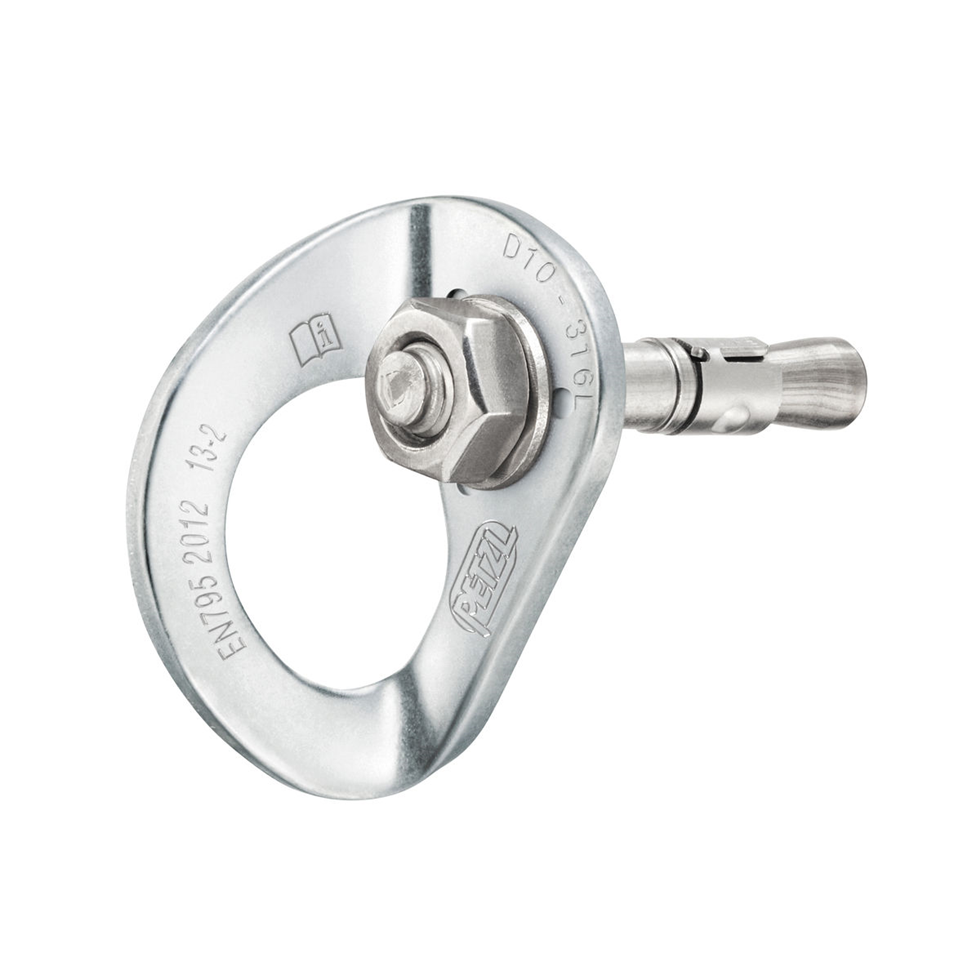

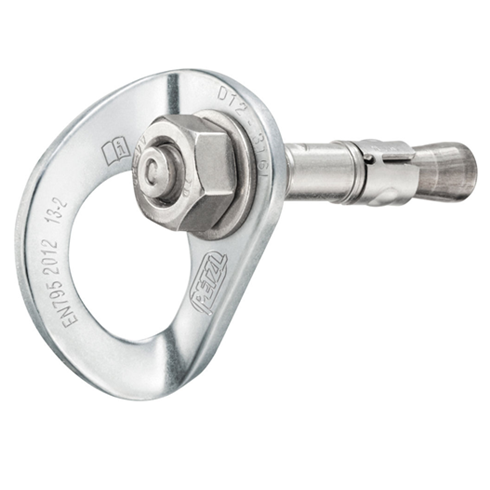

Stainless Steel Anchor comprising of a Coeur Stainless hanger, a 12mm bolt and a nut, designed for typical exterior uses

316L Stainless Steel offers excellent resistance to corrosion in typical exterior environments

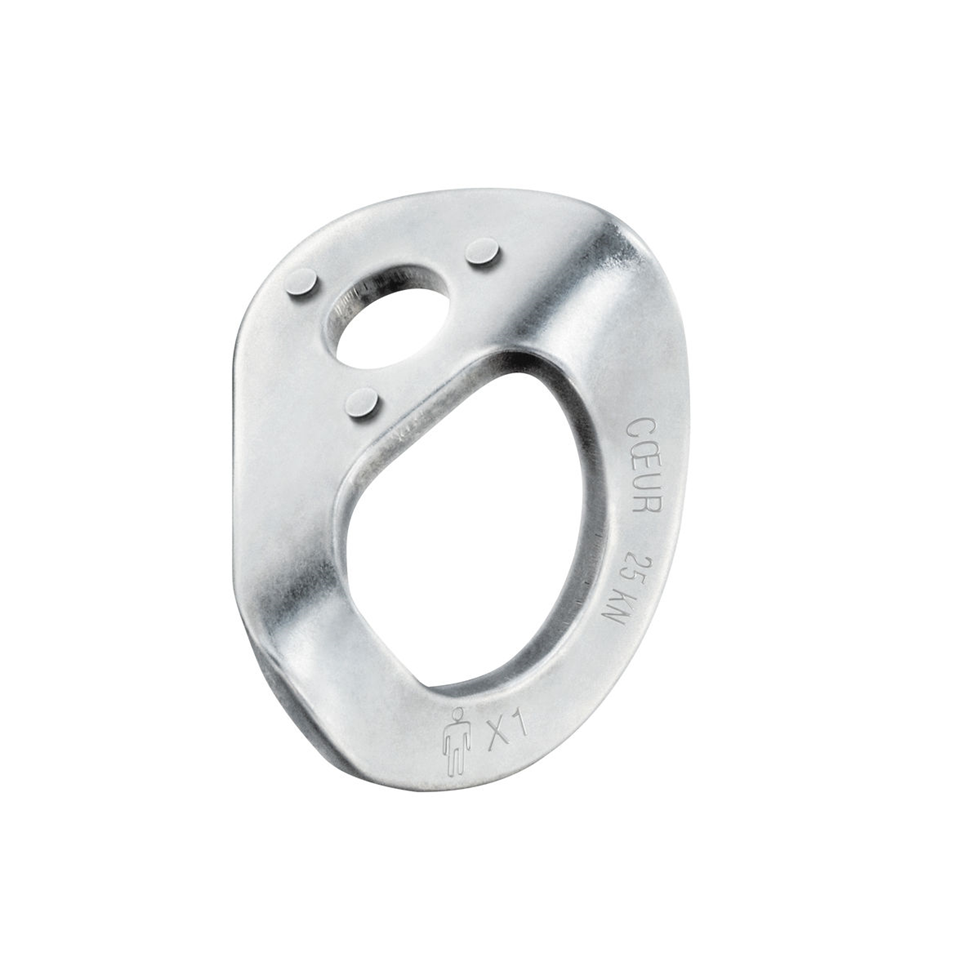

Hanger anti-rotation system - textured back keeps the hanger from turning when the Anchor is being installed or when it is heavily laterally loaded during use

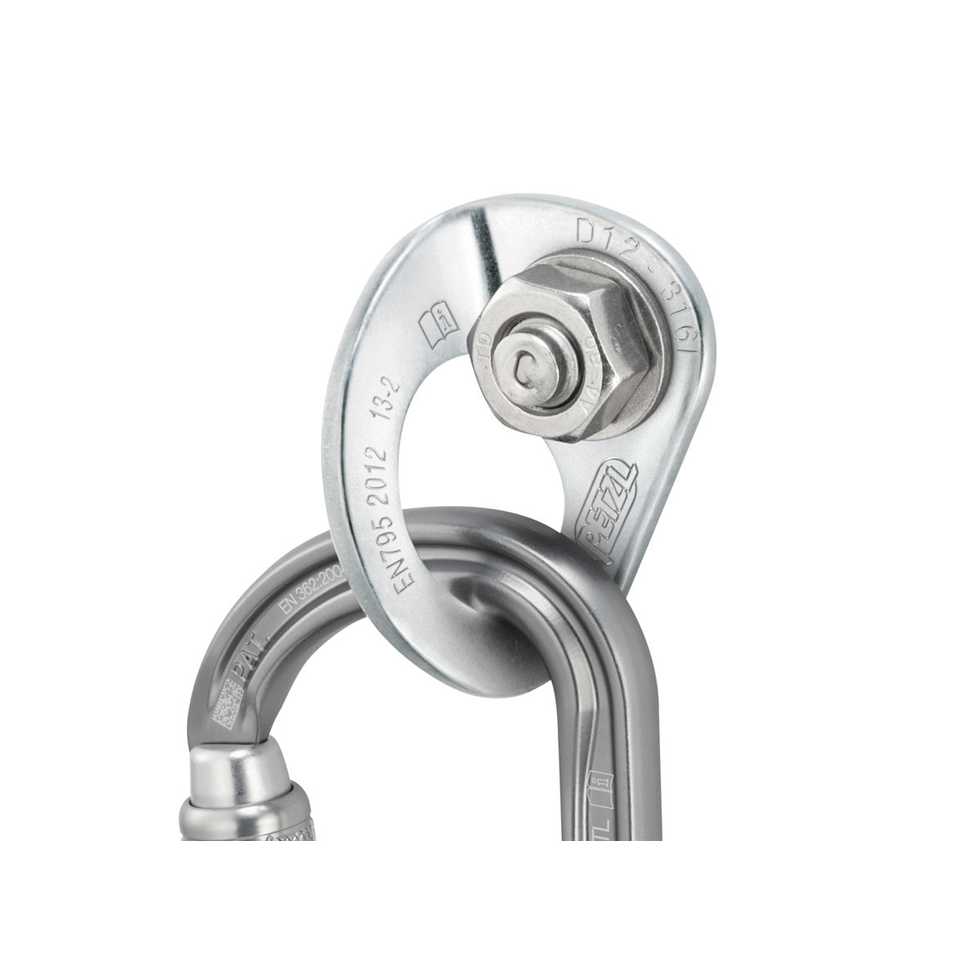

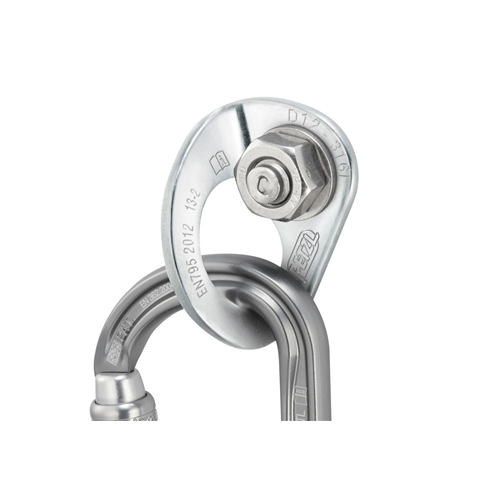

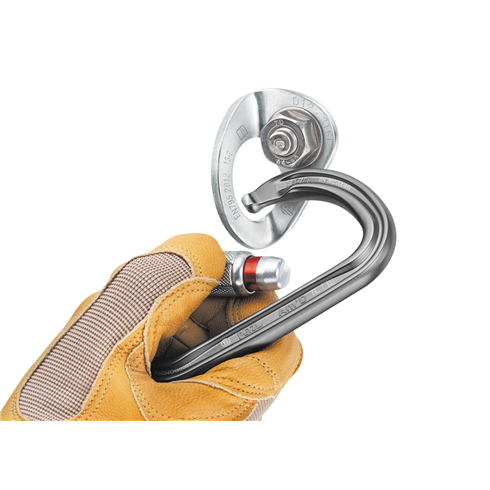

Easy clipping - the wide, ergonomic connection hole facilitates carabiner clipping.  Also the width of the hole allows installation of two carabiners at the same time

Prevents wear of carabiners - the thickness of the hanger and the rounded edges of the connection hole limit wear of carabiners

Bolt diamer: 12mm

Drilling depth: 8.5cm

Drilling diameter: 12mm

Resistance to cutting on concrete 50 MPa: 25kN

Pull-out strength in concrete 50 MPa: 18kN

Weight: 135g
