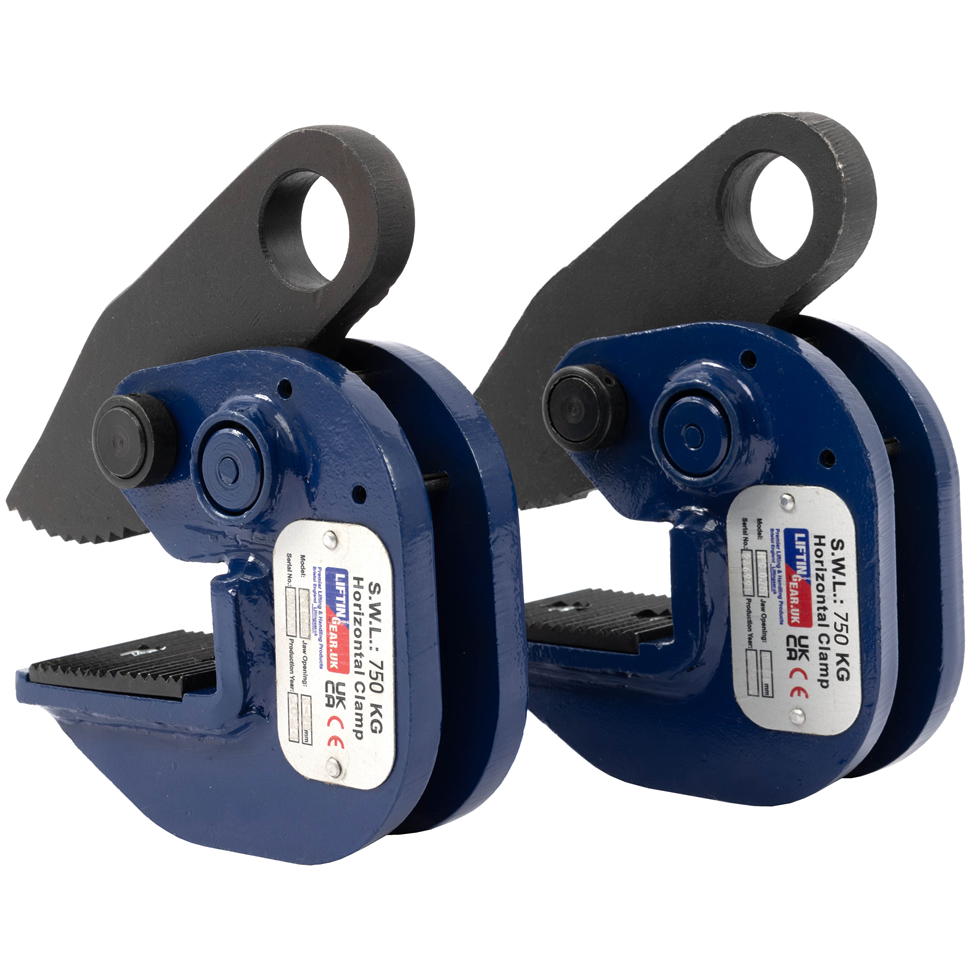

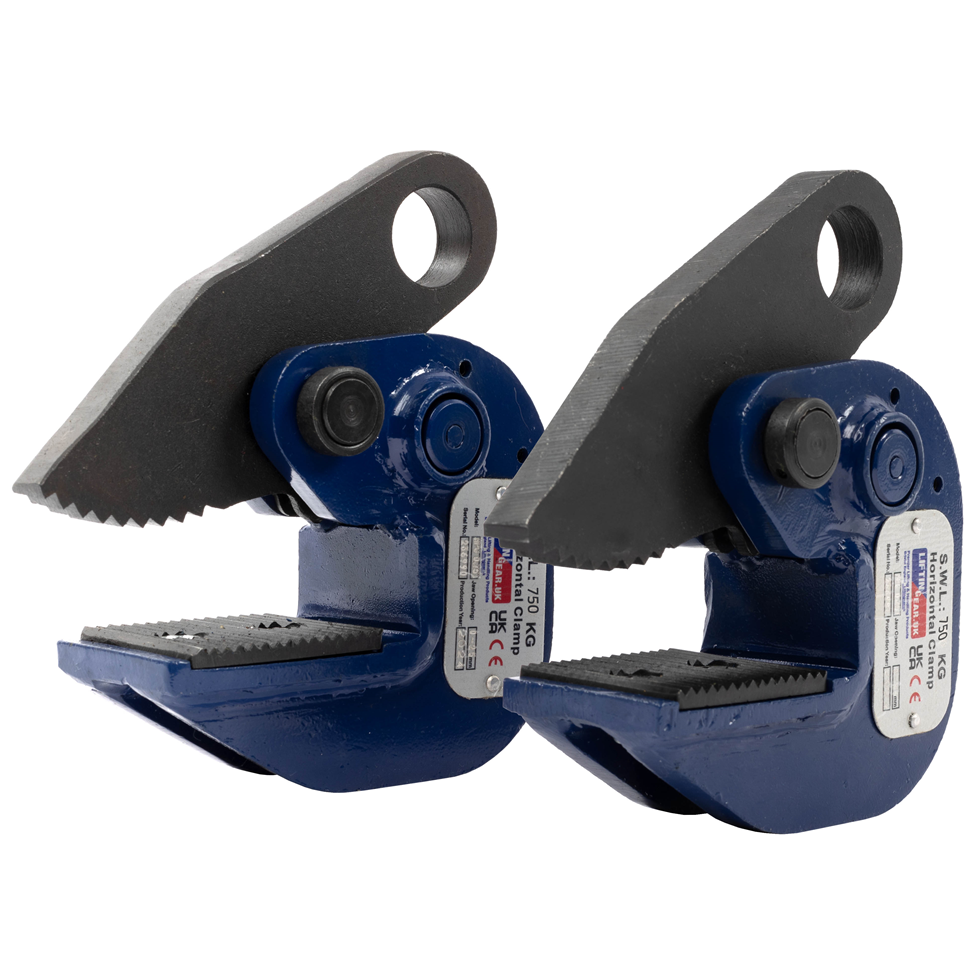

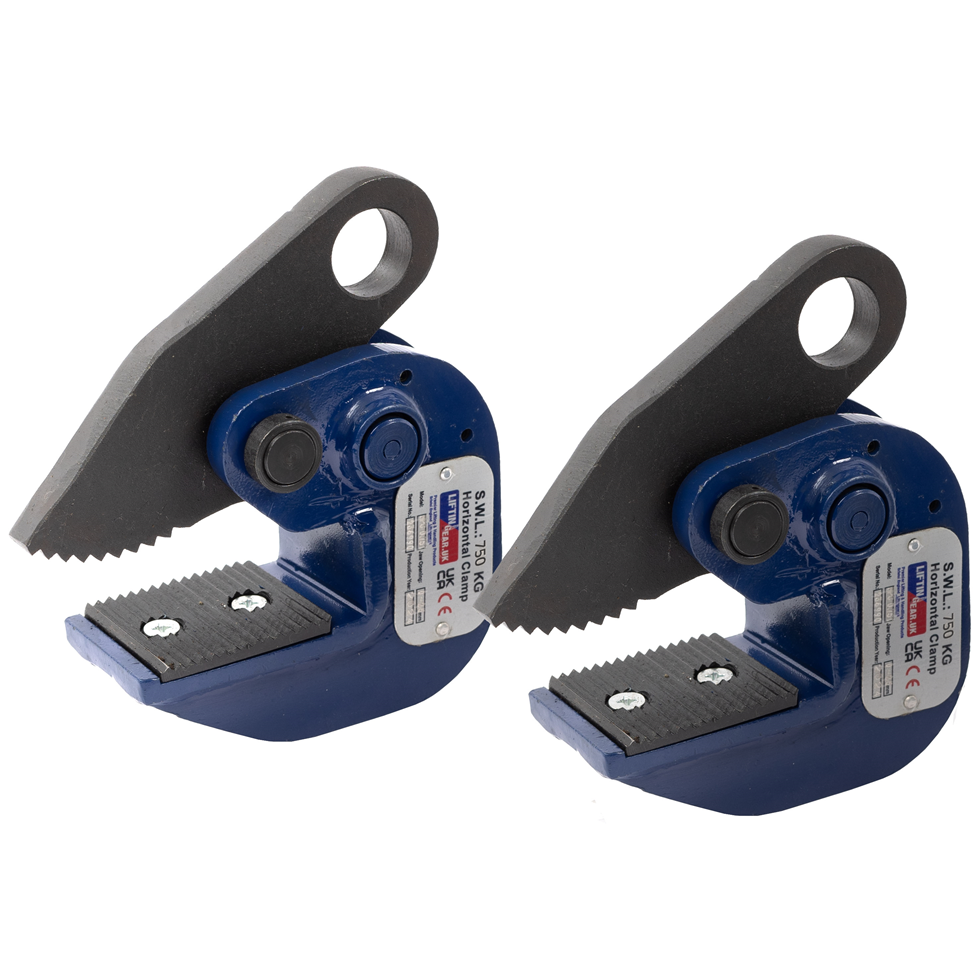

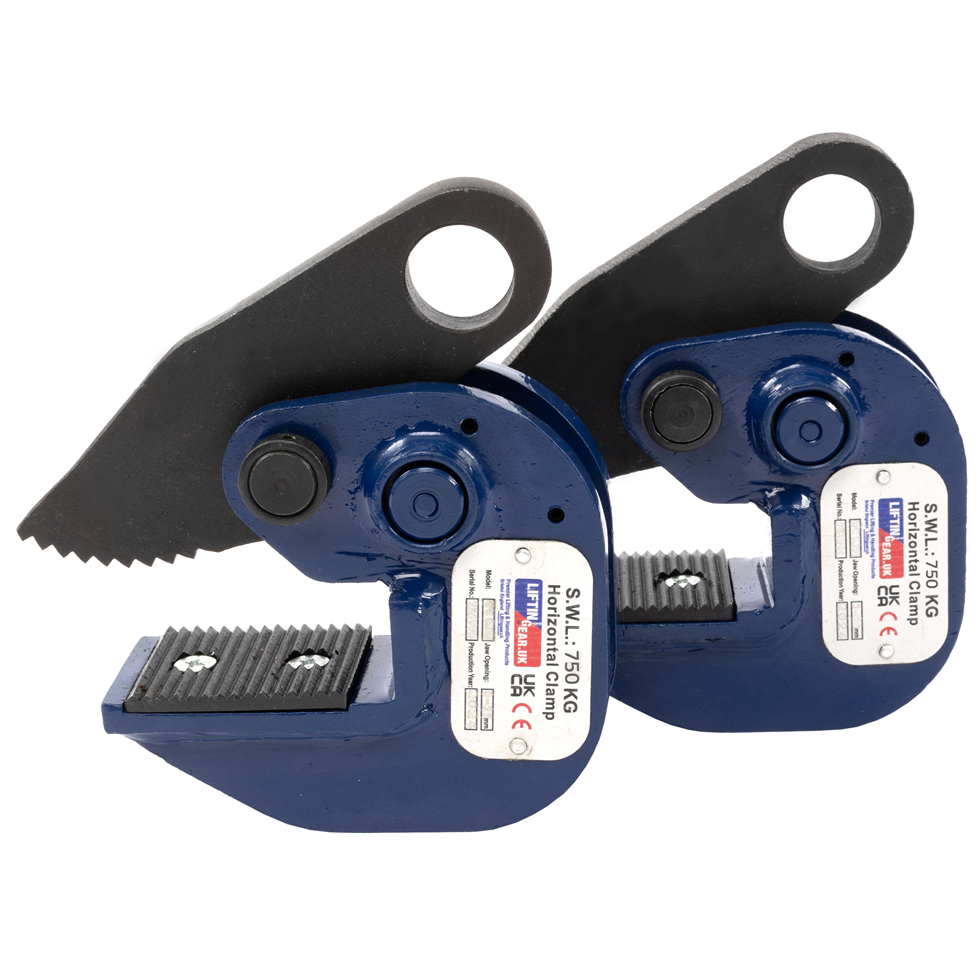

LiftinGear Horizontal Plate Clamp sizes from 1.5t to 3t (p/p)
Product Code: HPCNet Weight (Per Item): 5kg
Liftin Gear Horizontal Plate Clamps are designed for the safe and efficient lifting and handling of steel plates in a horizontal position. Supplied in pairs, these clamps are ideal for use with a two-leg Chainsling, providing a secure and stable lifting arrangement when moving and positioning plate materials
Manufactured to an industrial quality standard, the Clamps feature a built-in locking mechanism to help secure the plate during lifting, along with a simple design for quick and easy installation
Available in three lifting capacities, these Clamps offer a reliable solution for a variety of plate-handling applications
Key Features:-
- Supplied in pairs
- Designed for horizontal plate lifting using a two-leg sling
- Industrial-quality construction
- Built-in locking mechanism
- Quick and easy to install
- Available in three capacities: 1.5 tonne, 3 tonne and 5 tonne per pair
- Fully certified
- Available for hire
Specifications:-
- HPC0.75T = 1.5tonne capacity per pair, 750kg per Clamp, Jaw opening 0-25mm
- HPC1.5T = 3tonne capacity per pair, 1.5tonne per Clamp, Jaw opening 0-30mm
- HPC2.5T = 5tonne capacity per pair, 2.5tonne per Clamp, Jaw opening 0-35mm
Important: Maximum permitted sling angle is 35° from the vertical. Always ensure the clamps are correctly positioned and that the lifting arrangement is suitable for the load before use
