Hi-Force 2-way Controlled Manifold c/w 2mtr Hoses
Product Code: HF-HM2C-SU-HC2CNet Weight (Per Item): 6.4kg
Hi-Force 2-way Controlled Manifold c/w 2mtr Hoses
2-way controlled Manifold unit designed specifically to allow easy control of the direction of flow of the hydraulic fluid within a single acting system
The Manifold unit is mounted on a sturdy framework and fitted with a 0-700bar pressure gauge on each outlet port
Quick connect couplings fitted as standard to all inlet and outlet ports

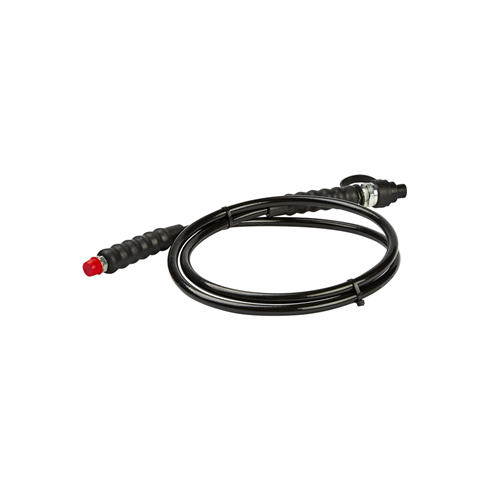

Supplied with 2x 2mtr high pressure hoses fitted with male couplers each end for quick and easy fitting to Manifold
Precise control of oil flow and pressure within the hydraulic system
Model: HM2C-SU
Width: 150mm
Height: 51mm
Depth: 51mm
Port centres: 100mm
Weight: 6.4kg

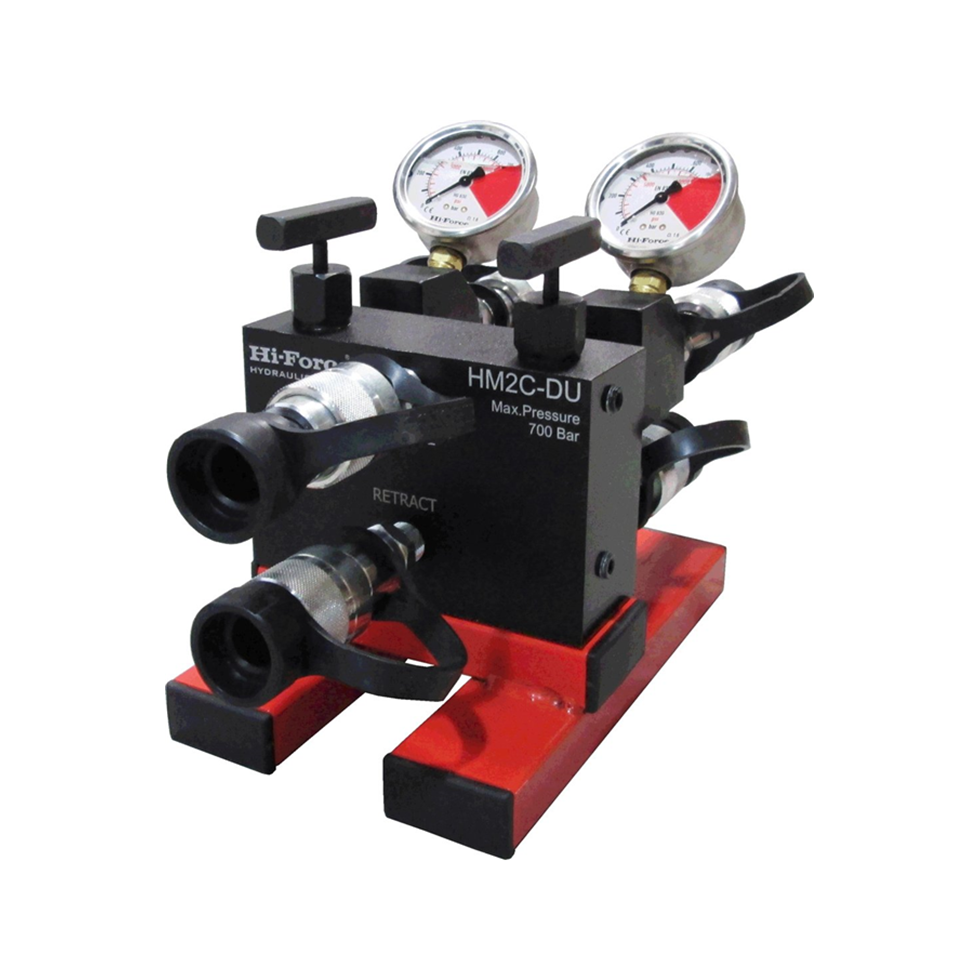

*** Please note - the picture illustrated is the double acting model, this model is the single acting version with a single inlet and outlet ports ***
Please contact us for discount on this product
