Fork Mounted Hydraulic Gritter
Product Code: IHG-1Net Weight (Per Item): 136kg
Fork Mounted Hydraulic Gritter

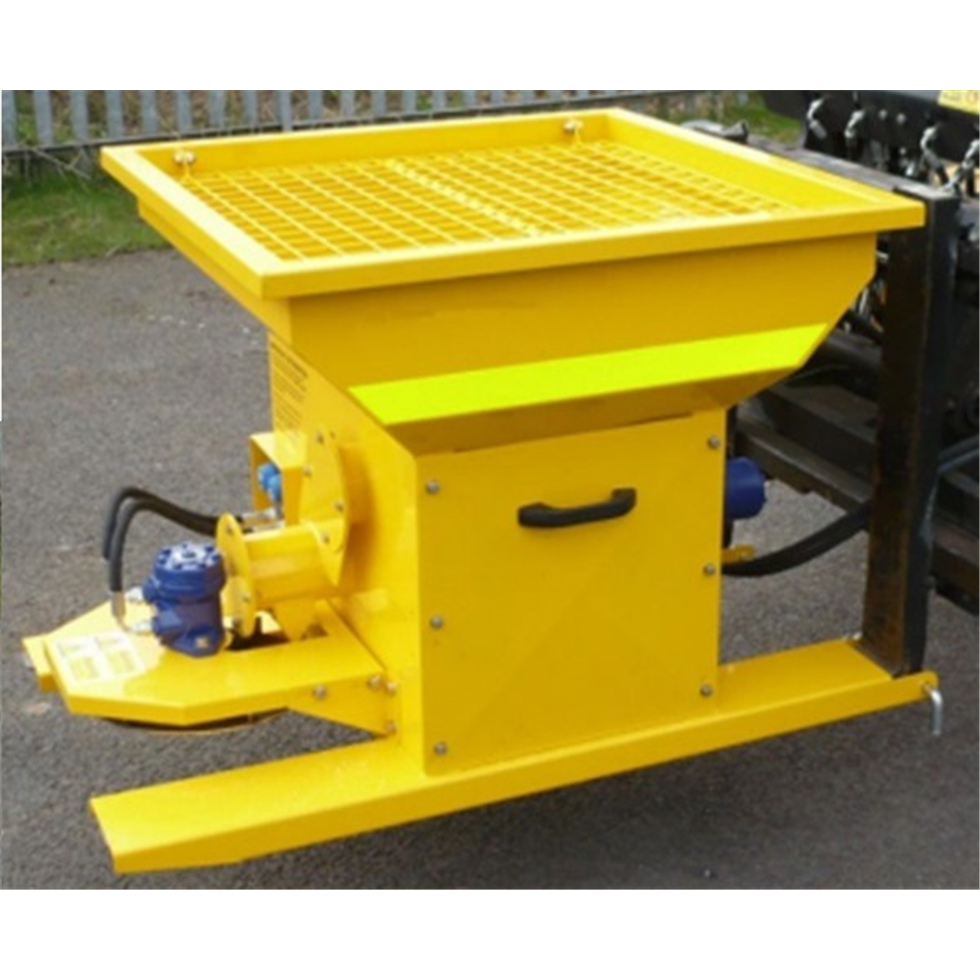

A hydraulically driven salt spreader/gritter for use with forklift trucks, with conveniently placed fork pockets which allow attachment to the lift tines in a safe and effective manner
It is hydraulically driven from the forklift truck's third service valve or side shaft valve
Front mounted gives weight to the driving wheels
Fitted with stainless steel double auger system which can spread all types of salt, wet or dry, brown or white, with a 0.2m³ hopper capacity to take approximately 250kg of salt
Specifications:-
- Model: IHG-1
- Nominal capacity: 0.20m³
- Capacity: 250kg
- Length: 1270mm
- Width: 890mm
- Height: 810mm
- C of G: 550mm
- Operating pressure: 50 Bar
- Flow: 11 LMP
- Weight: 136kg
Standard features:-
- Hydraulically driven stainless-steel disc
- Manually adjustable spread width valve from 1.3m to 9m dependant on material

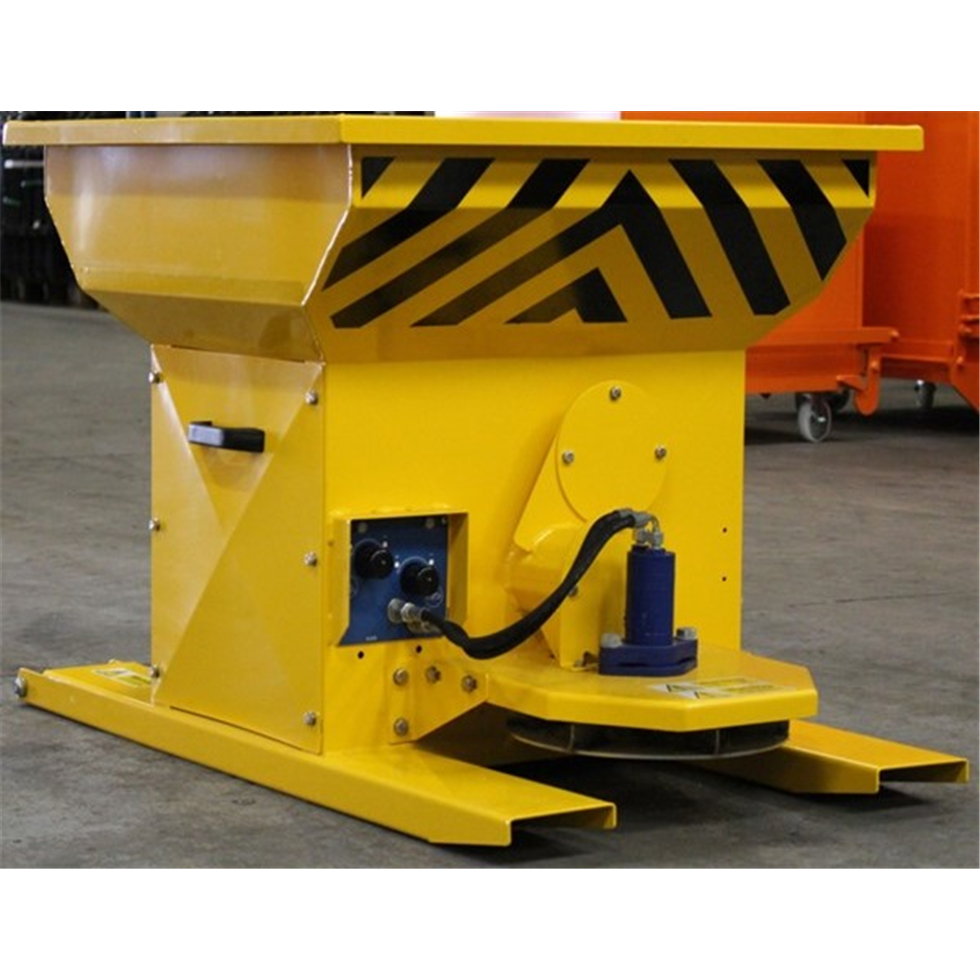

- Fluorescent markings on the side/front mounted black chevrons

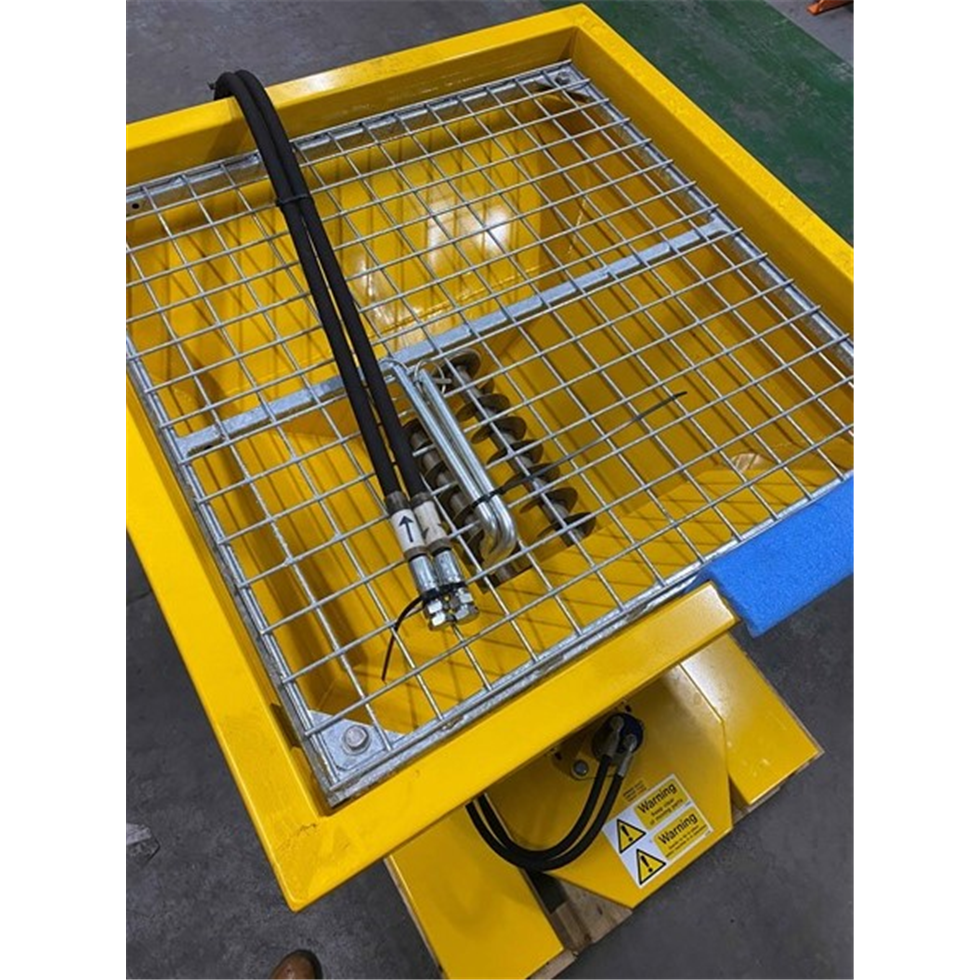

- Flat mesh top, complete with access hatch

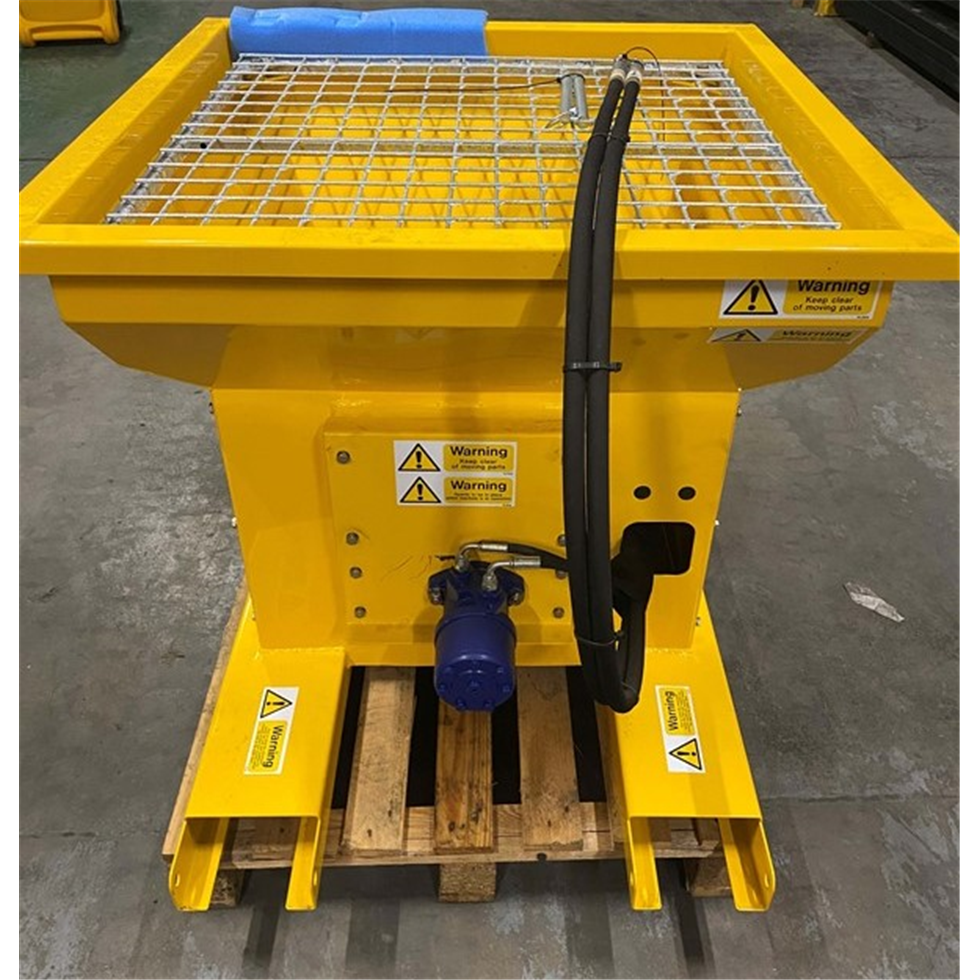

- Fork pockets with heel pins for safe mounting
- Hydraulically powered from the forklift truck's hydraulic

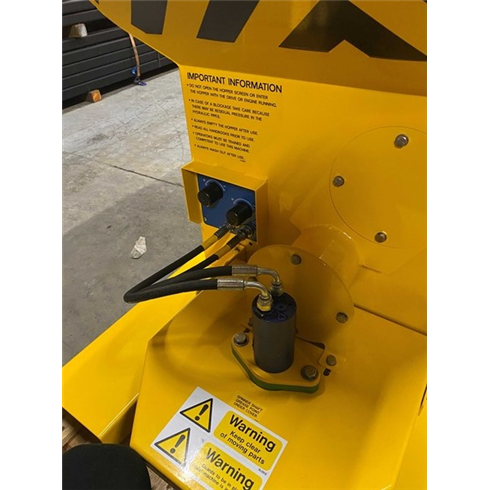

- Pressure release valve to protect attachment hydraulics
- Please note: Due to the variety of potential couplings on the Intended Forklift, the Gritter is supplied with Capped ends only
