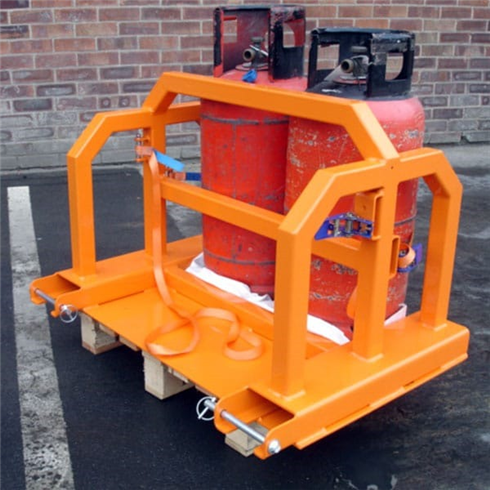

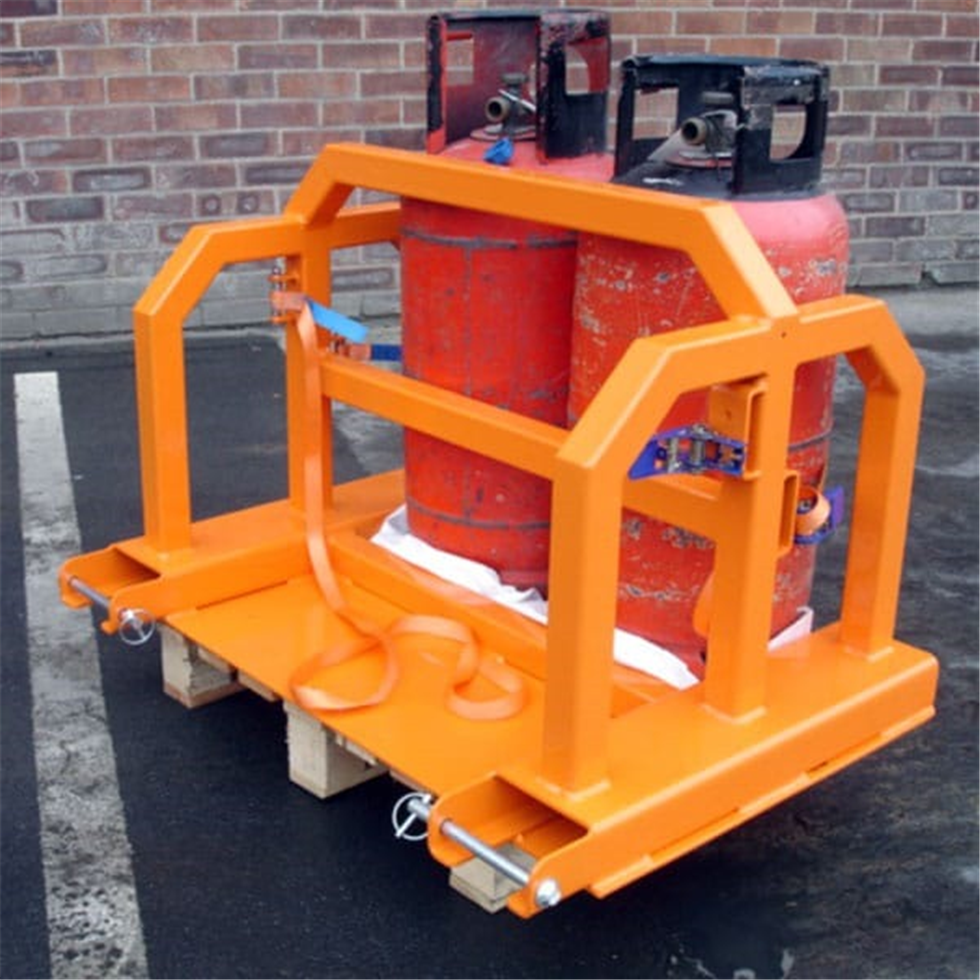

Fork Mounted Gas Bottle Carrier - Multi Bottle
Product Code: IGBH-MULTINet Weight (Per Item): 73kg
Our Fork Mounted Multi-Cylinder Gas Bottle Handler has been designed to facilitate the safe movement of various Gas Bottles of differing diameters and weights
Securely fitted to the forklift truck via heel pin retention and with very low loading height to mitigate manual handling
All bottles are restrained in place by a ratchet strap each side
Operation:-
Bottle type: Butane
- 4.5KG = 240mm Dia
- 6KG = 306mm Dia
- 7KG = 256mm Dia
- 15KG = 318mm Dia
Bottle type: Propane
- 3.9KG = 240mm Dia
- 5KG = 306mm Dia
- 6KG = 256mm Dia
- 13KG = 318mm Dia
- 19KG = 318mm Dia
Standard features:-
- Robust and Sturdy Construction
- Low Loading Height
- 2 Off Webbing Ratchet Straps for safe securing of bottles
- Maximum fork section 150 x 60 at 800mm centres
- Zinc Plated Heel Pins for safe attachment to the truck
- Painted Bright Orange for safety
Specifications:-
- Model: IGBH-MULTI
- Capacity: 500kg
- Load space (each side): 650 x 275mm
- Weight: 73kg
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 2-3 days from date of order.
