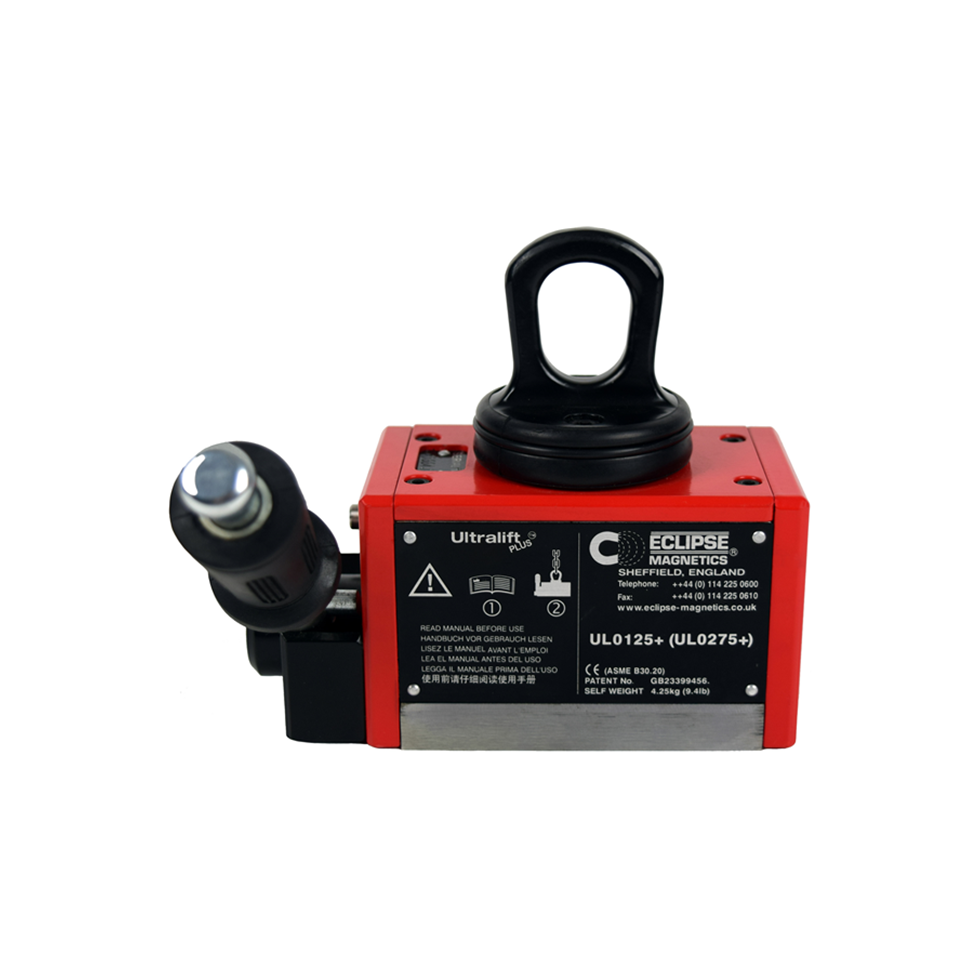

Eclipse UL0125 Ultralift PLUS 125kg Lifting Magnet
Product Code: RS-UL0125Net Weight (Per Item): 4kg
ECLIPSE UL0125+ ULTRALIFT PLUS 125kg LIFTING MAGNET
The Ultralift Plus range of manual lifters provides the safest magnetic lifting available. This range of lifters offers excellent performance to weight ratio. This is achieved using high-energy neodymium magnets, arranged in an efficient magnetic circuit, to give a superb holding force, providing a safe, reliable lift
The Ultralift Plus is the only permanently magnetic lifting magnet to be supplied with a 'safety shim'. The 'safety shim' allows the user to undertake a safety test prior to the lift. This is fast, effctive and guarantees a safe lift factor of 3:1
Safety interlock prevents the accidentally switching the magnet off. Once under load, the interlock mechanism prevents the operating handle being moved to the off position
Hand break release means the magnet can be easily released by one hand
Suitable for ferrous sheet/plate and round bar
Perfect for use in machine shops, fabrication shops, steel stockholders and steel manufacturers
Benefits:-
- Easy to install
- Simple one man operation
- No power required
- Load surface not marked
- High performance magnet material providing high performance at a lower weight
- Save space as access is only needed to the top of the load
- 3 safety mechanisms ensure safe lifting
Model: UL0125
Capacity: 125kg
Dimensions: 155mm x 69mm x 212mm
Weight: 4kg
DELIVERY TIME IS 2-3 DAYS FROM DATE OF ORDER
