DW200 A-Frame Deadweight Anchor System c/w Test Weight Trolley

DW200 A-Frame Deadweight Anchor c/w Test Weight Trolley

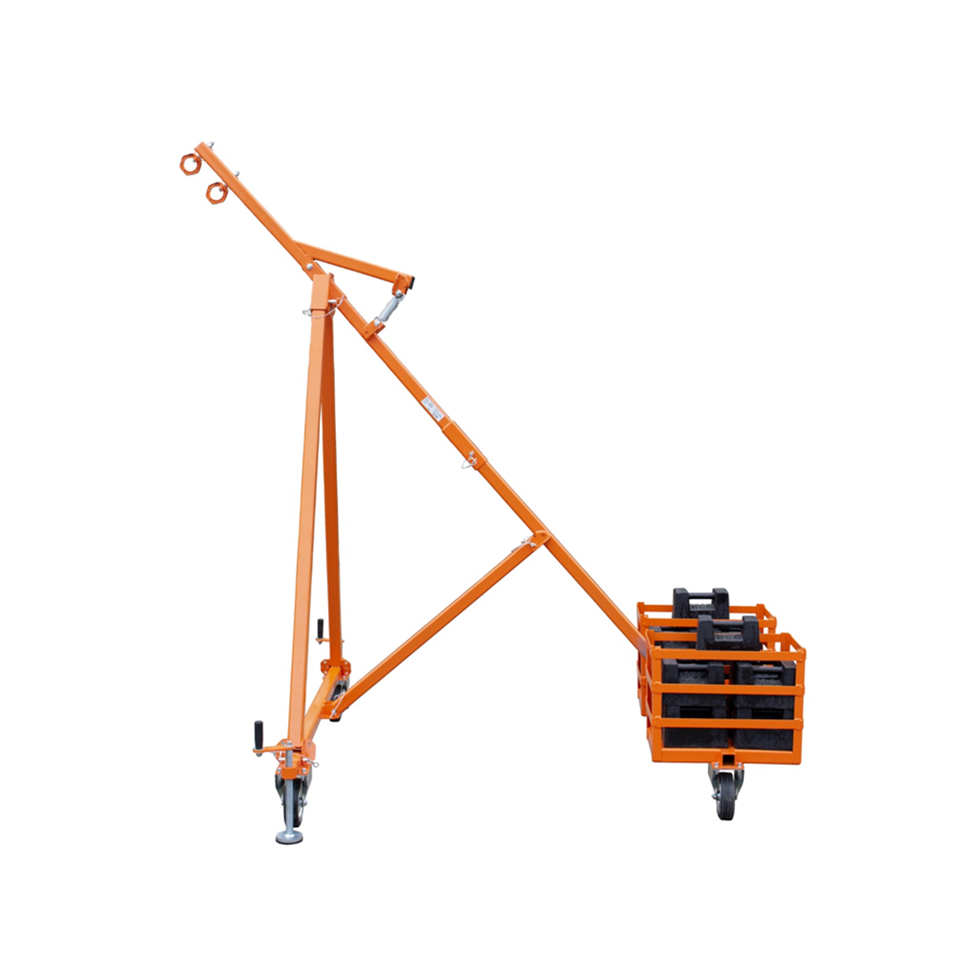

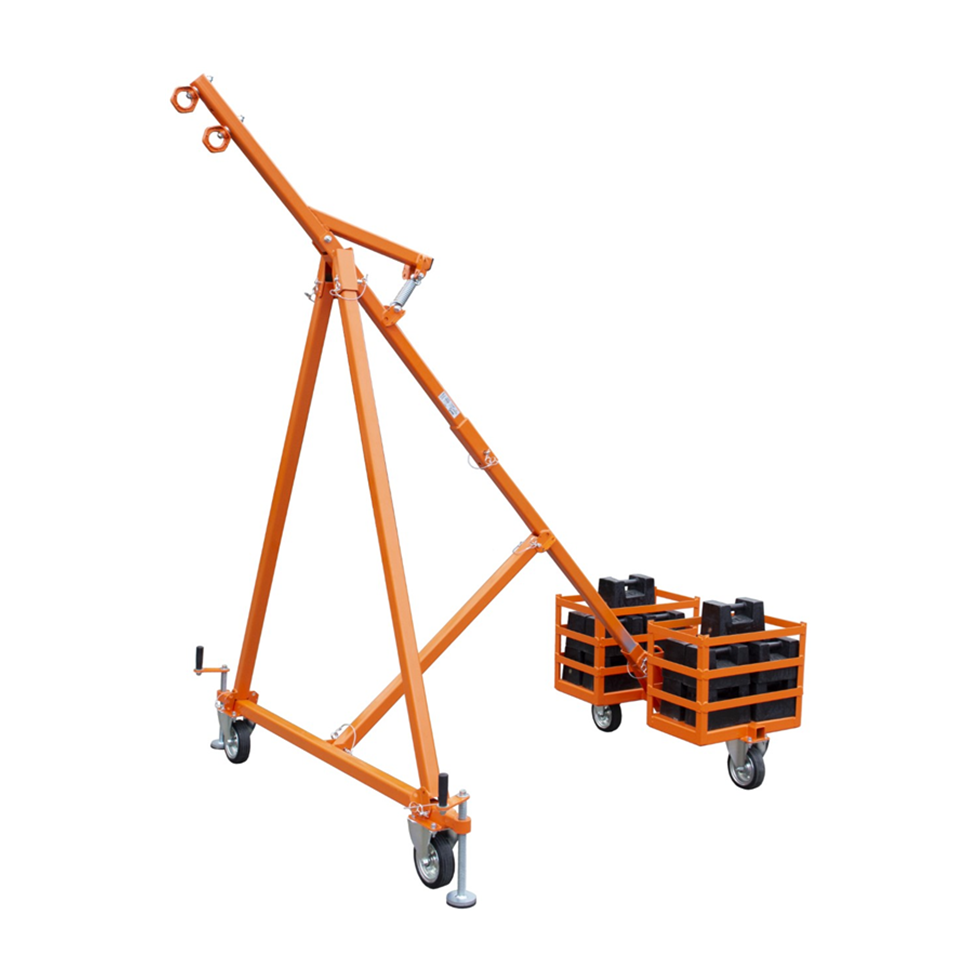

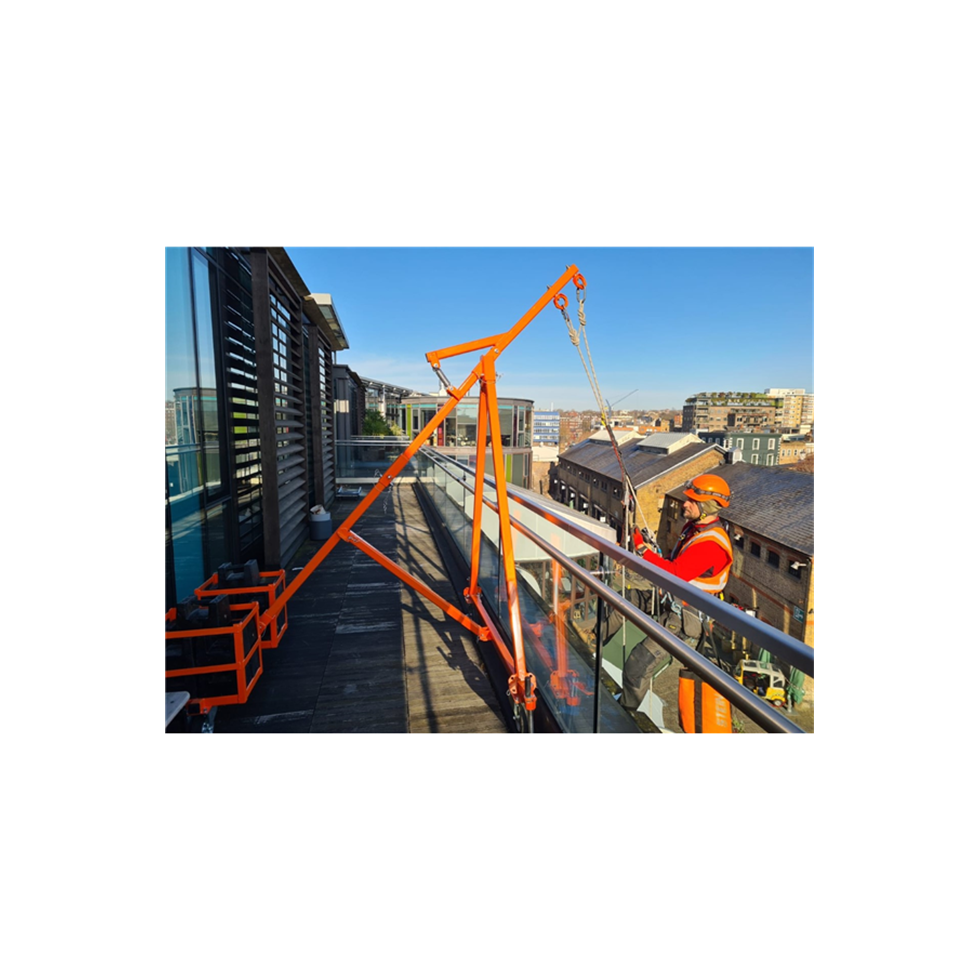

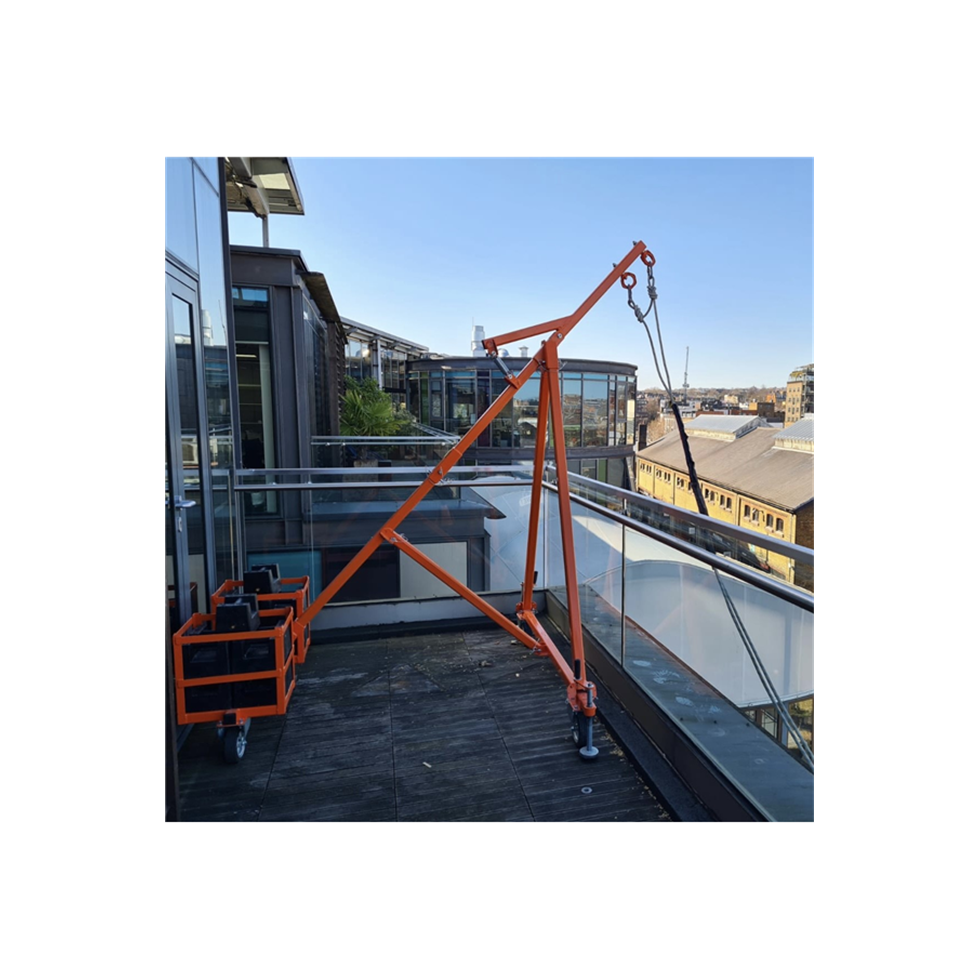

The DW200 is a cantilevered Anchor system designed for fall arrest/rope access use on flat surfaces

The A-Frame can be moved sideways via fixed position castor wheels, therefore saving job time by reducing the need for disassembly and re-rigging

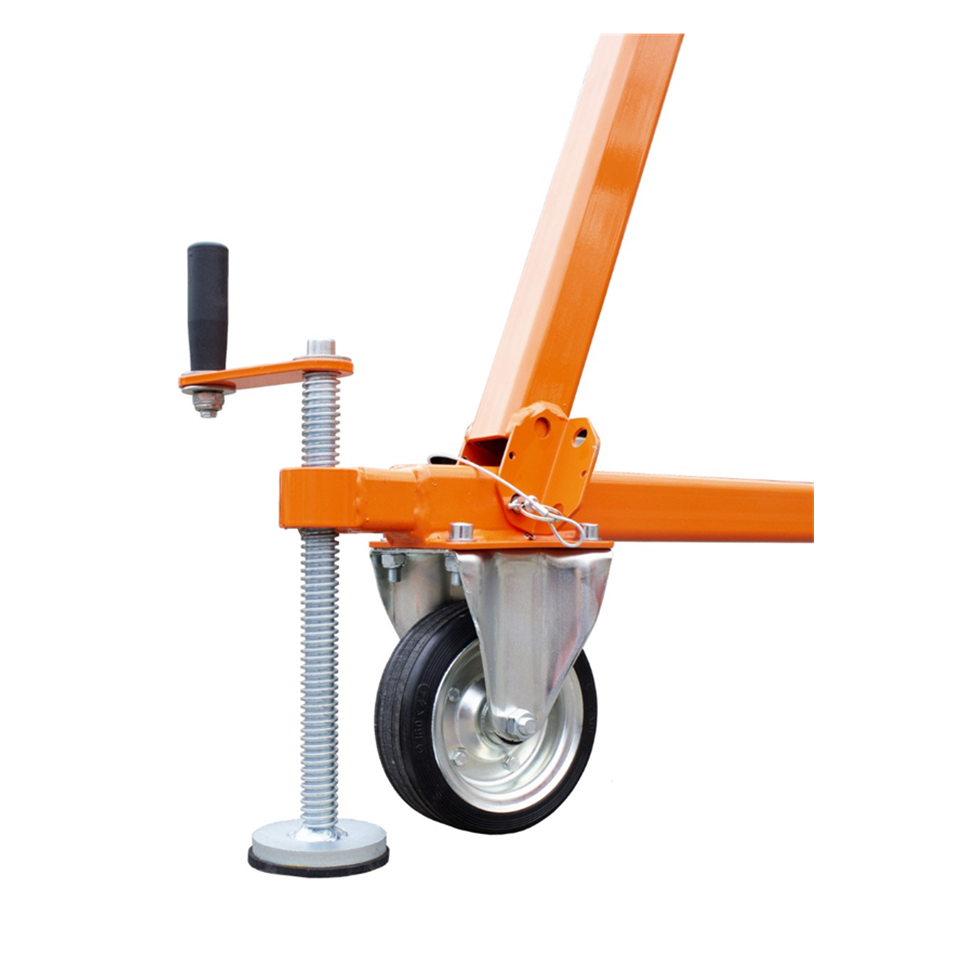

Screw down parking jacks prevent unwanted lateral movement of the A-Frame

The A-Frame is equipped with an Energy Absorber

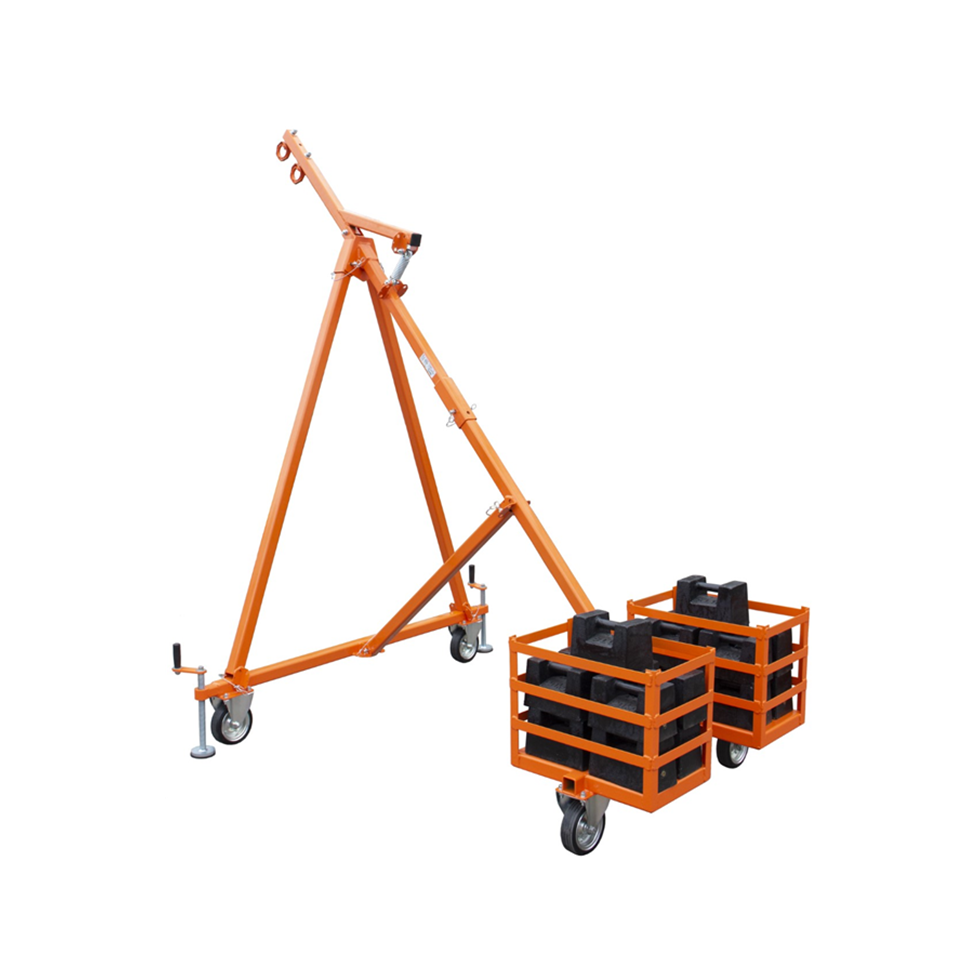

Supplied with Test Weight Trolley + 20kg Test Weights

Fall Arrest Protection In accordance with EN795:2012 and CEN/TS 16415 (2 users) = 16 x 20kg weights

Rope access use in accordance with IRATA ICOP (15kN) = 18 x 20kg weights

Height of A-Frame: 2486mm

Width of front beam: 1766mm

Length: 2420mm

Weight of A-Frame & Trolley: 59.5kg

Conforms to EN795 Type B, CEN/TS 16415, IRATA ICOP (when used with the correct counterweight – See table 2 within the datasheet)
