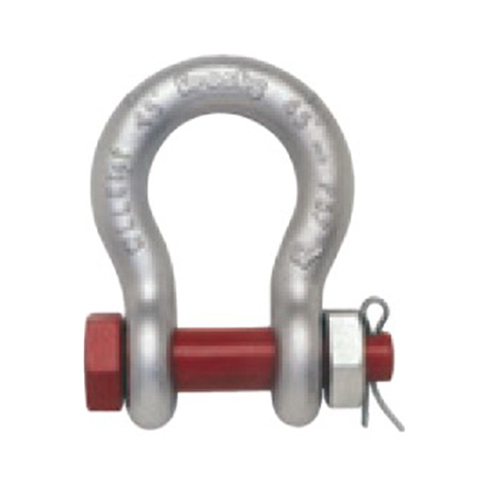

Crosby G-2130OC 3.25ton Safety Pin Alloy Bow Shackle

Crosby G-2130OC 3.25ton Safety Pin Alloy Bow Shackle

Bolt type Anchor Shackle with thin head bolt - nut with cotter pin

Grade 6 high tensile steel, quenched and tempered

G-209 Screw Pin Shackles meet the performance requirements of Federal Specifications RR-C-271F Type IVA, Grade A, Class 3 except for those provisions required of the contractor

Hot dipped Galvanised

Working load limit and grade "6" permanently shown on every Shackle

Look for the Red Pin.....the mark of genuine Crosby quality

Part number: 1262013

WLL: 3.25ton

Pin diameter: 19.6mm

Jaw width: 27mm

Internal length: 60.5mm

Weight: 0.72kg

Fully certified
