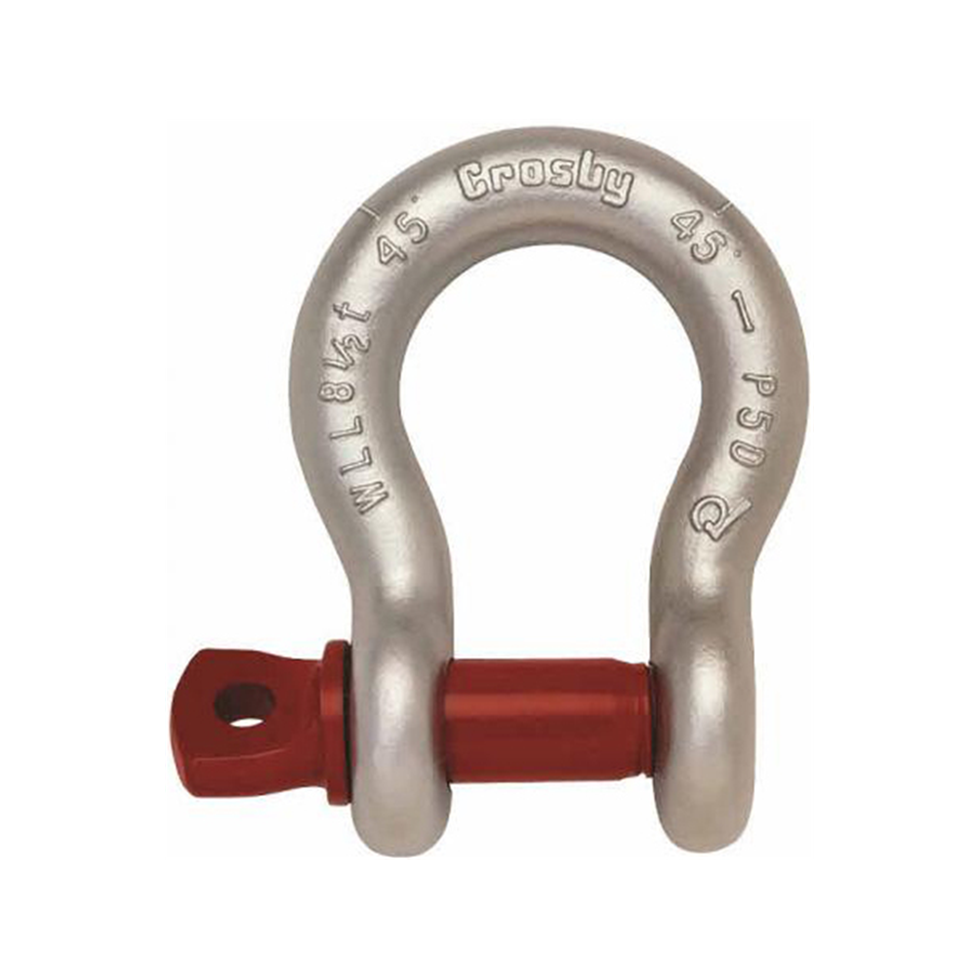

Crosby G-209 1ton Screw Pin Alloy Bow Shackle

Crosby G-209 1ton Screw Pin Alloy Bow Shackle

Grade 6 high tensile steel, quenched and tempered

G-209 Screw Pin Shackles meet the performance requirements of Federal Specifications RR-C-271F Type IVA, Grade A, Class 2 except for those provisions required of the contractor

Hot dipped Galvanised

Working load limit and grade "6" permanently shown on every Shackle

Look for the Red Pin.....the mark of genuine Crosby quality

Part number: 1018419

WLL: 1ton

Pin diameter: 11.2mm

Jaw width: 16.8mm

Internal length: 36.6mm

Weight: 0.14kg

Fully certified
