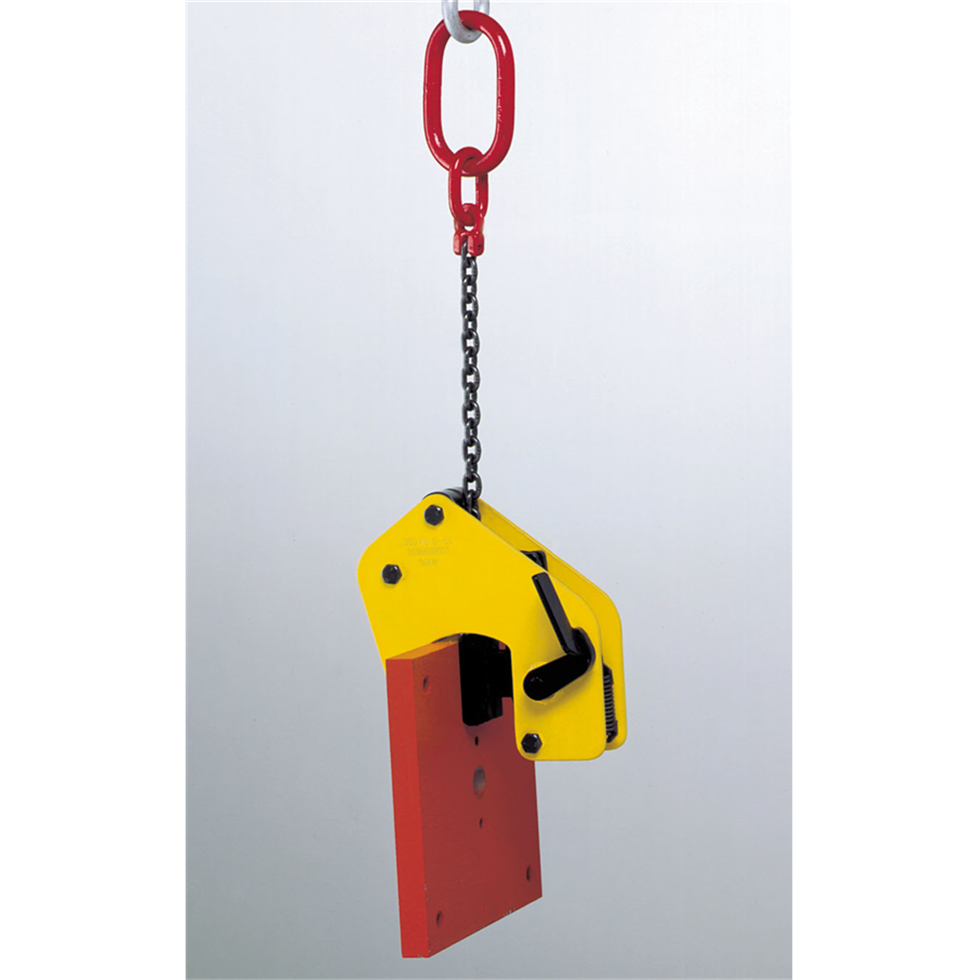

CAMLOK TSB Non-Marking 'Friction' Plate Clamps

CAMLOK TSB Non-Marking 'Friction' Plate Clamps

The TSB non-marking Plate Clamps with Chain are designed for vertical lifting and transporting of plate materials.  This particular range of Clamps has a large jaw capacity that enables it to be used on a multitude of applications

The main feature of the TSB Plate Clamp is the fact that it is non-marking.  It works through the process of 'friction'.  This is achieved by a special material on the jaw and pad which is similar to brake linings

Another benefit of the TSB is that one grab can be used for lifting different materials such as concrete, wood, stone and hardened steel

NB: The surface of the material being gripped must be free of oil, grease or any other liquid to ensure safe transport

Available in two different models:-

• TSB750/65 (40-750kg WLL)
• TSB1250-65 (125-1250kg WLL)

​Jaw capacity: 0-65mm

See attached data sheet for dimensions

Please note price is per Clamp

Fully tested and certified

MADE IN THE UK

DELIVERY IS 3-4 WEEKS FROM DATE OF ORDER
