CAMLOK TKG5.0VHS 5000kg Self Weight Balance Crane Forks

CAMLOK TKG5.0VHS 5000kg Self Weight Balance Crane Forks

Product Code: CM-TKG5.0VHS
Net Weight (Per Item): 380kg
CAMLOK

Pricing:

SRP
£2,878.53
Trade Price
Login
Qty:

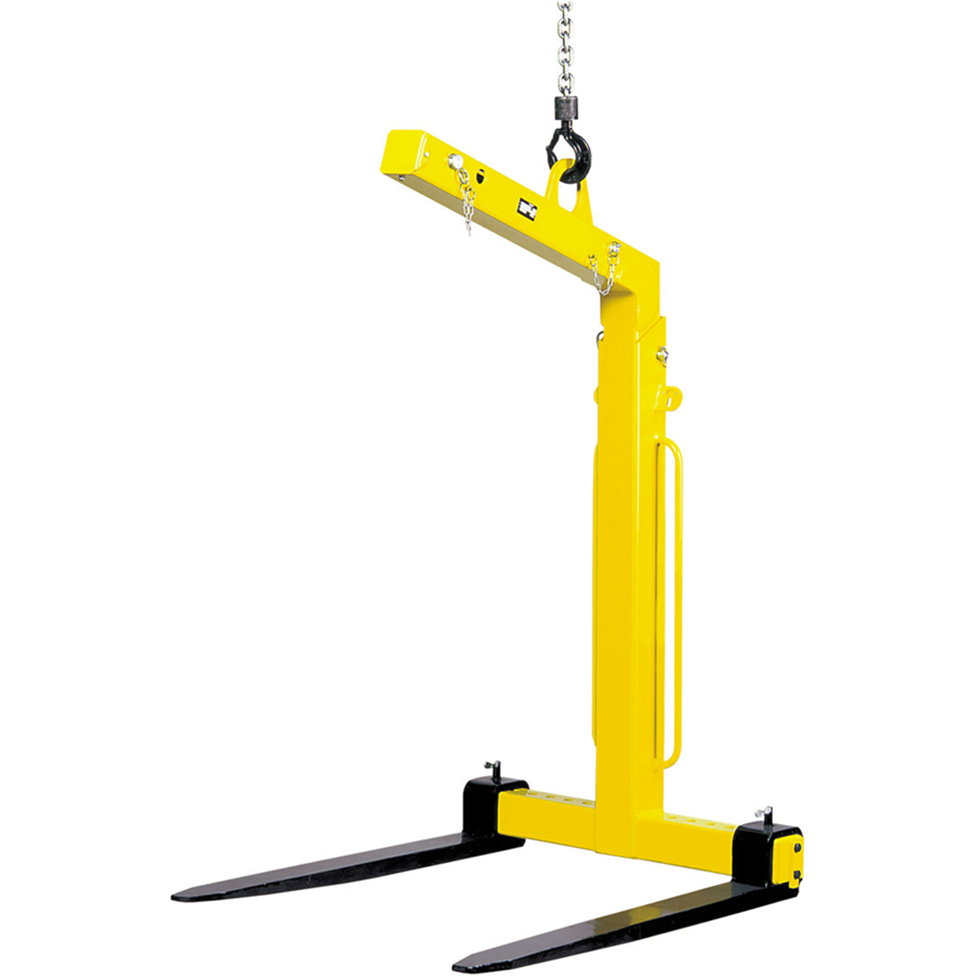

CAMLOK TKG5.0VHS 5000kg Self Weight Balance Crane Forks

The TKG-VHS range of Crane Forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system

Crane Forks with self weight balancing tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines

The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down

For efficient operation of this mechanism the load be greater than 20% of the working load limit

  • Factor of safety 4:1
  • Maintenance free
  • Highly visible safety colour
  • For transporting rings or coils, simply push fork tines together
  • Easily adjustable tines for all pallet sizes
  • Supplied with chain for securing the load

Model: TKG5.0VHS

WLL: 1000-5000kg

Adjustment of tines: 500-1000mm

Useable height: 1300-2000mm

Length of tines: 1000mm

Section of tines: 150x60mm

Overall height: 1710-2410mm

Weight: 380kg

DELIVERY IS 7-10 DAYS FROM DATE OF ORDER

*Specifications and prices may change from time to time so please confirm before placing your order.
