CAMLOK PP Pile Pulling Clamps 3000kg & 8000kg

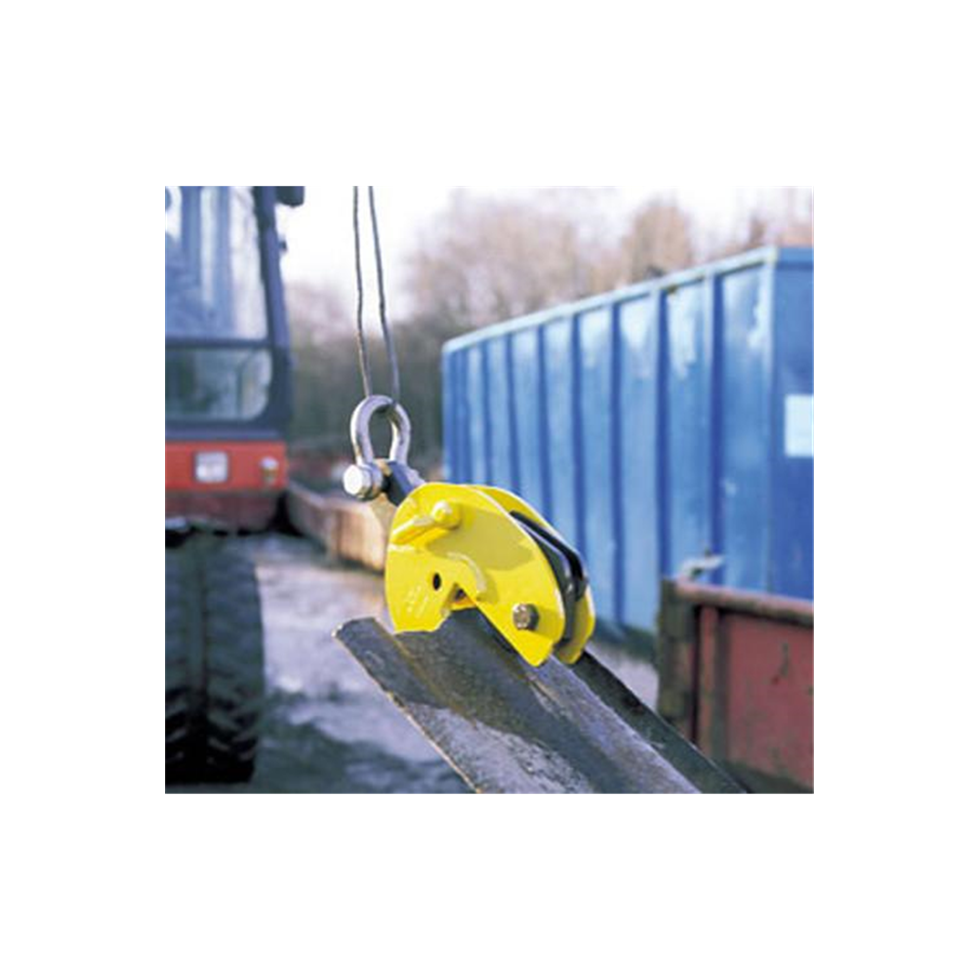

Camlok PP Pile Pulling Clamp

The PP Pile Pulling Clamps are designed to pull out driven piles or trench shielding

The Clamps have a narrow opening and a deep slot to ensure that the pile is gripped firmly.  It is extremely difficult to determine the forces required to pull out driven piles so it is recommended that a load indicator is used to ensure the WLL of the Clamp is not exceeded

The PP Clamp is supplied as standard with a double locking mechanism to ensure that the Clamp remains 'locked on' and cannot become unlocked during the extraction of the pile

Available in 3000kg & 8000kg capacity

Model PP3

• WLL: 3000kg
• Jaw capacity: 0-16mm
• Throat depth: 147mm
• Weight: 12kg

Model PP8

• WLL: 8000kg
• Jaw capacity: 0-30mm
• Throat depth: 194mm
• Weight: 28kg

Fully tested and certified

MADE IN THE UK

DELIVERY IS 4-5 WEEKS FROM DATE OF ORDER
