CAMLOK BTG Concrete Pipe Lifting Clamps 1500kg
Product Code: CM-BTG1500/3Net Weight (Per Item): 34kg

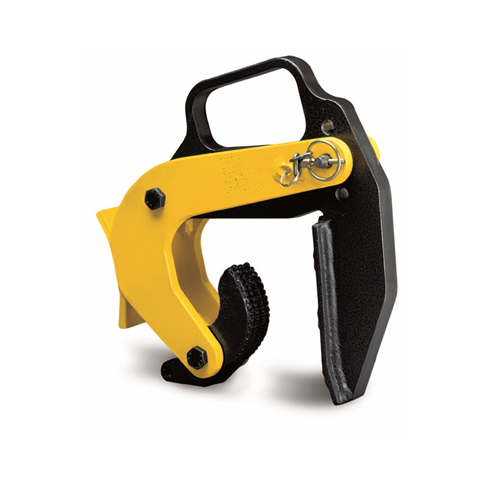

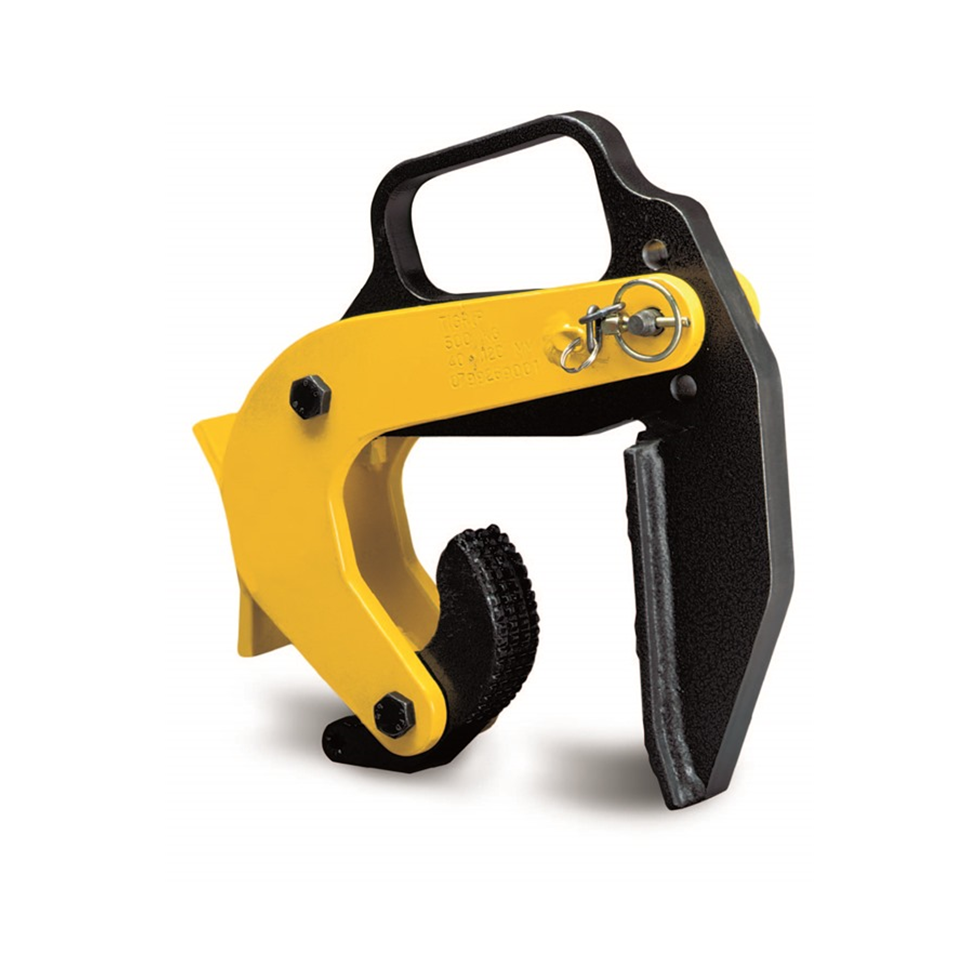

CAMLOK BTG Concrete Pipe Lifting Clamps 1500kg
The BTG Concrete Pipe Lifting Clamps are sold in sets of three, and they come complete with a 3-legged Chainsling (the working load limits shown are based on a set of three Clamps)

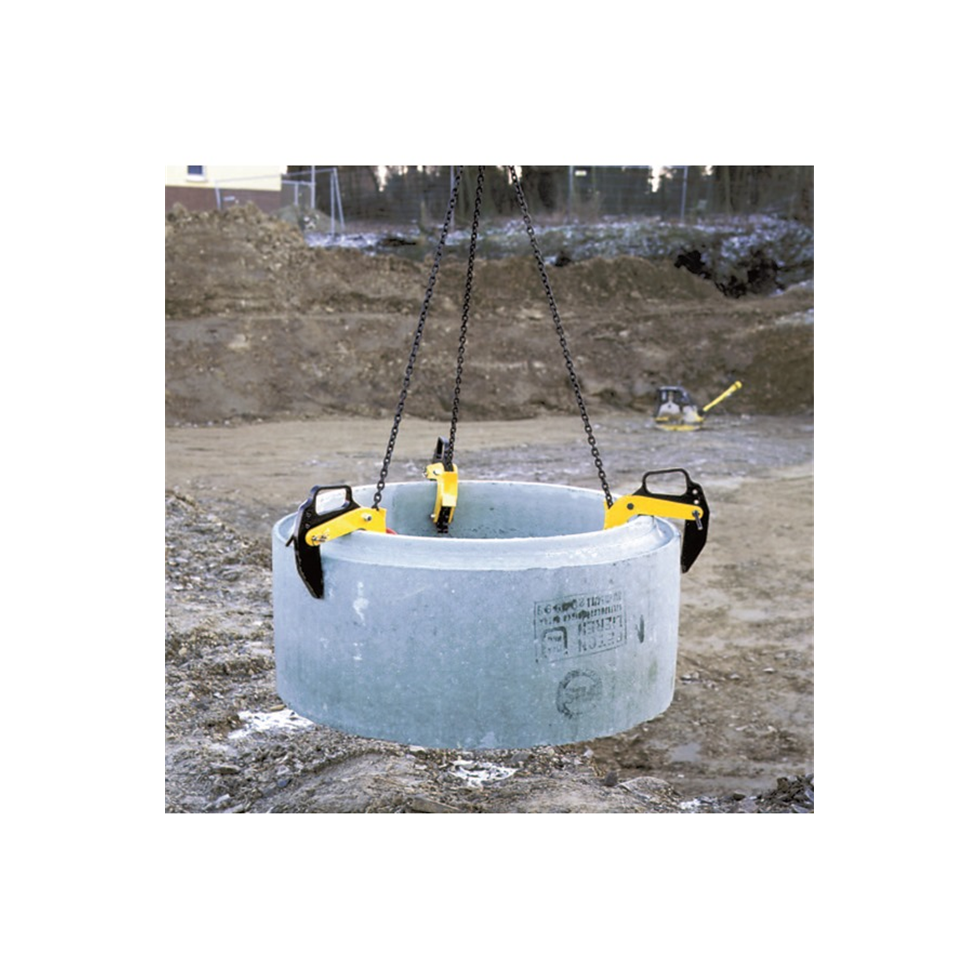

They are designed for the vertical transportation of concrete pipe sections with a diameter of up to 2000mm
Attachment and removal of the Clamps from the pipes is extremely easy due to the simple and straightforward design
For concrete pipes according to DIN 4034
Features:-
- Solid design
- Safety factor 4:1
- Simple and safe handling
- Large jaw capacity
- Service friendly
- For the toughest operating conditions
Specifications:-
- Model: BTG1500/3
- WLL: 1500kg (based on set of three Clamps)
- Jaw capacity: 40-120mm
- Mouth depth: 165mm
- Pressure line: 100mm
- Chain diameter: 6mm
- Total weight: 34kg
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 3-4 weeks from date of order.
