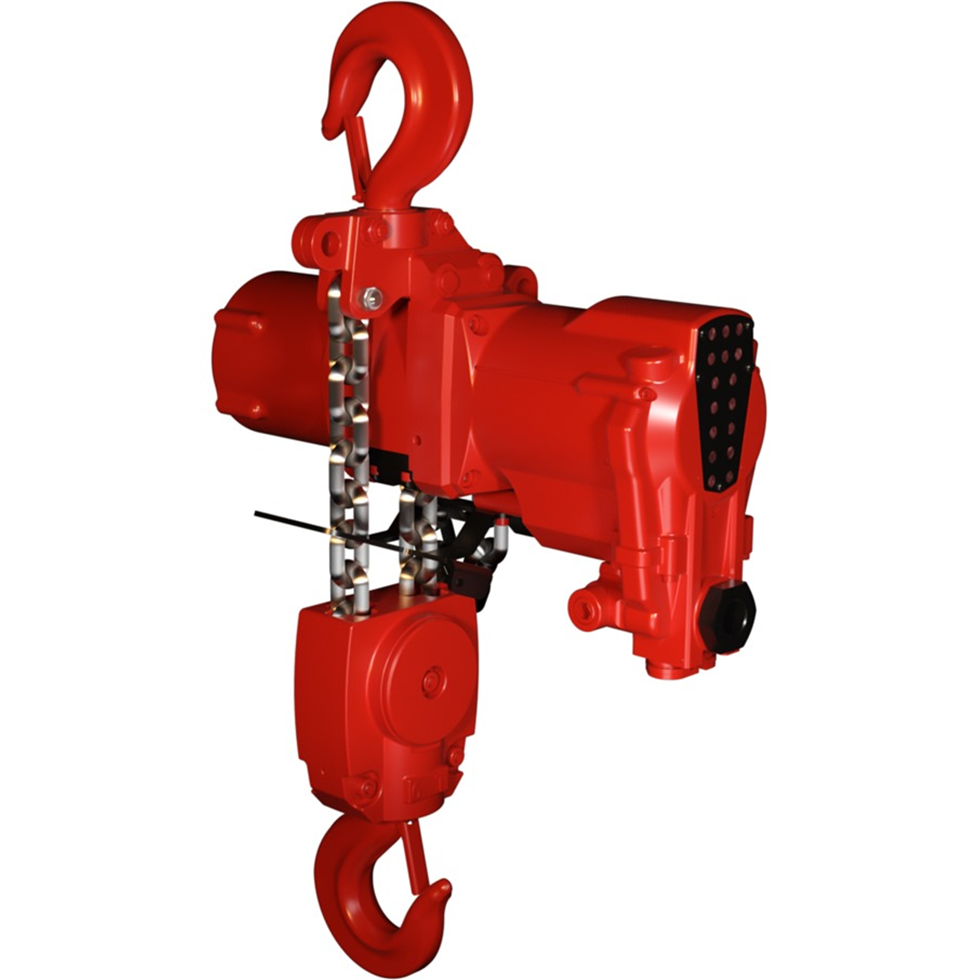

6000kg Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

The new Red Rooster Lifting TMH series Air Hoists have the highest lifting speed with the lowest headroom on the hoist market

With the high M4 classification of mechanism (ISO 430-1) this high speed Air Hoist is extremely durable and will guarantee the continuity of your process

The TMH Hoists are designed to operate at full lifting capacity with an air pressure from 4-6.3bar (for full speed operation the hoist air pressure should be 6.3bar)

The Hoist is operated by cord control which is attached to a bracket on the Hoist valve

ATEX zone 2 specification

Lifting heights: 3mtr to 10mtr (please contact us for custom lifting heights)

1" Filter lubricator regulator c/w gauge must be used and can be supplied extra (please contact us for a price)

Standard features

• Toku rotary vane motor
• Robust 3 step planetary gearbox
• Failsafe automatic internal disc brake
• Mechanical upper and lower switches
• Cast steel housing
• Internal silencing down to 80 dB(A)
• Alloy safety swivel hooks with safety catch
• Load chain 13x36mm of European manufacture to EN818-7
• Automatic load limiter
• Model: TMH-6000/2
• Lifting capacity: 6000kg
• Chain falls: 2
• Lifting speed with load: 2.7m/min
• Lifting speed without load: 5.4m/min
• Lowering speed with load: 5.1m/min
• Working pressure: 4 - 6 Bar
• Weight with 3mtr lifting height: 124kg
• Additional weight per metre: 7.6kg
• Galvanised chain collector included
• Fully certified

Available options

• Marine specification
• Special paint systems
• Corrosion protection
• Pendant control
• Filter lubricator

Delivery Information

• This product is supplied directly from our Manufacturer Partner.
• Delivery of this product is 4-5 days from date of order.
