550kg Counter-balance Floor Crane
Product Code: CBFCNet Weight (Per Item): 530kg

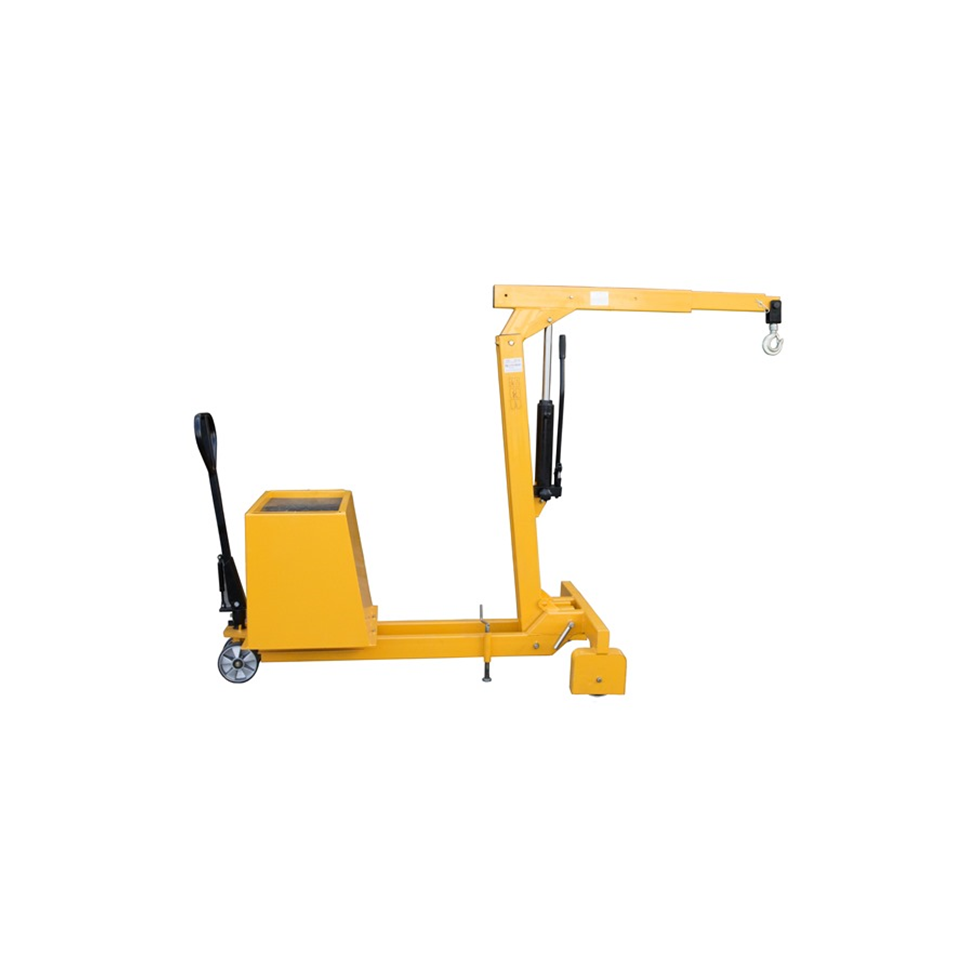

LIFTINGEAR 550kg Counter-balance Floor Crane
Counter-balanced Floor Cranes are really useful in machine shops and other manufacturing environments where access is restricted by floor level objects
It also has the added advantage of not having the extending legs that protude out to the front. This design overcomes the problem of lifting loads that are sitting on the floor without any footing room
The Floor Crane has 5x variable capacity settings along different positions on the telescopic jib:-
- POSITION 1 = 550kg
- POSITION 2 = 400kg
- POSITION 3 = 300kg
- POSITION 4 = 220kg
- POSITION 5 = 150kg
KEY FEATURES
- Heavy duty design and build
- Fitted with heavy duty steer wheels and rear wheels
- Double acting Hydraulic Pump unit fitted with pressure relief valve to prevent overloading
- Heavy duty Swivel Hook with Safety Catch

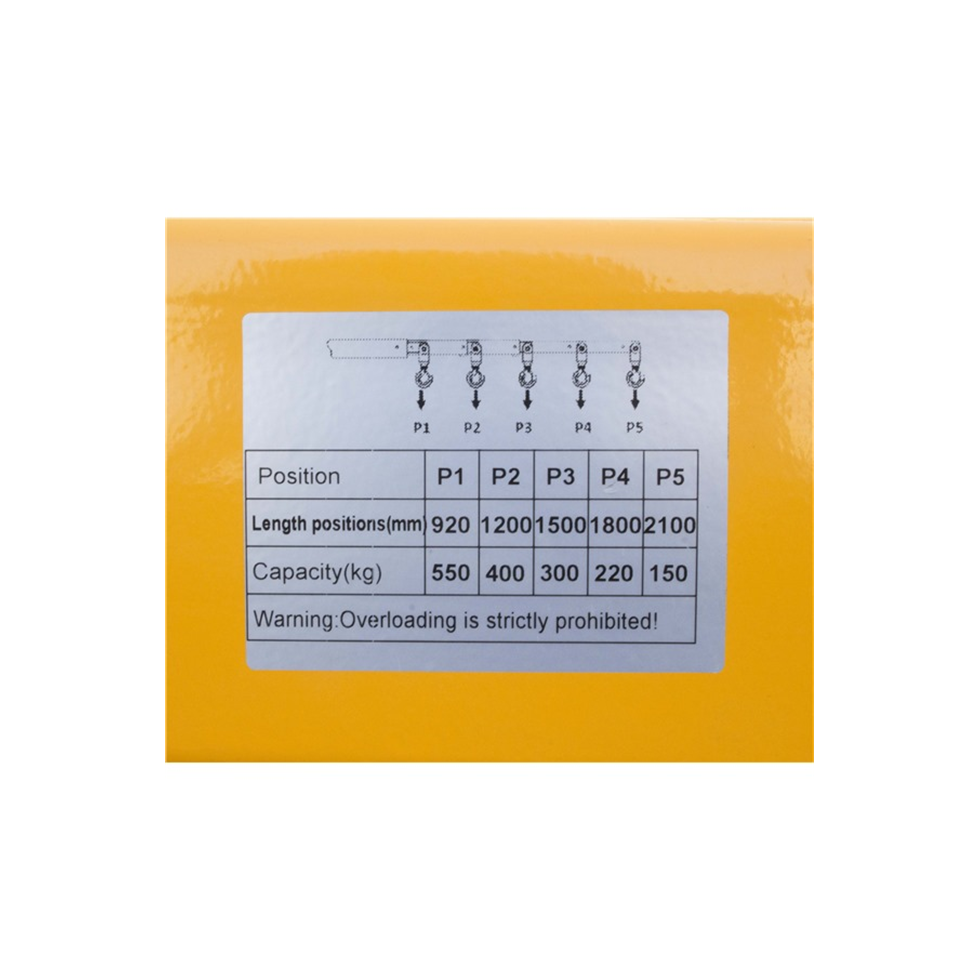

- 5 variable capacity settings (see loading chart for more details)
- 5 position telescopic jib
- Easily removable weights (supplied)
- Extremely easy to manoeuvre
- Weight of unit without counter-balance weights: 230kg
- Weight of unit with counter-balance weights: 530kg
- Fully tested and certified
- Available for hire at competitive rates
Delivery Information
- This product is supplied directly from our Manufacturer Partner.
- Delivery of this product is 24h from date of order.
