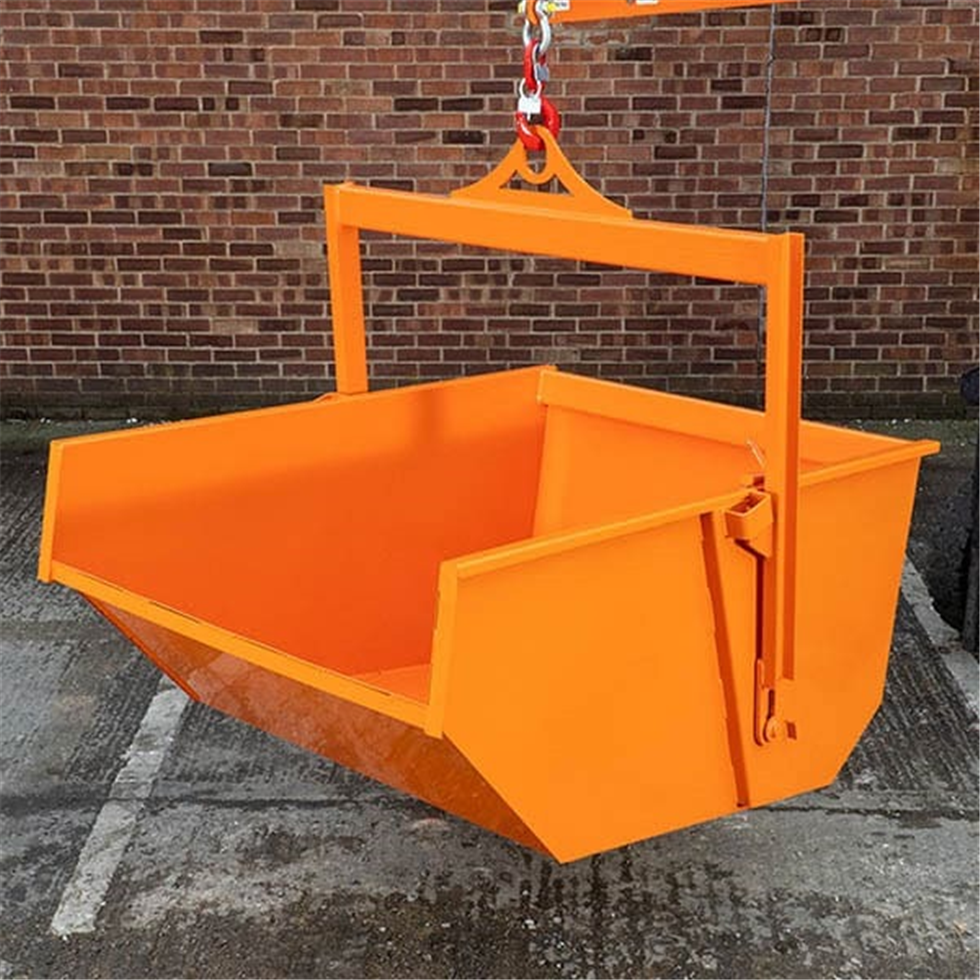

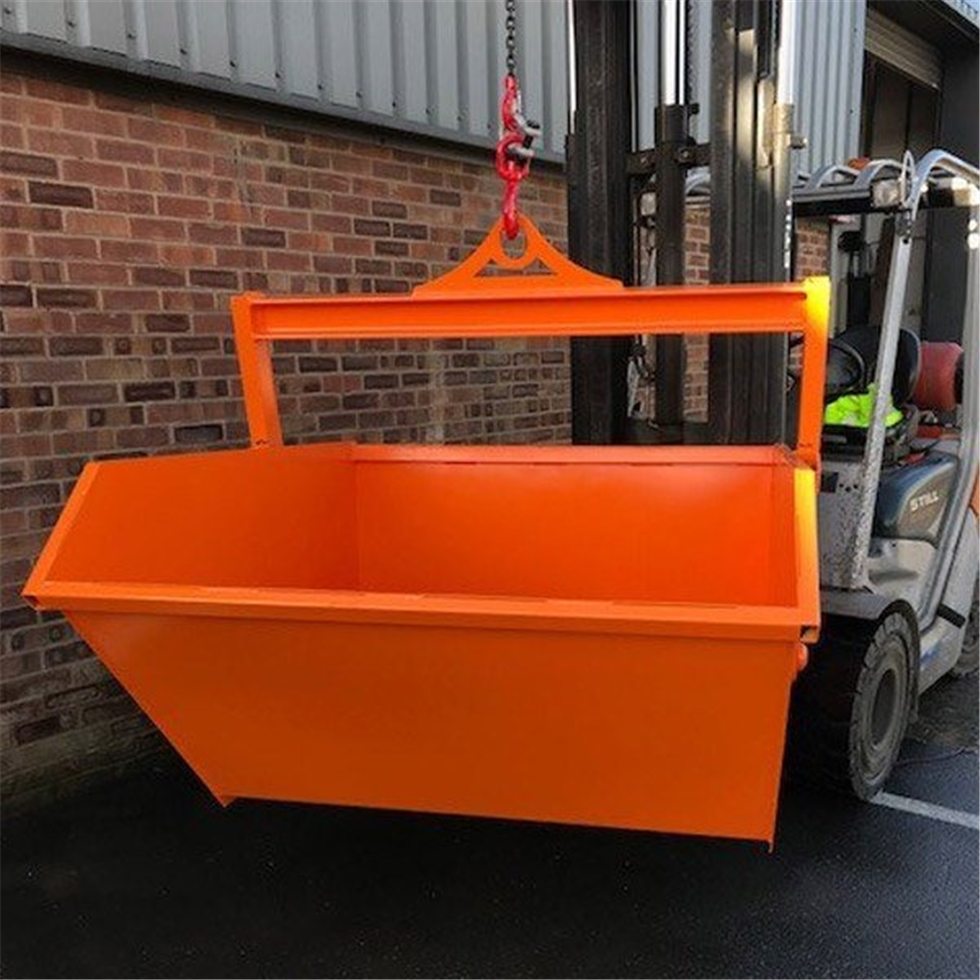

500ltr Crane Slung Boat Skip
Product Code: IBS-500Net Weight (Per Item): 100kg

Our Boat Skips include a specific self-dumping system. They are ideal for moving goods and building materials on site, such as cement. These high-quality skips perform efficiently and safely. They are lifted and emptied automatically without the need for any assistance, which eliminates the risk of danger to the personnel or operative. Our robust manufacturing ensures the skips suit the condition and environment in which they work
Operation:-
- Position lifting hook into position directly above lifting point on boat skip
- Secure lifting hook into lifting eye on attachment & ensure hook is full engaged
- Ensure bale arm is in the locked position via the side bolt
- Prepare to take load, ensuring shark fin is engaged in its keep before carrying out the lift
- The attachment is now ready to carry out the lift
- Once the load is ready to be emptied placed on level ground, release the side bolt to allow free movement of the bale arm
- Lower the bale arm to the rest plate ensuring shark fin is disengaged from keep. Then commence the straight lift of the bale arm to allow emptying movement

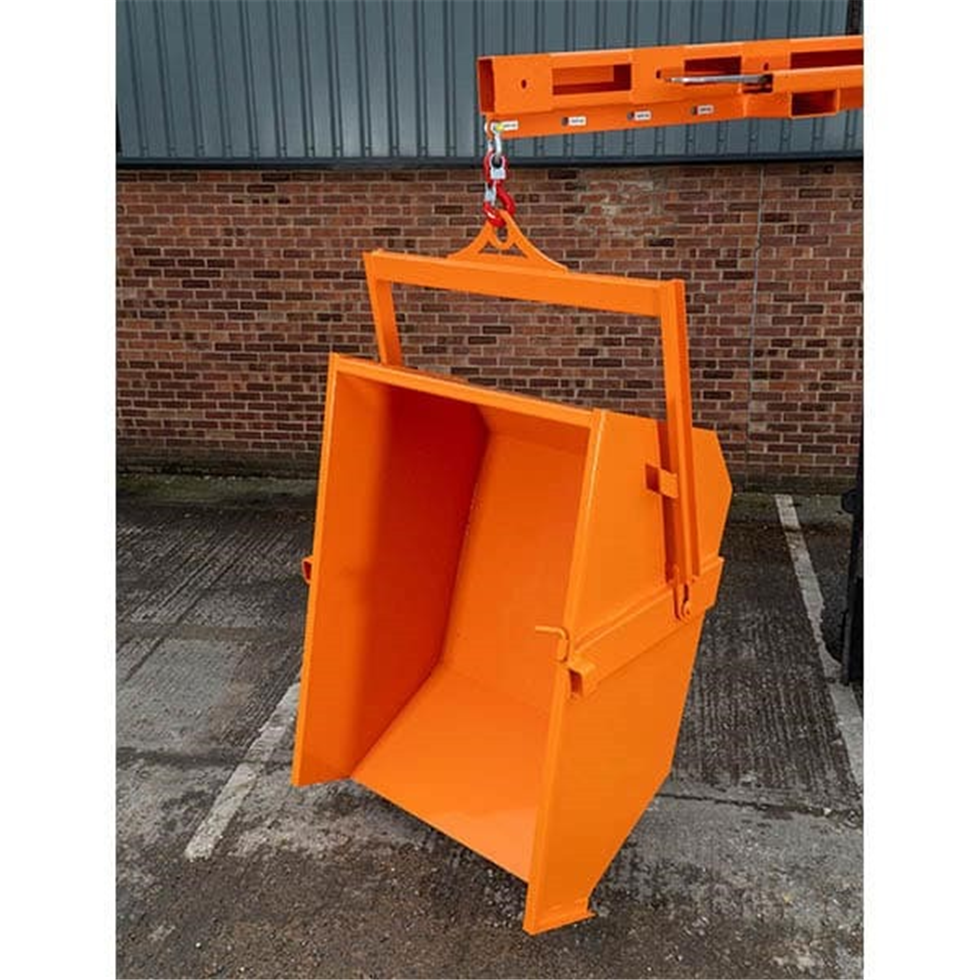

- Continue the straight lift which in turn will lift the boat skip & empty its contents
To commence another lift, follow steps:-
- Lower boat skip to safe position
- Lift bale arm ensuring shark fin is engaged in its keep
- Ensure safety side bolt is in position
- The boat skips is now ready to carry out another lift
Standard features:-
- Low Loading Height
- No manual intervention needed
- Bail Arm Rest when not in use
- Integral Locking Bale Arm once lifted
- Reinforced Body Sides and Rear
- Reinforced leading edge
- Painted bright orange for safety
Specification:-
- Model: IBS-500
- Nominal capcity: 500ltr
- Capacity: 1000kg
- Body length: 1280mm
- Body width: 980mm
- Body height: 600mm
- Overall height: 1080mm
- Lip height: 380mm
- Weight: 100kg
