500kg Lightweight Aluminium Gantry c/w 4mtr Beam

Product Code: KSB-ALU-GAN-4MTR
Net Weight (Per Item): 57kg
Easy Rig

Pricing:

SRP
£2,447.93
Trade Price
Login
Qty:

Easy Rig

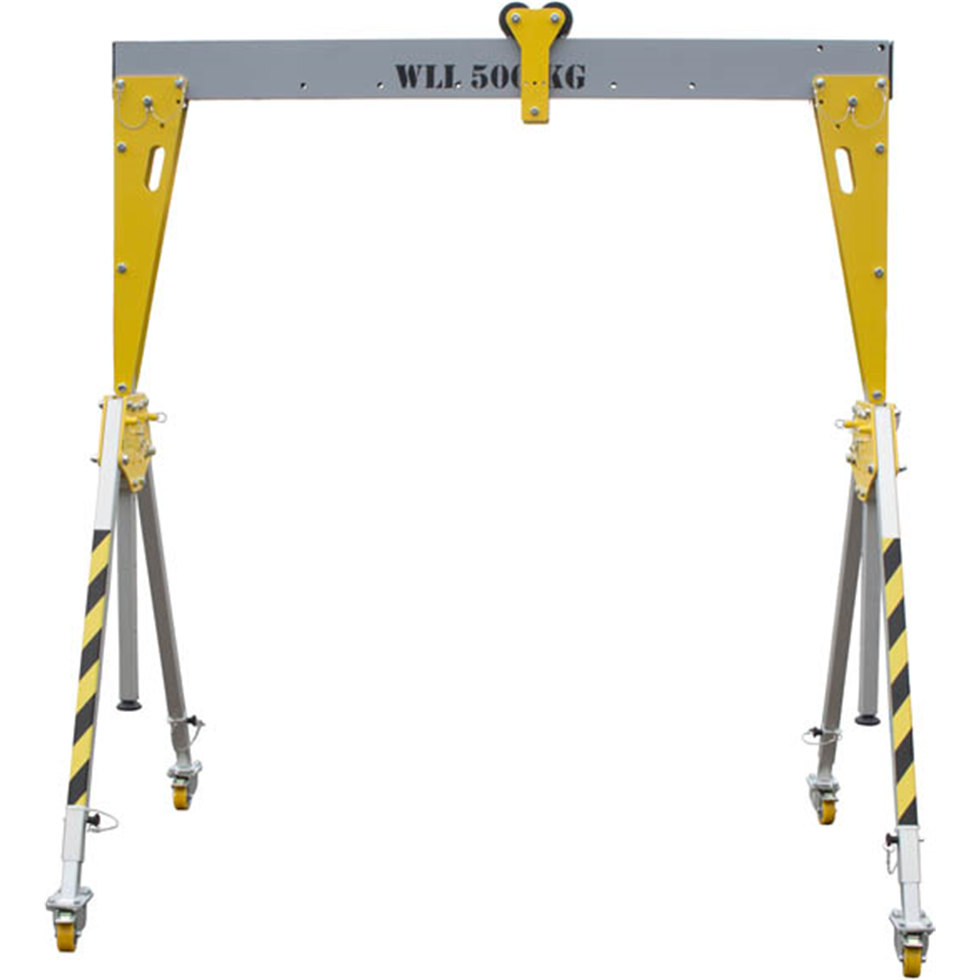

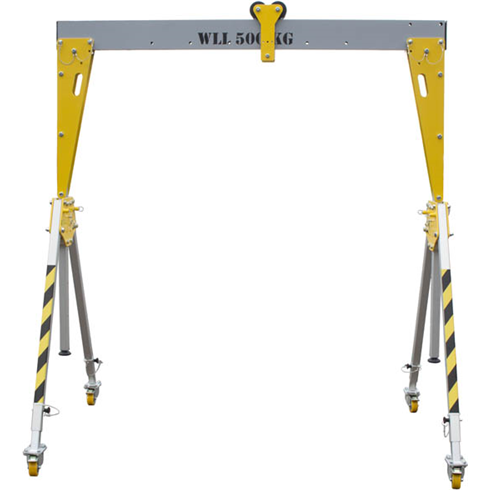

The Easy-Rig KSB Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads.

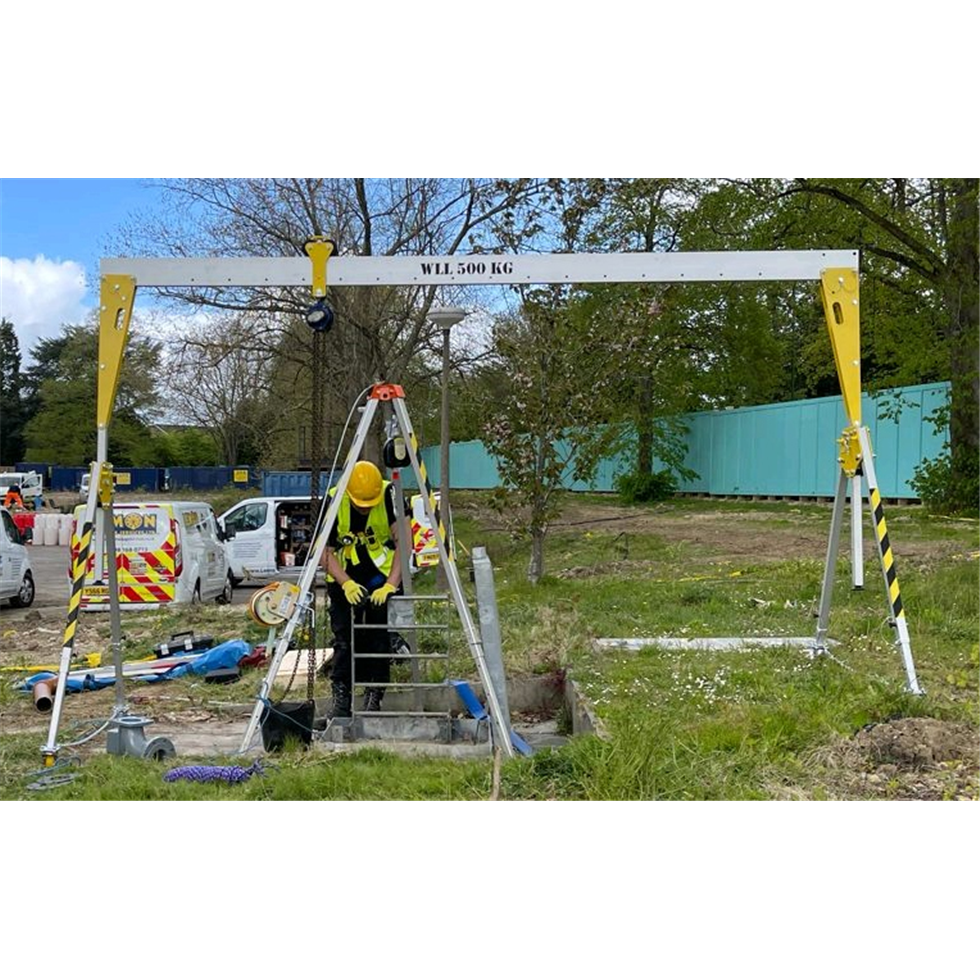

This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

The KSB Gantry is supplied in 3x lightweight parts, a beam and 2x frames for easy handling and transportation

Another key feature of the KSB Gantry is the option to purchase different length beams (2mtr and 3mtr) to use with the frames

Fully adjustable in height from 2100 - 3000mm (support height)

Easy to errect

A-Frames are supplied with 360° castors wih brake

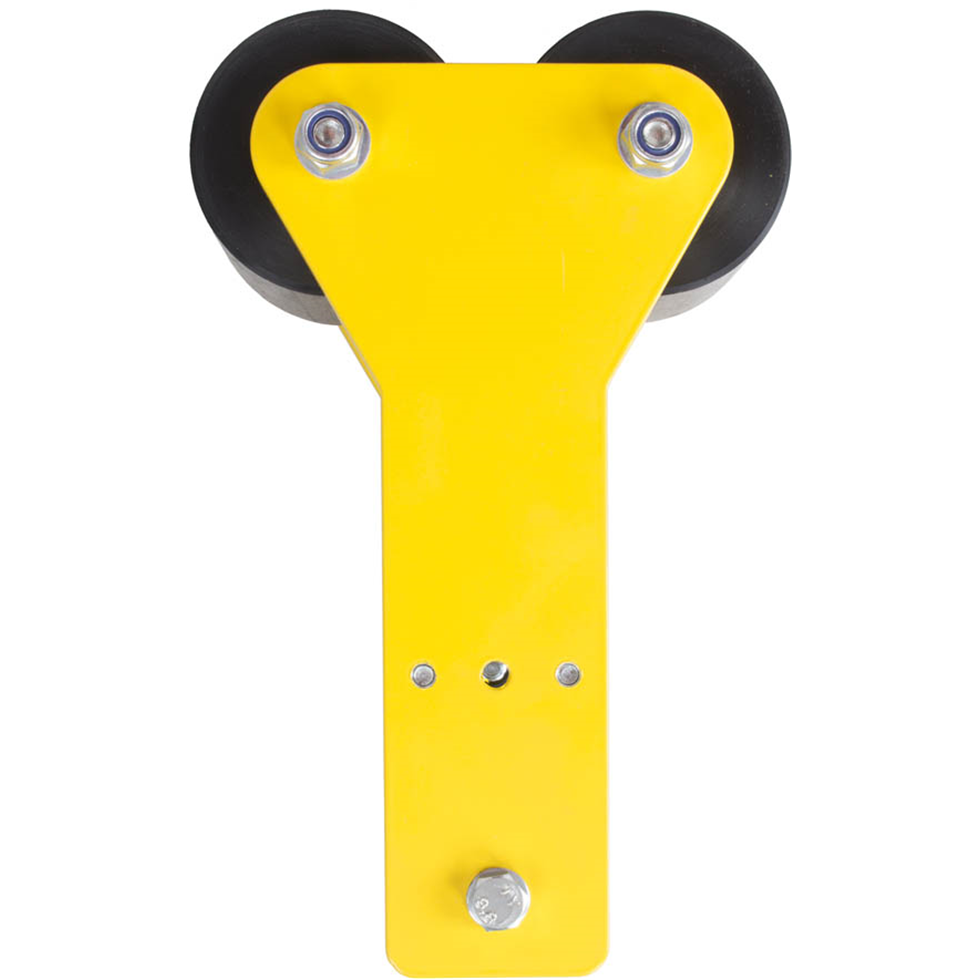

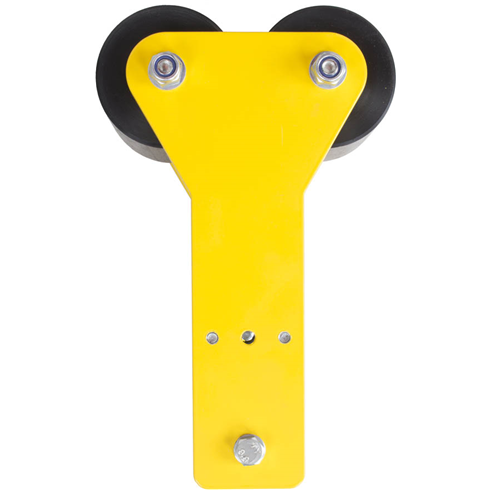

Beam is supplied with External Trolley for lifting applications

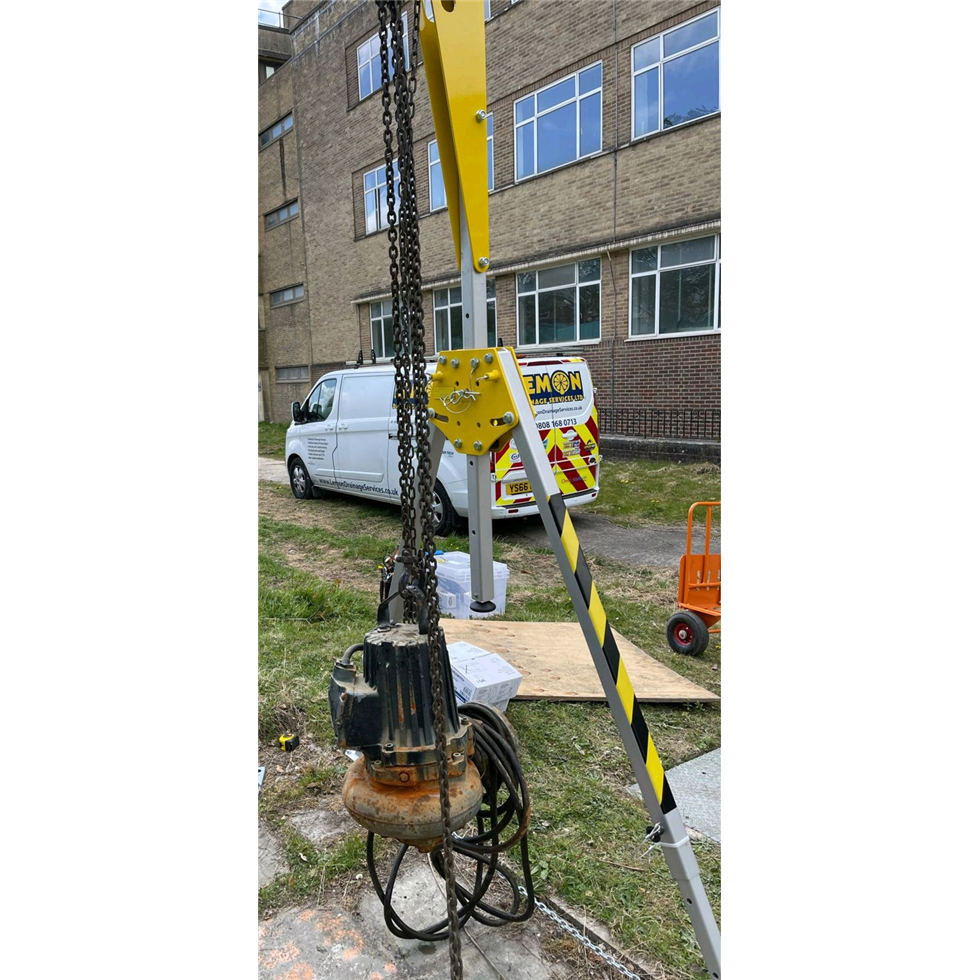

Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-DT Lifting Winch (sold seperately)

SWL: 500kg

Support height: 2100 - 3000mm

Total beam length: 4mtrs

Total weight of Gantry: 62kg

Fully certified and tested

*Specifications and prices may change from time to time so please confirm before placing your order.
