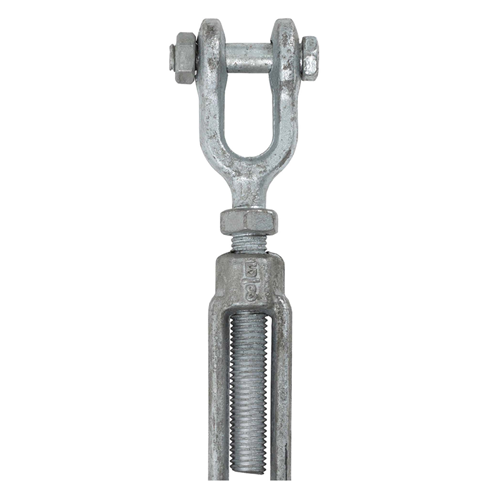

3/4" x 9" Galvanised Jaw/Jaw Turnbuckle WLL:2.36tonne
Product Code: TURN-JAW-3/4X9Net Weight (Per Item): 2.48kg
3/4" x 9" Galvanised Jaw/Jaw Turnbuckle WLL:2.36tonne
Drop forged, high tensile 1045 steel
Hot dipped galvanised finish
Meets the performance requirements of ASTM F1145-92 (formally US Fed.Spec.FF-T-791b)
Proof load tested to 2.5 times the WLL
Minimum breaking load is 5 times the WLL
Jaw/Jaw end fittings
Supplied with lock nuts
- WLL: 2.36tonne
- Size: 3/4"
- Take up: 9"
- Open length: 727mm
- Closed length: 498mm
- Jaw width: 26mm
- Pin dia: 17.5mm
- Body length: 289mm
- Weight: 2.48kg
