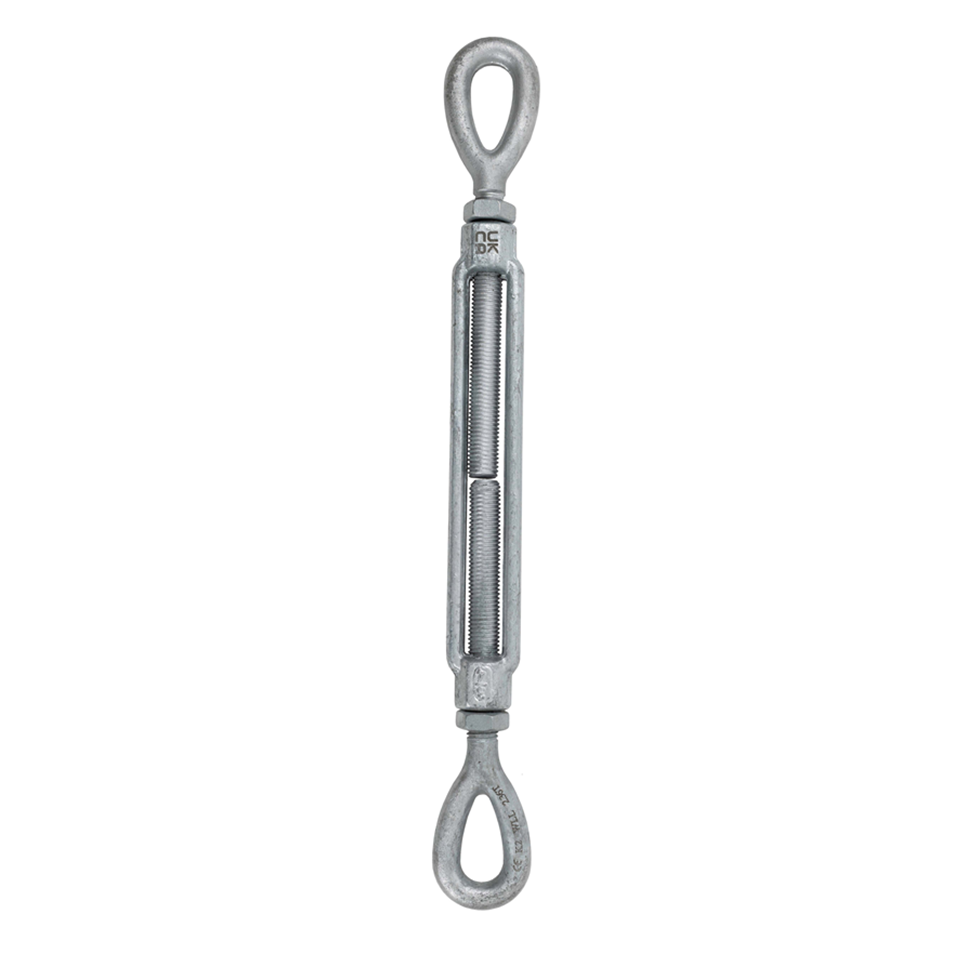

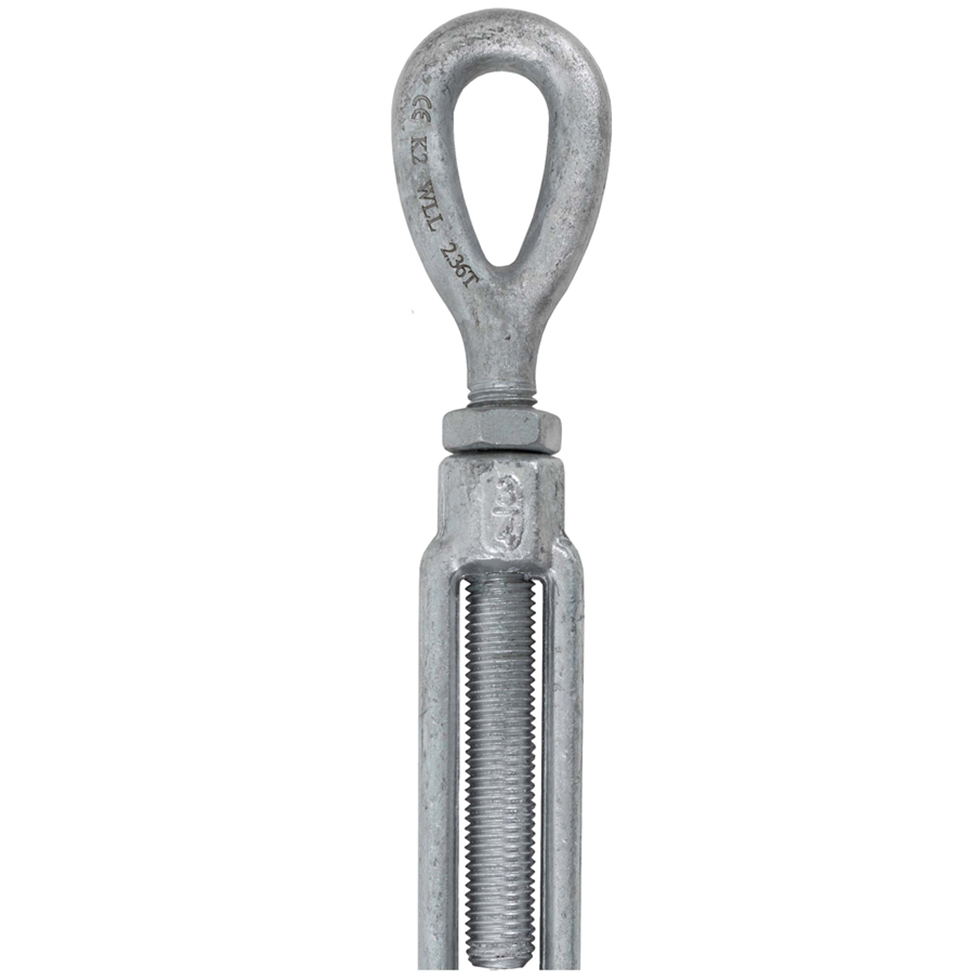

3/4" x 12" Galvanised Eye/Eye Turnbuckle WLL:2.36tonne
Product Code: TURN-EYE-3/4X12Net Weight (Per Item): 2.57kg
3/4" x 12" Galvanised Eye/Eye Turnbuckle WLL:2.36tonne
Drop forged, high tensile 1045 steel
Hot dipped galvanised finish
Meets the performance requirements of ASTM F1145-92 (formally US Fed.Spec.FF-T-791b)
Proof load tested to 2.5 times the WLL
Minimum breaking load is 5 times the WLL
Eye/Eye end fittings
Supplied with lock nuts
- WLL: 2.36tonne
- Size: 3/4"
- Take up: 12"
- Open length: 900mm
- Closed length: 600mm
- Body length: 365mm
- Internal eye dimensions: 53mm (L) x 25.4mm (W)
- Weight: 2.57kg
