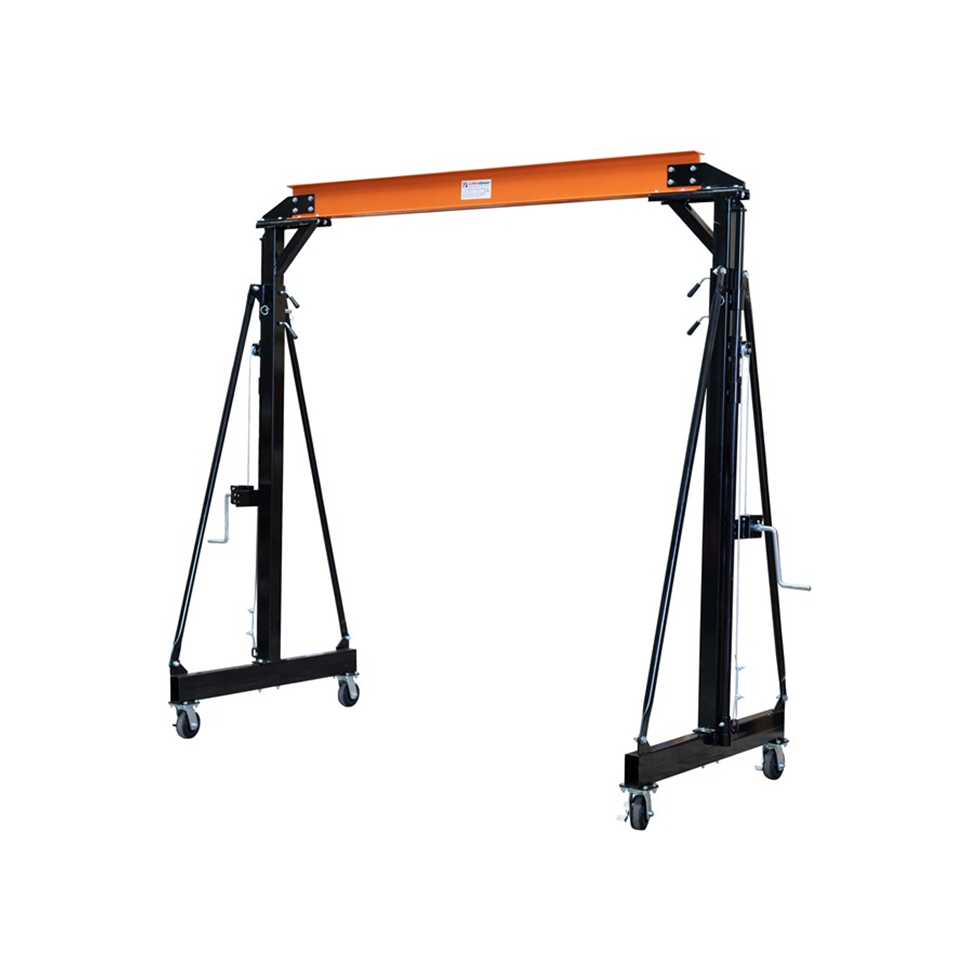

2tonne Portable Adjustable Gantry c/w Winch

2tonne Portable Adjustable Gantry c/w Winch

Ideal for workshops/garages where level lifting is essential

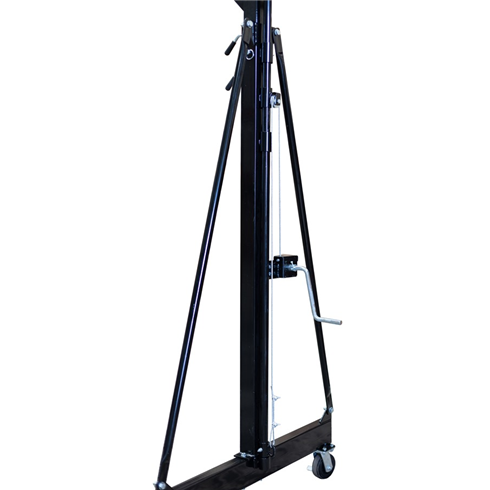

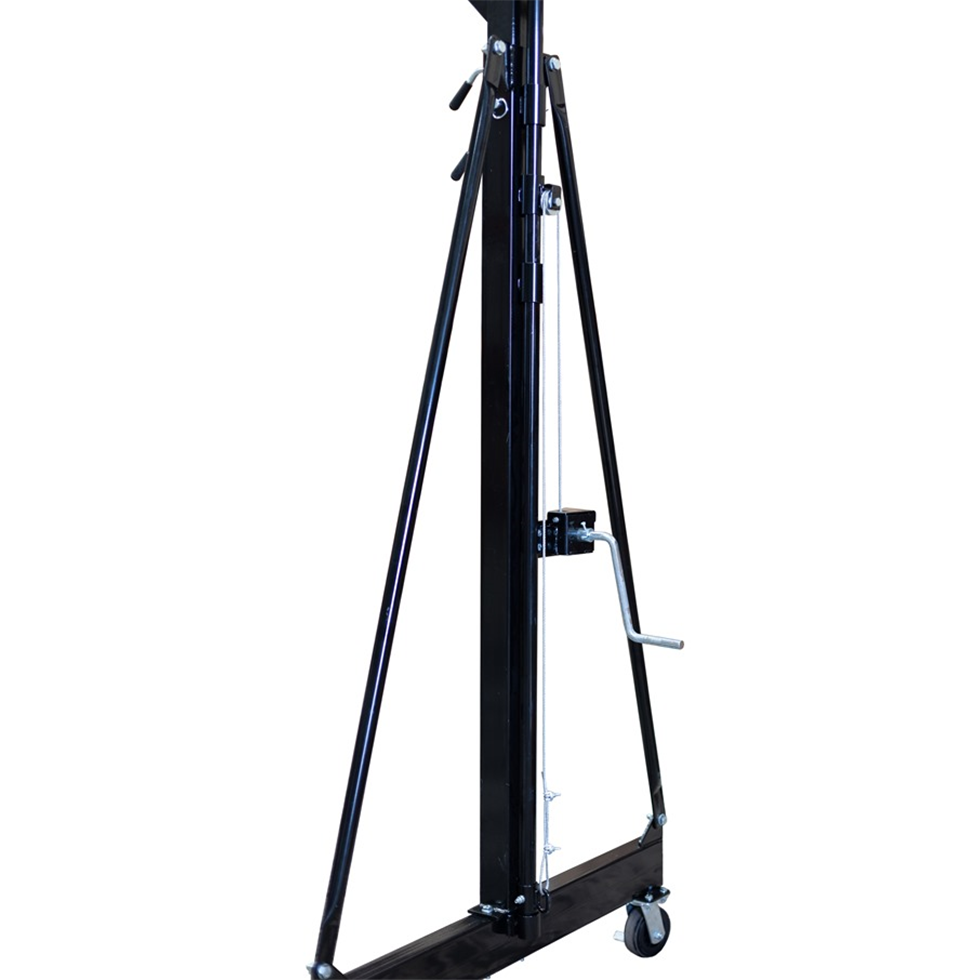

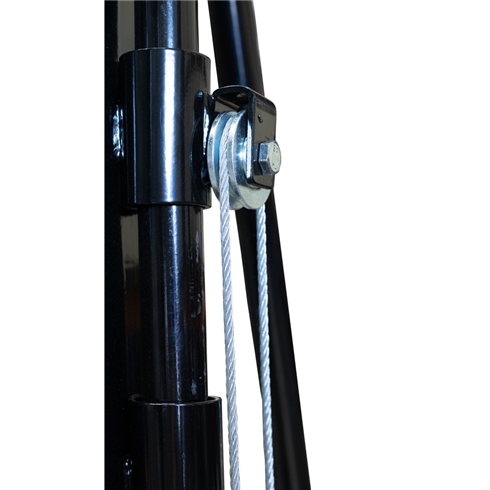

Fitted with Winch either side for easy lowering and raising of the Gantry

Supplied with 4 swivel locking castors

All steel construction with I-Beam cross member for added strength

Height adjustable from 2400 to 3600mm in 100mm increments

Ideal for maintenance, manufacturing, repairs and other material handling tasks

Quick assembly for easy transport within a workplace or from site to site

Lifting equipment sold seperately

Fully certified

Specifications:-

• Model no: GAN-CRANE-WINCH-2000KG
• Maximum height: 3600mm
• Minimum height: 2400mm
• Gantry width: 2400mm
• Maximum depth: 1200mm
• Beam hieght: 160mm
• Beam width: 88mm
• Maximum load capacity: 2000kg
• Weight: 160kg

Important information:-

• Gantry is NOT to be moved whilst under load
• Gantry is NOT to be raised or lowered whilst under load
• ALWAYS make sure the locking pins are engaged prior to raising or lowering the load
