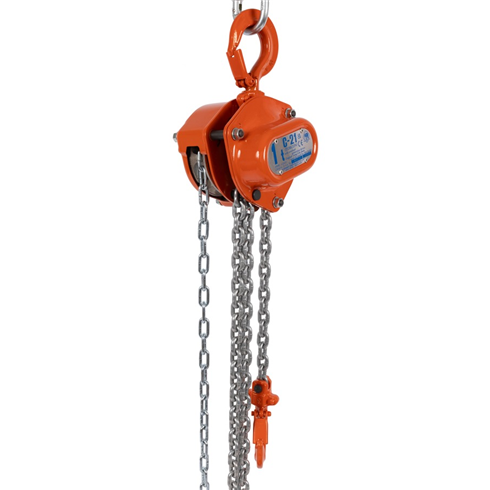

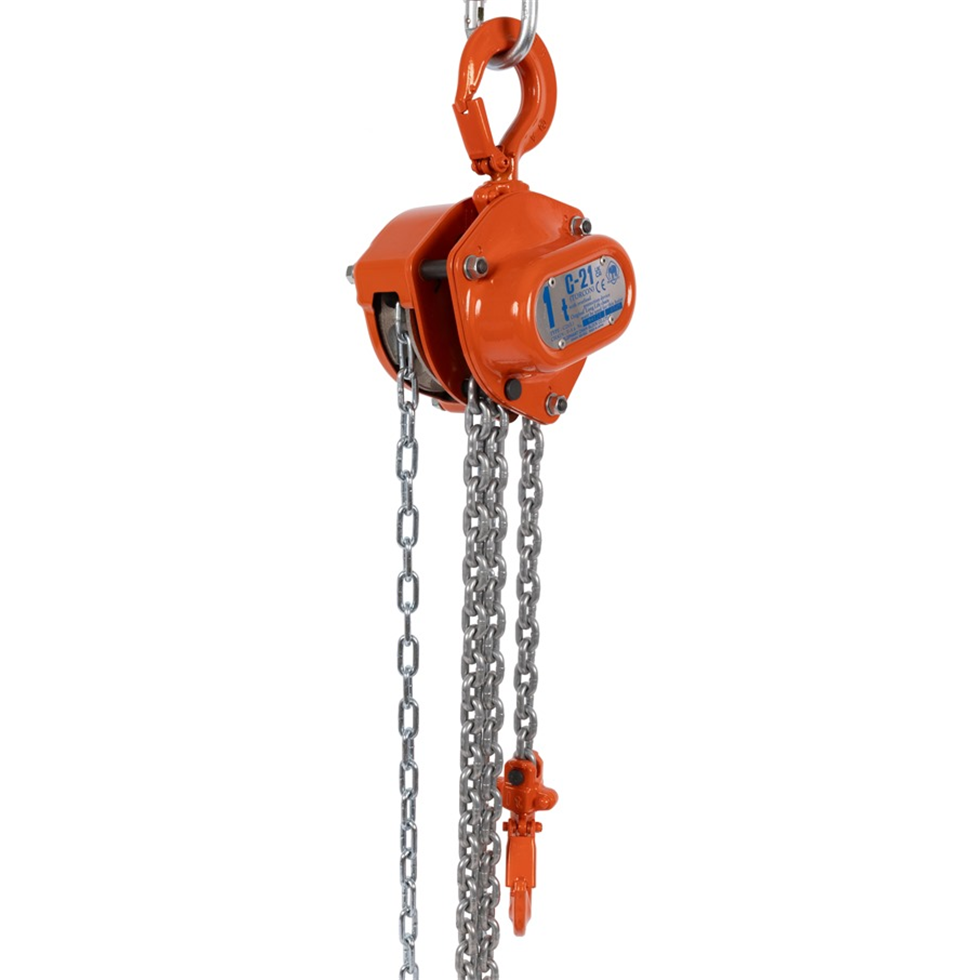

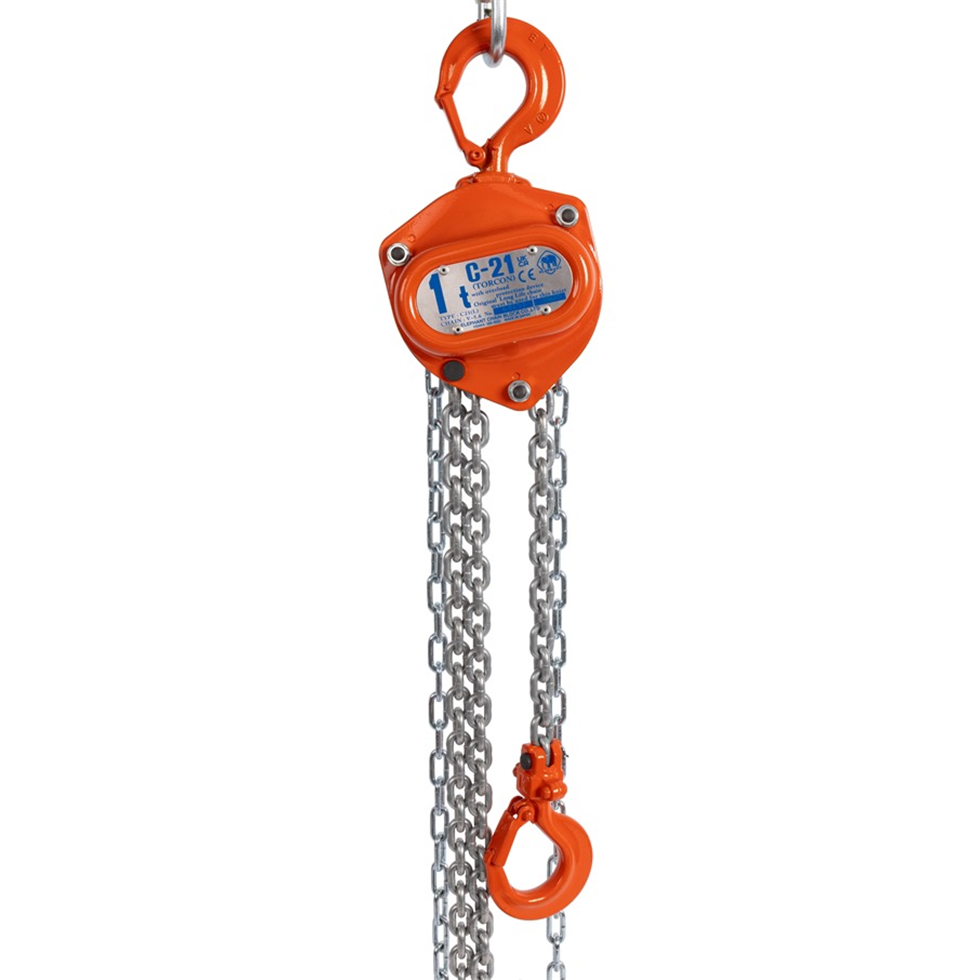

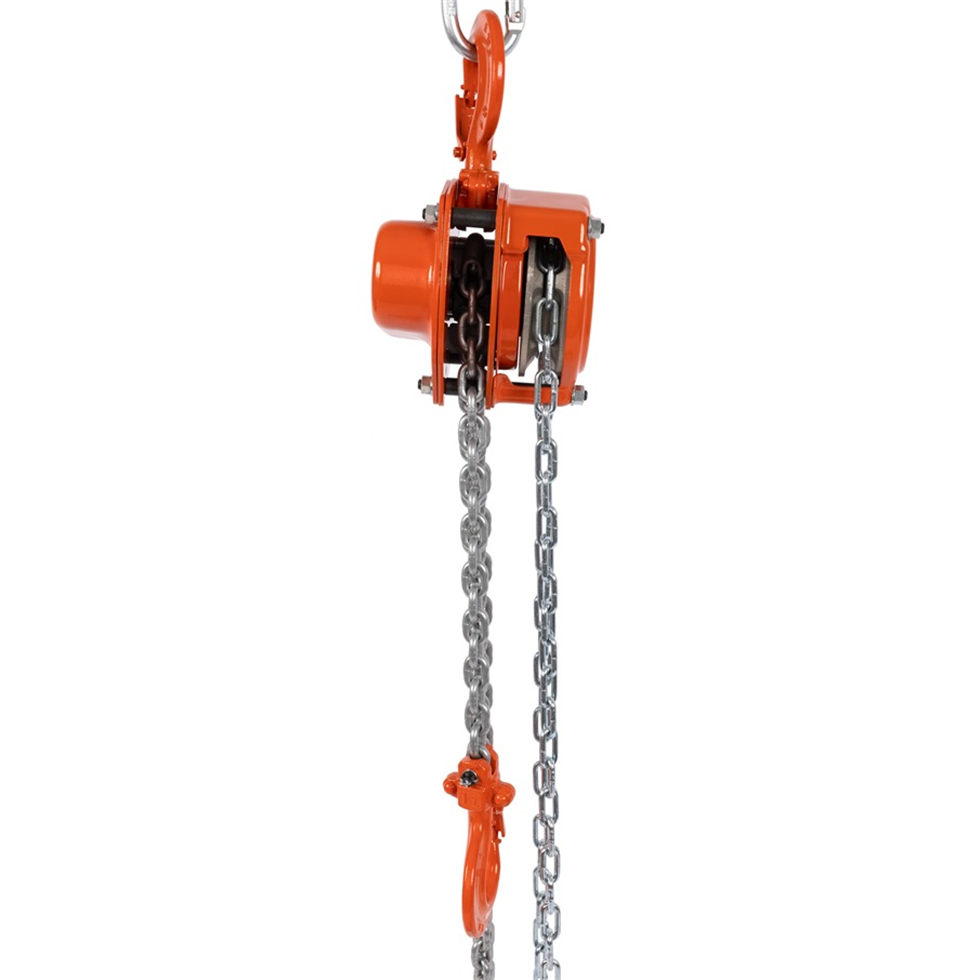

1tonne Elephant Chain Block Hoist with Overload Protection

The Elephant 1000kg manual Chain Block Hoist is designed for industrial-grade performance with a strong focus on portability, safety, and long-lasting durability. Ideal for workshops, construction sites, warehouses, and more, this hoist delivers reliable lifting power in a compact form

Key Features

• Super lightweight design: Engineered to be 20% lighter than standard models, the hoist features a compact and easy-to-carry body — perfect for mobile applications and overhead use where weight is a concern
• Heavy-duty construction: Built with a powder-coated body for enhanced corrosion resistance and durability. This hoist stands up to harsh working environments while maintaining top performance
• Reinforced loadchain: Equipped with a newly developed super strength load chain rated at 105 kgf/mm², delivering superior lifting strength and resistance to wear — ideal for demanding lifting tasks

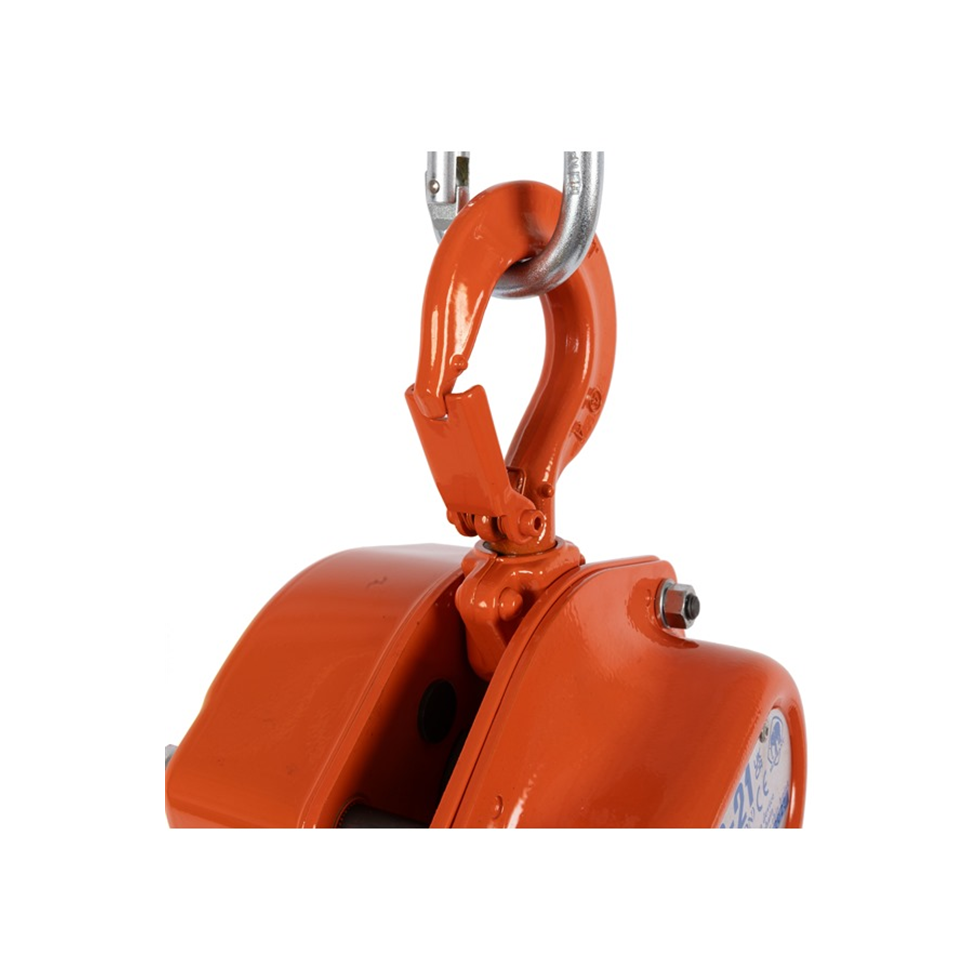

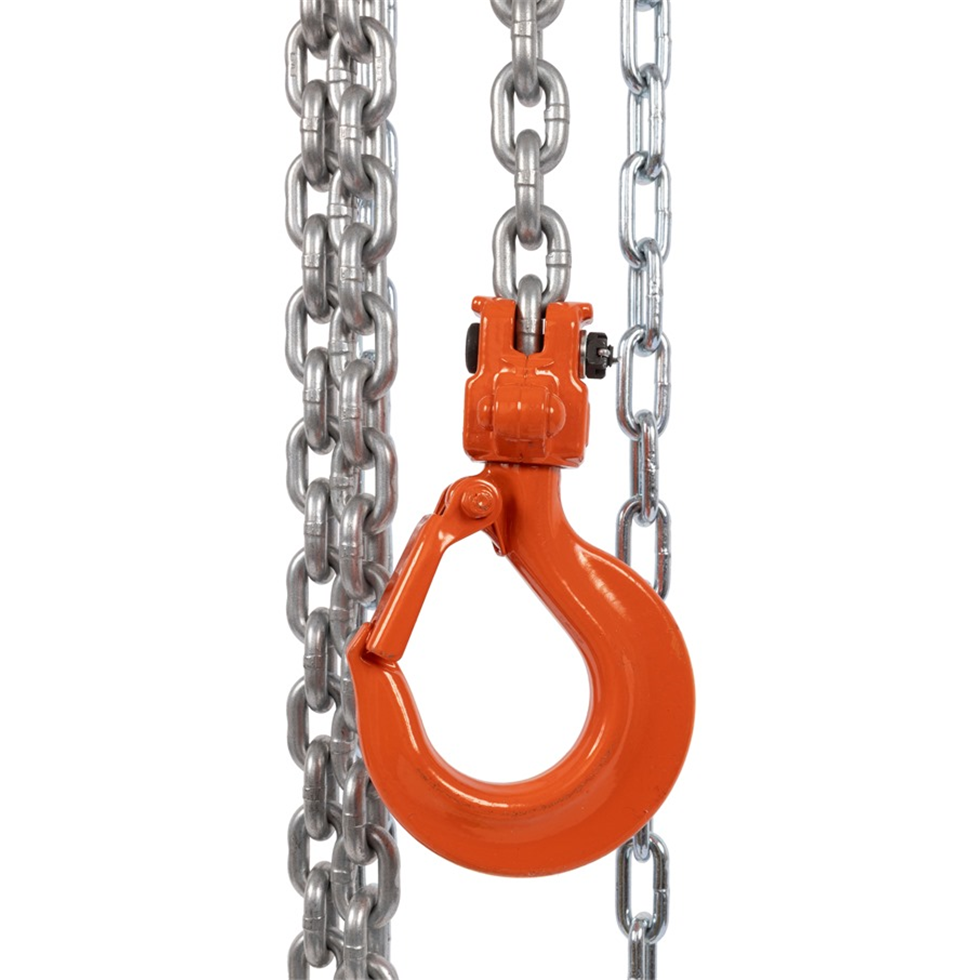

• Drop-forged, high-strength hooks: Fitted with extra-strong drop-forged hooks designed to maintain grip and integrity under high loads, offering increased safety and reliability
• Integrated overload protection: For added safety, the hoist includes built-in overload protection. This mechanism prevents the accidental overloading of the Hoist
• Versatile lifting heights: Available in lifting heights ranging from 3mtrs to 30mtrs
• Quality assured: Every unit is fully tested and certified to ensure consistent performance, safety, and compliance with industry standards
• 2-Year warranty: Backed by a comprehensive 2-year manufacturer’s warranty, offering peace of mind and long-term support

Specifications

• Model: C-21
• Capacity: 1tonne
• Number of falls: 1
• Load chain diameter: 5.6 x 17mm
• Min distance between hooks: 310mm
• Weight: 9.5kg (based on 3mtr lifting height)
• Made in Japan
