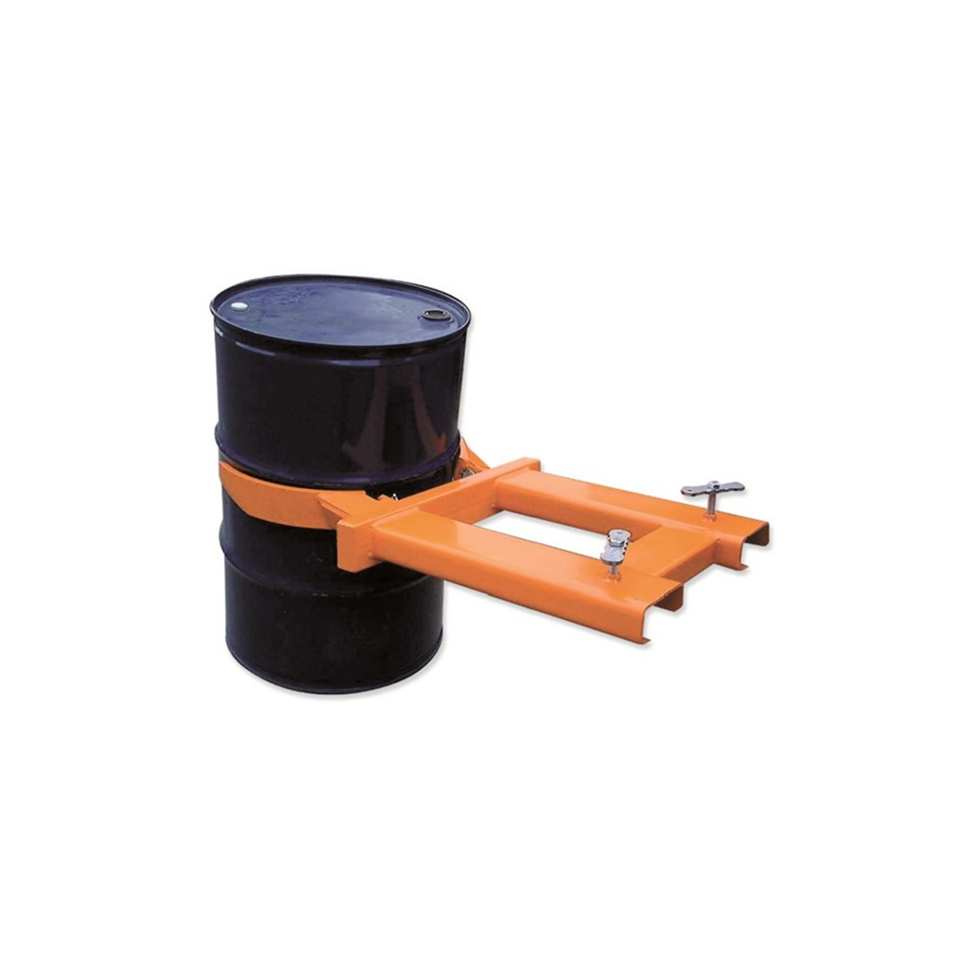

1000kg Double Fork Mounted Steel Drum Lifter

The Fork Mounted Drum Lifter provides a simple yet effective method of moving steel drums in a safe and controlled manner which is aimed at the small volume drum user

Operation:-

• Position the forks the correct distance apart to locate into fork pockets
• Fully engage forks into fork pockets and tighten thumb screws fully onto forks
• Drive towards intended drum with drum lifter arms positioned between middle two ribs on drum
• Once the tip of the drum lifter arms touch the drum, continue to drive forward whilst lowering mast
• Once fully engaged remain stationary and raise the mast. The drum lifter will automatically lock underneath the top rib
• The drum lifter is now ready for use
• To release the drum, place the drum on the floor, lower the mast and reverse away

Standard features:-

• Fully automatic without the driver leaving the safety of his seat
• Minimum moving parts for low maintenance
• Zinc plated twist screws for safe attachment to truck
• Maximum fork section 125 x 50 mm at 408 centres
• Painted bright orange for safety

Specifications:-

• Model: IDL-2
• Capacity: 1000kg
• No. of drums: 2
• Weight: 60kg
