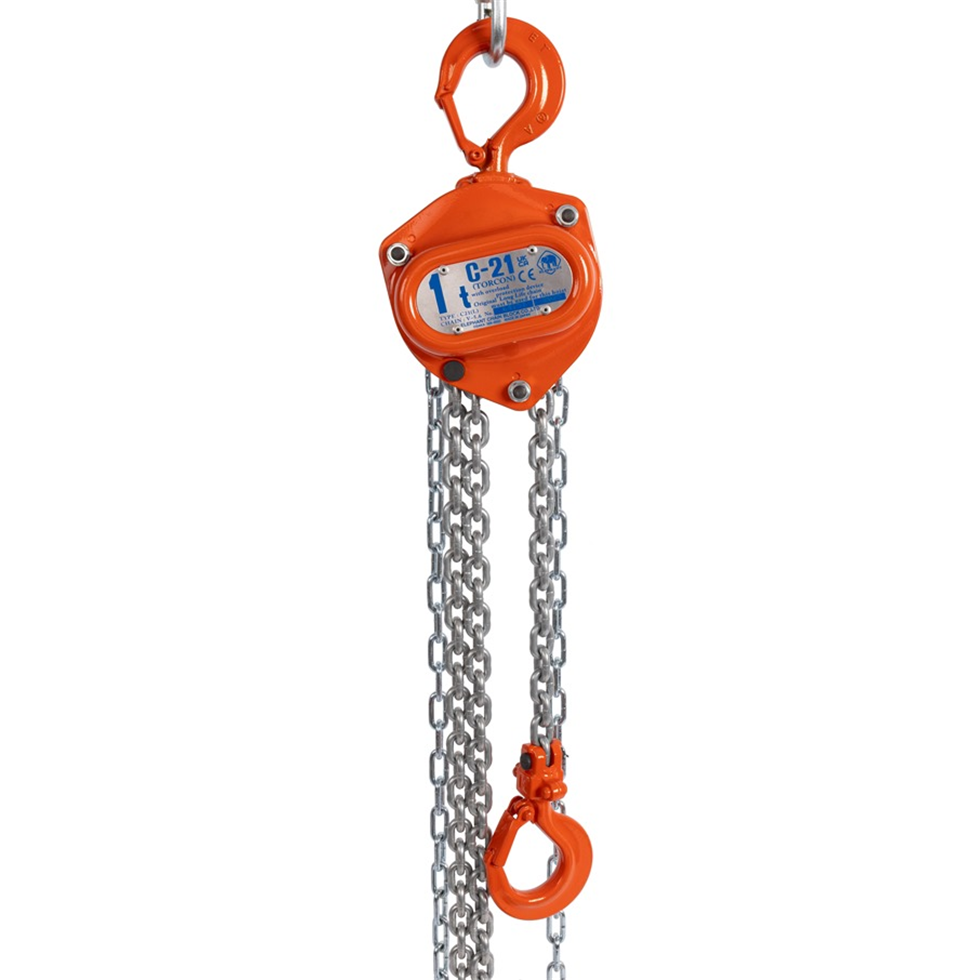

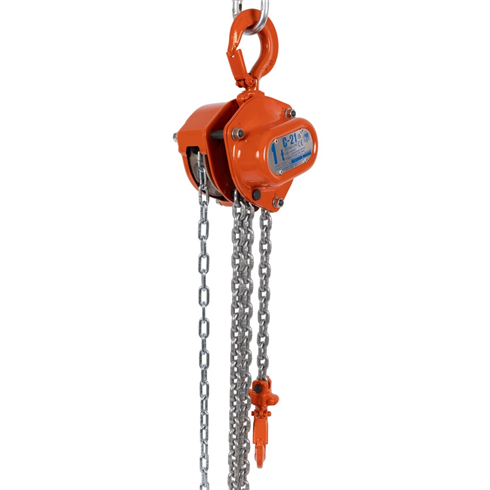

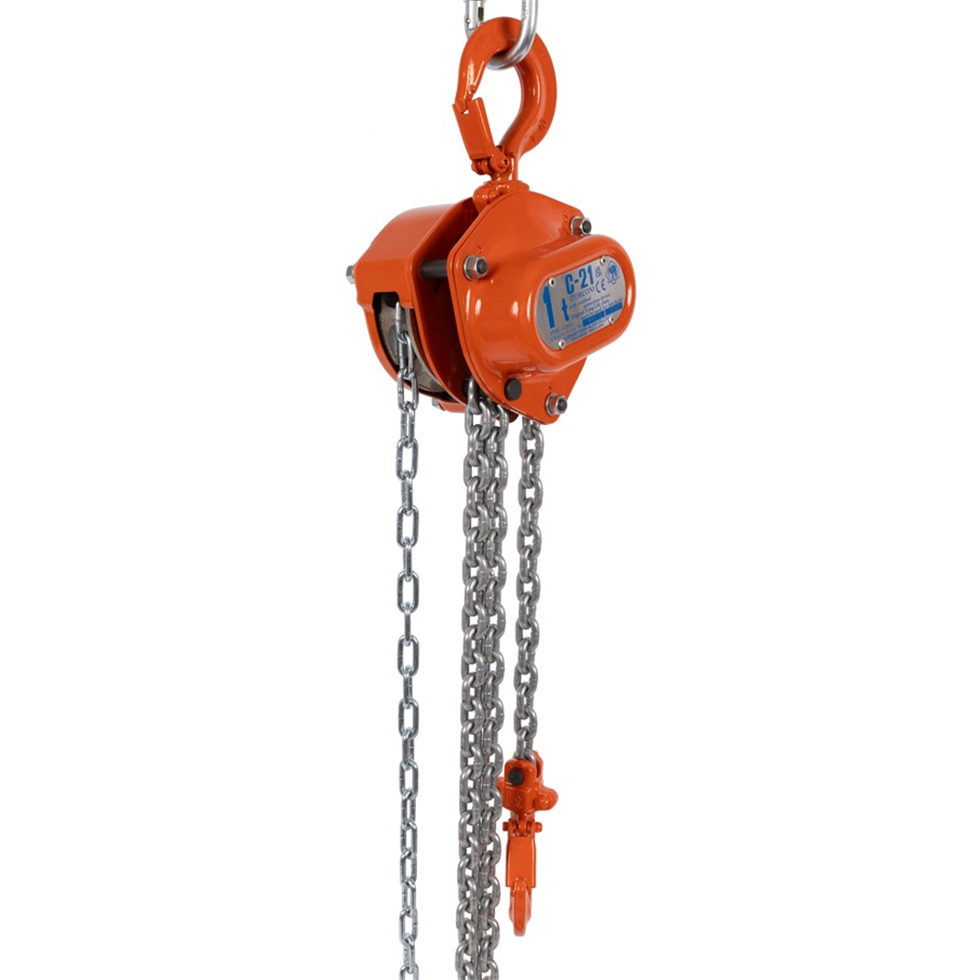

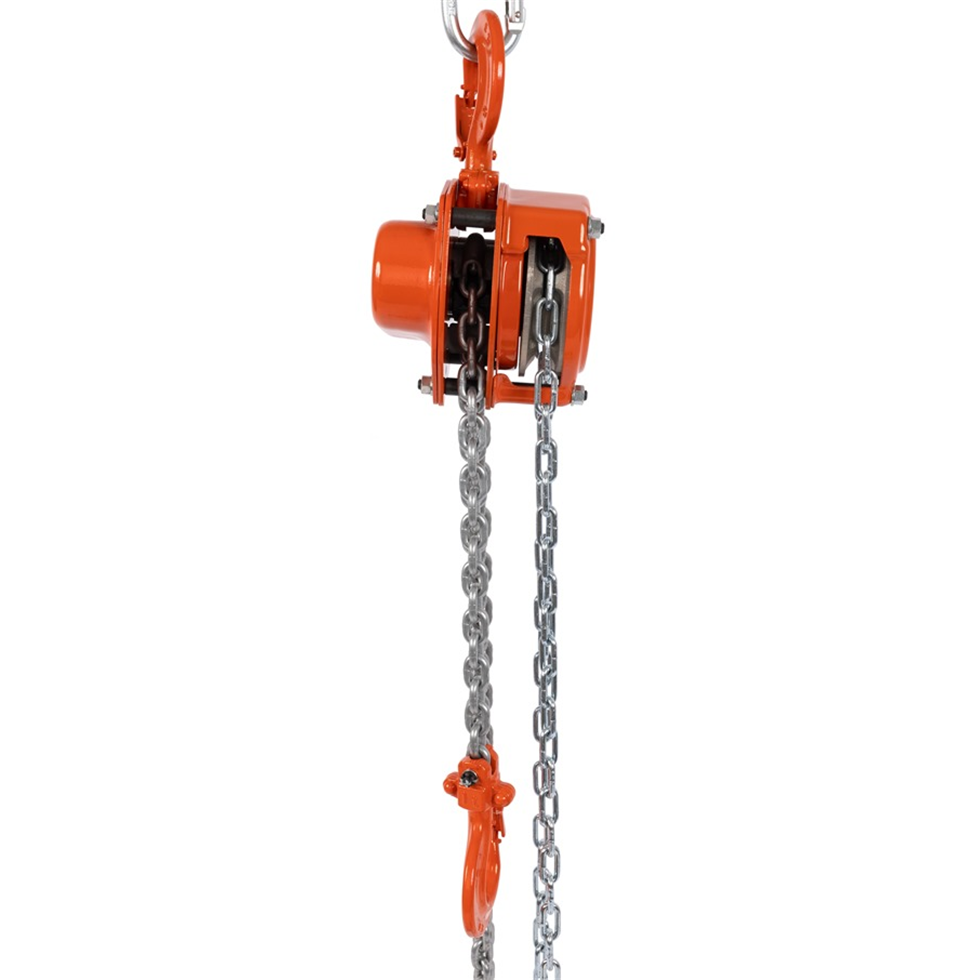

0.5tonne Elephant Chain Block Hoist with Overload Protection

The Elephant 500kg manual Chain Block Hoist is designed for industrial-grade performance with a strong focus on portability, safety, and long-lasting durability. Ideal for workshops, construction sites, warehouses, and more, this hoist delivers reliable lifting power in a compact form

Key features

• Super lightweight design: Engineered to be 20% lighter than standard models, the hoist features a compact and easy-to-carry body — perfect for mobile applications and overhead use where weight is a concern
• Heavy-duty construction: Built with a powder-coated body for enhanced corrosion resistance and durability. This hoist stands up to harsh working environments while maintaining top performance
• Reinforced loadchain: Equipped with a newly developed super strength load chain rated at 105 kgf/mm², delivering superior lifting strength and resistance to wear — ideal for demanding lifting tasks

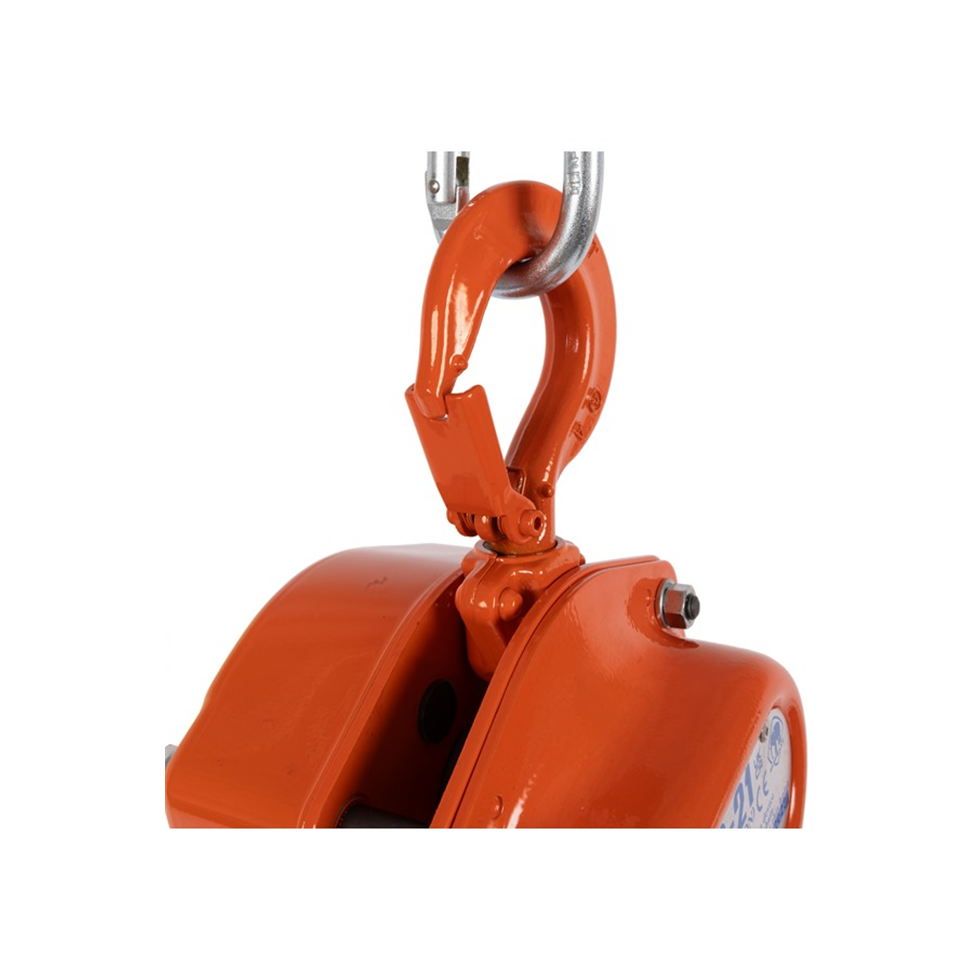

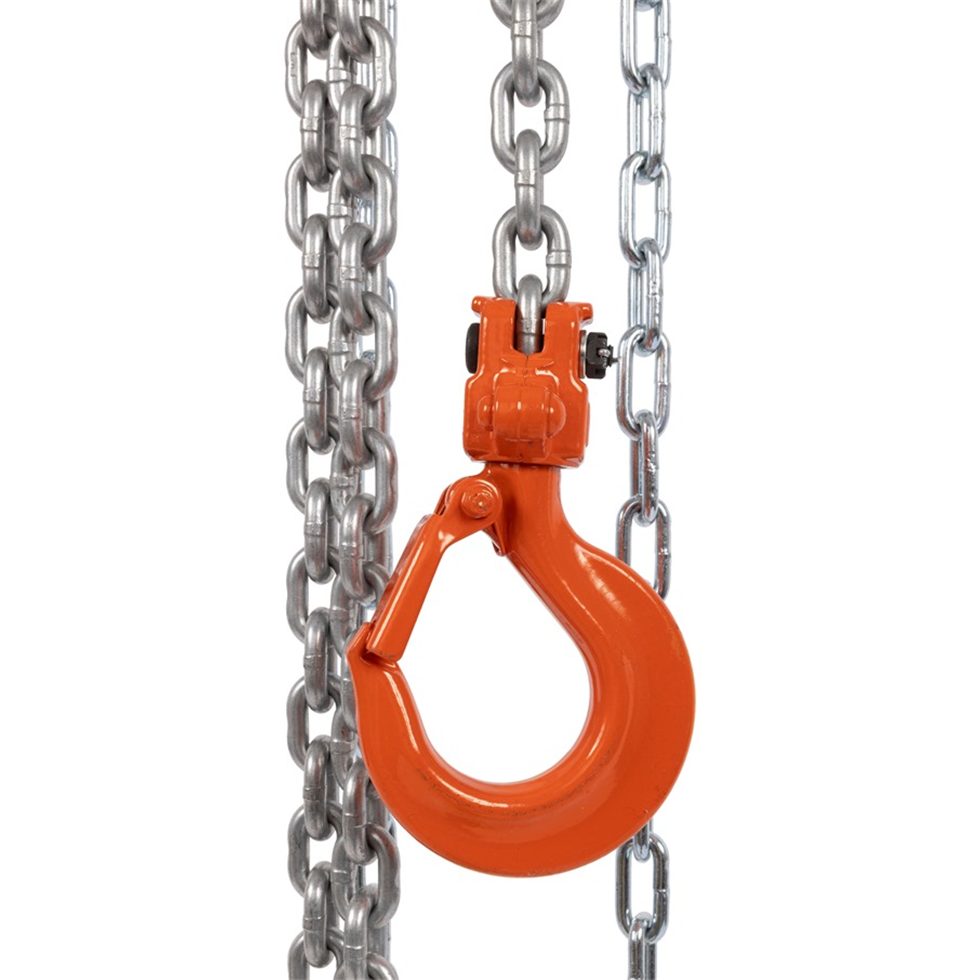

• Drop-forged, high-strength hooks: Fitted with extra-strong drop-forged hooks designed to maintain grip and integrity under high loads, offering increased safety and reliability
• Integrated overload protection: For added safety, the hoist includes built-in overload protection. This mechanism prevents the load chain from slipping when the maximum working load is exceeded, making it virtually impossible to overload the unit and protecting both the user and the equipment
• Versatile lifting heights: Available in lifting heights ranging from 3mtrs to 30mtrs
• Quality assured: Every unit is fully tested and certified to ensure consistent performance, safety, and compliance with industry standards
• 2-Year warranty: Backed by a comprehensive 2-year manufacturer’s warranty, offering peace of mind and long-term support

Specifications

• Model: C-21
• Capacity: 0.5tonne
• Number of falls: 1
• Load chain diameter: 4.3 x 12mm
• Min distance between hooks: 275mm
• Weight: 6.5kg (based on 3mtr lifting height)
• Made in Japan
