2000kg 'Edge' Fully-electric Battery Pallet Truck 540x1150mm
2000kg 'Edge' Fully-electric Battery Pallet Truck 540x1150mm
2000kg 'Edge' Fully-electric Battery Pallet Truck 540x1150mm

2000kg 'Edge' Fully-electric Battery Pallet Truck 540x1150mm

Product Code: BAT-EDGE-PTE20N
Net Weight (Per Item): 153kg
Batt Truck

Pricing:

SRP
£2,579.98
Trade Price
Login

 Email me when this product is back in stock

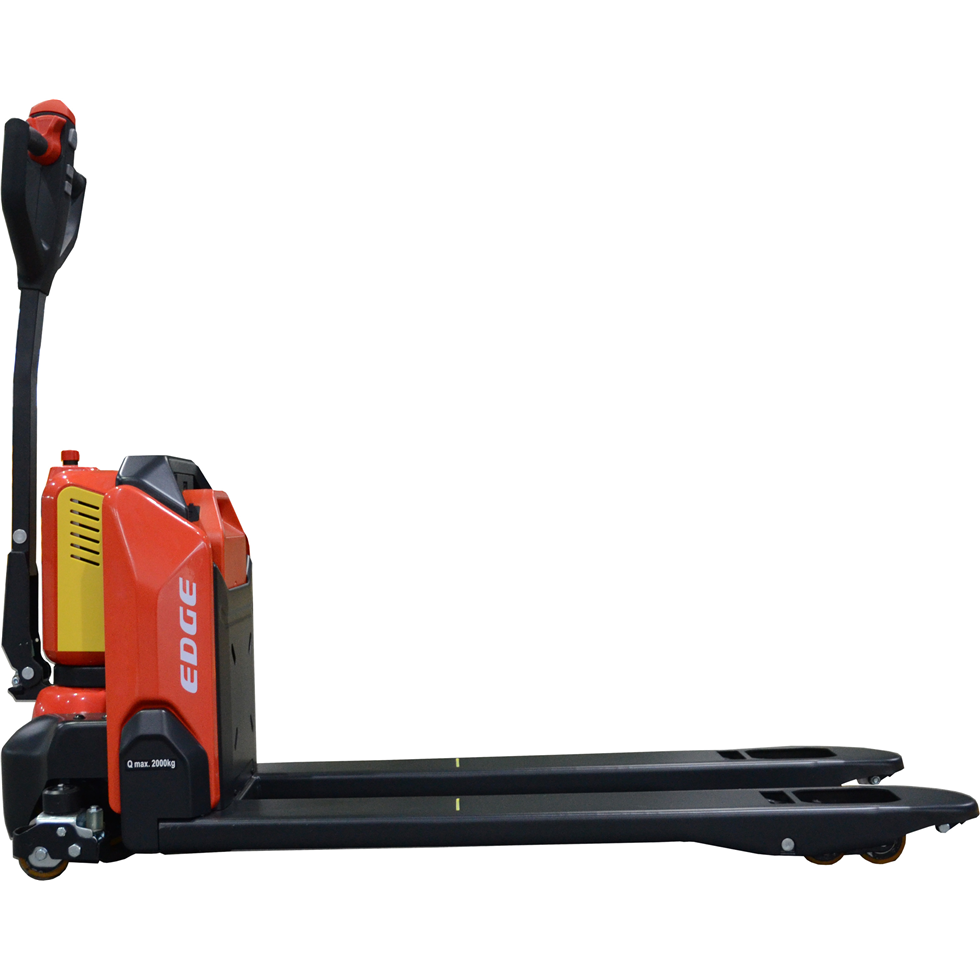

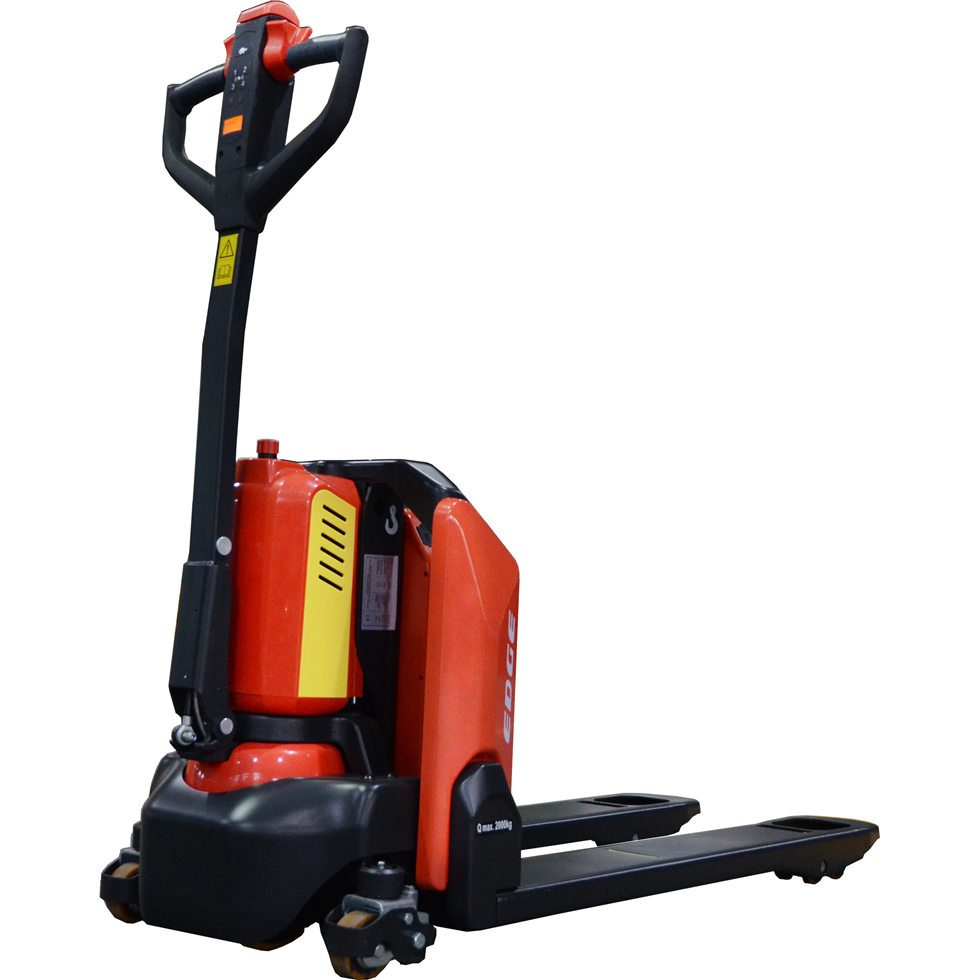

PTE20N 2000kg 'Edge' Fully-Electric Battery Pallet Truck

The perfect alternative to a hand Pallet Truck - affordable & efficient!

This new model of Electric Pallet Truck is a new innovative product with cutting-edge design based on decades of experience.  It combines the advantages of manual and electric Pallet Trucks being the perfect electrical product for light and medium duty material transportation in most efforetless and economic way.  With it's new and fresh outer appearance containing sharp lines, we named it 'EDGE'

The 'Edge' is equipped with maintenance-free 48V/20Ah Lithium battery with optional different capacities for various applications.  The integrated BMS (battery maintenance system) controls all important parameters and performance of the Lithium Battery

The socket on the battery case makes it easy for charging without having to take the battery out, meaning fast charging during breaks in operations

The frame of the truck is surrounded by stamped steel elements ensuring the protection of the components

The shape of the forks allow easy entrance and exit from pallets.  Full length double sided C-shape reinforcements of forks significantly increase strength and rigidity of frame

Strong steel apron protects the operator's feet during work and secures the Truck's components from collisions with objects

The Truck has a capacity of 2000kg and ability to overcome ramps up to 7/16% (laden/unladen) makes it suitable for work in loading docks an on delivery operations in difficult conditions

The mimizied service weight of 149kg makes the Truck ideal to be used for delivery lorries with tail lifts platforms for goods distributions without sacrificing the transported weight

With a turning radius of 1336mm with lifted/lowered forks make this Truck extremely compact and ideal for use in confined spaces of retail stores, elevators or business centres

The truck is intended to be used for indoor applications with ambient temperatures between +5°C and +40°C and for various transportation applications without crossing permanent obstacles or potholes

3-6hrs working time on the battery (additional batteries sold seperately)

Minimum charge time: 2.5hrs

Fully electric driven and electric lifting

Fork dimensions: 540mm wide x 1150mm long

Overall length: 1536mm

Lift height: 115mm

Height lowered: 80mm

Lithium battery weight: 7.5kg

Individual fork width: 160mm

Internal gap between forks: 220mm

Travel speed laden/unladen: 4.8/5.2km/h

*Specifications and prices may change from time to time so please confirm before placing your order.
