1500kg 'Edge' Fully-electric Battery Pallet Truck 540x1150mm

Product Code: BAT-EDGE-PTE15N
Net Weight (Per Item): 123kg
Batt Truck


Trade Price
PTEN 1500kg 'Edge' Fully-Electric Battery Pallet Truck
The perfect alternative to a hand Pallet Truck - affordable & efficient!
This new model of Electric Pallet Truck is a new innovative product with cutting-edge design based on decades of experience.  It combines the advantages of manual and electric Pallet Trucks being the perfect electrical product for light and medium duty material transportation in most efforetless and economic way.  With it's new and fresh outer appearance containing sharp lines, we named it 'EDGE'

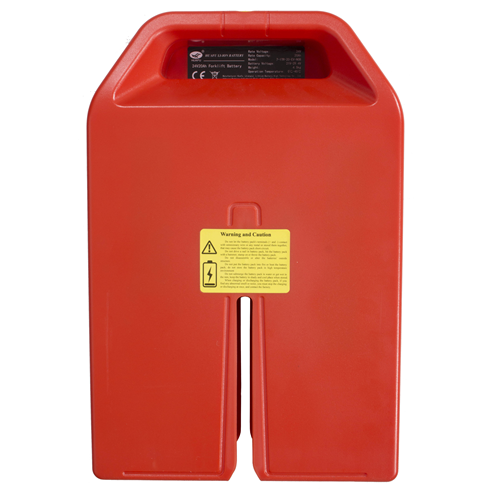

The 'Edge' is equipped with maintenance-free 24V/20Ah Lithium battery with optional different capacities for various applications(30Ah and 36Ah Batteries available - please contact us for details).  The integrated BMS (battery maintenance system) controls all important parameters and performance of the Lithium Battery
The socket on the battery case makes it easy for charging without having to take the battery out, meaning fast charging during breaks in operations
The frame of the truck is surrounded by stamped steel elements making the Truck looking different and also ensuring the protection of components
Forks of the truck with shape for easy entrance and exit from pallets.  Full length double sided C-shape reinforcements of forks significantly increase strength and rigidity of frame
Strong steel apron protects the operator's feet during work and secures the Truck's components from collisions with objects
The Truck has a capacity of 1500kg and ability to overcome ramps up to 4/16% (laden/unladen) makes it suitable for work in loading docks an on delivery operations in difficult conditions
The mimizied service weight of 123kg makes the Truck ideal to be used for delivery lorries with tail lifts platforms for goods distributions without sacrificing the transported weight
With a turning radius of 1274/1330mm with lifted/lowered forks make this Truck extremely compact and ideal for use in confined spaces of retail stores, elevators or business centres
3-6hrs working time on the battery (additional batteries sold seperately)
Minimum charge time: 2.5hrs
Fully electric driven and electric lifting
Fork dimensions: 540mm wide x 1150mm long
Individual fork width: 160mm
Internal gap between forks: 220mm
Overall length: 1530mm
Lift height: 115mm
Height lowered: 80mm
Lithium battery weight: 4.6kg
*Specifications and prices may change from time to time so please confirm before placing your order.
