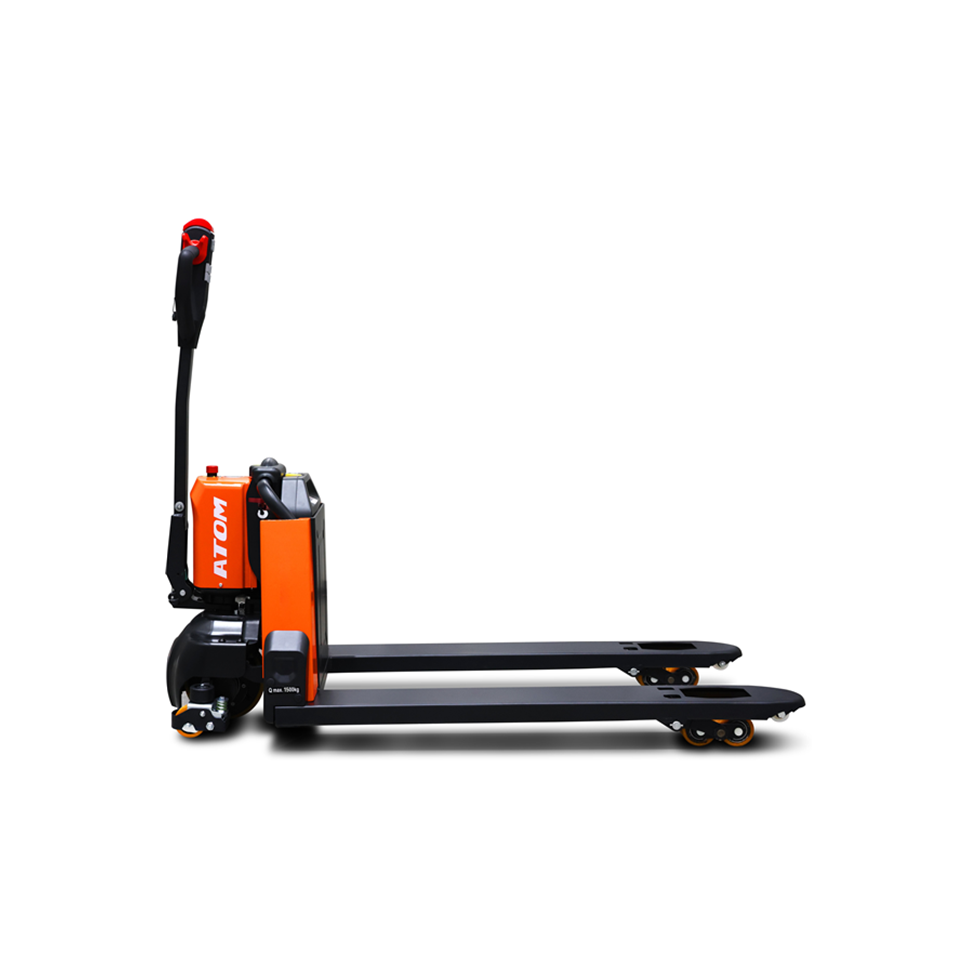

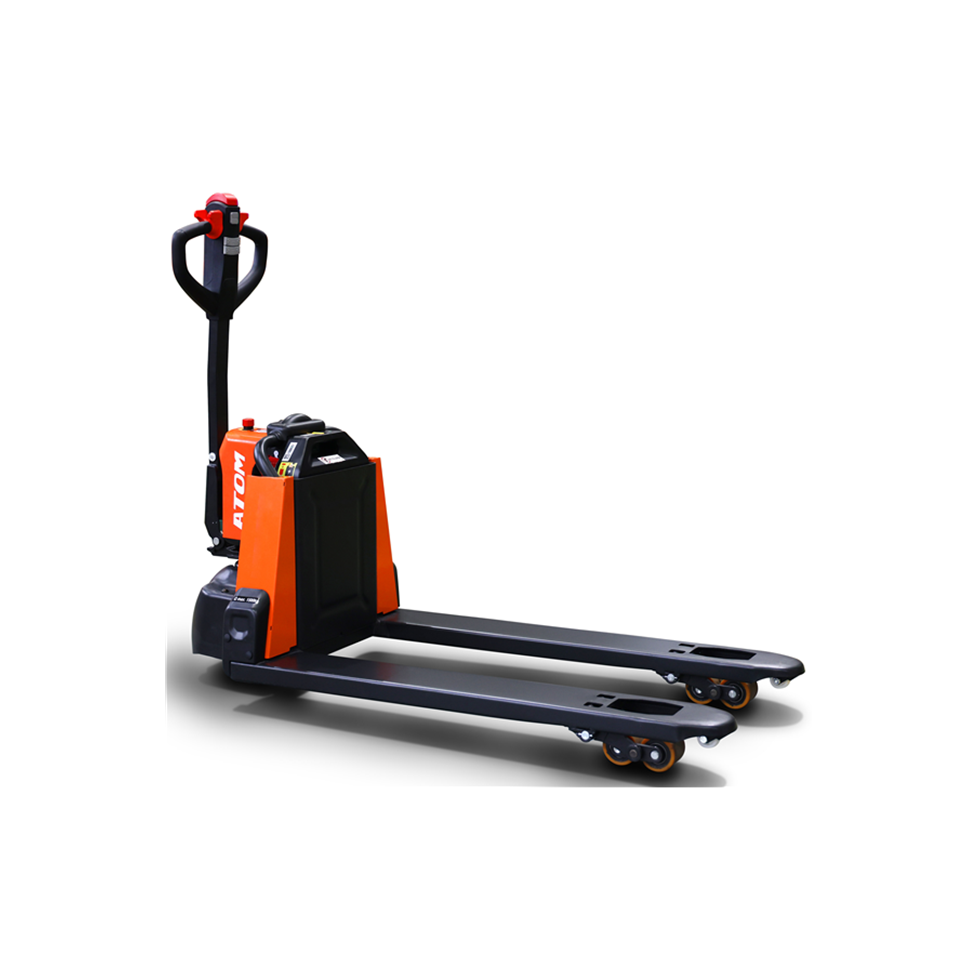

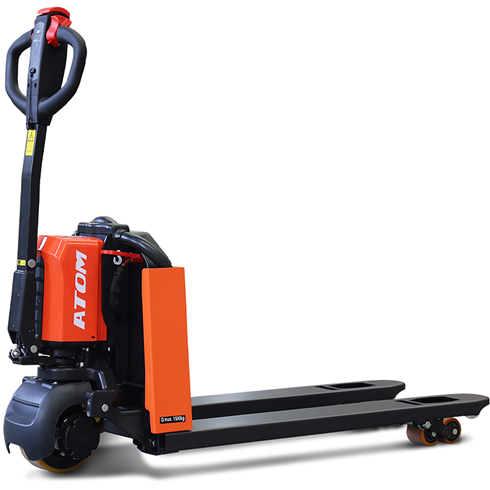

1500kg 'Atom' Fully-Electric Battery Pallet Truck

1500kg 'ATOM' Fully-Electric Battery Pallet Truck

The new ATOM Lithium powered electric Pallet Truck is designed under the current industrial trend of light duty and Lithium power solution.  It continues the concept of the Edge series Pallet Trucks with compact and smart design but with a target to minimize the cost in maufacturing to offer a more affordable powered light duty material handling solution to the end users

The Atom continues to offer the function and solution usually for high-end electric Pallet Trucks including Can-bus Communication, Fault Code, Battery Discharging Indicator, Drive with the tiller in vertical position, Electric lift and lower control etc...., make it the perfect solution for the material handling for retail, small warehouses and so on

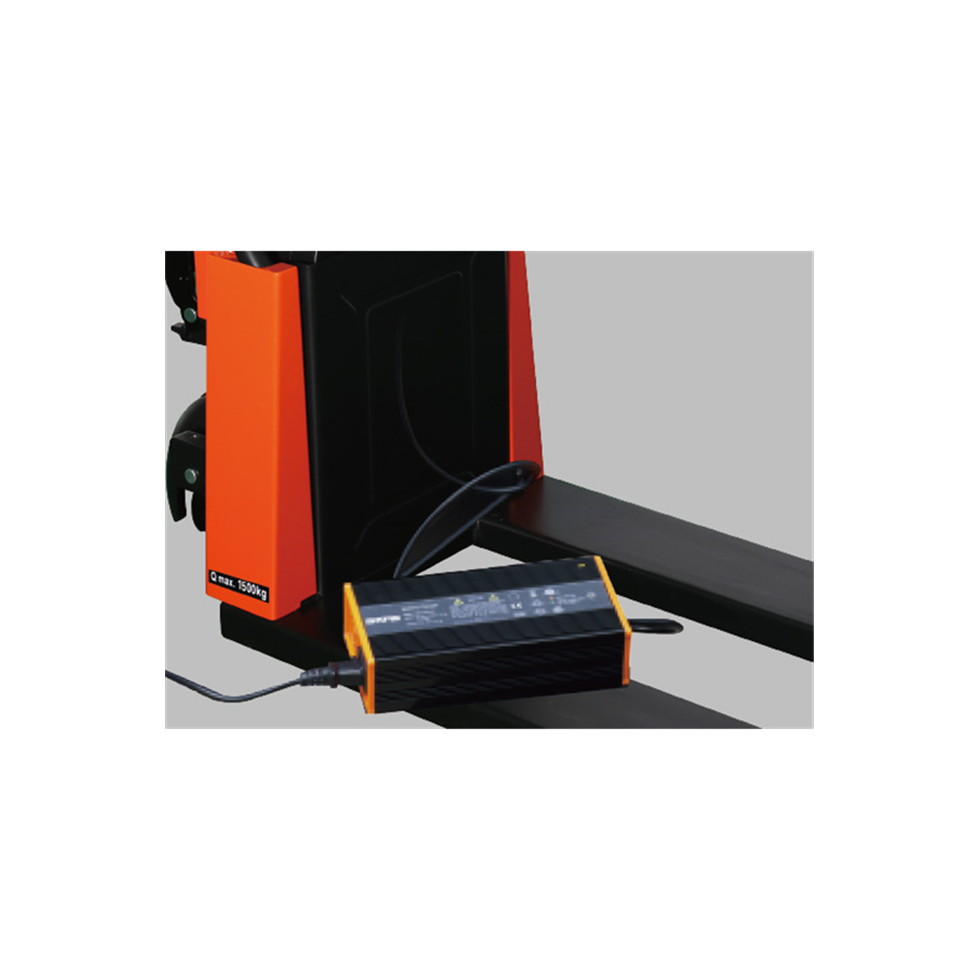

Smart lithium battery for fast charging and opportunity charging, no maintenance needed

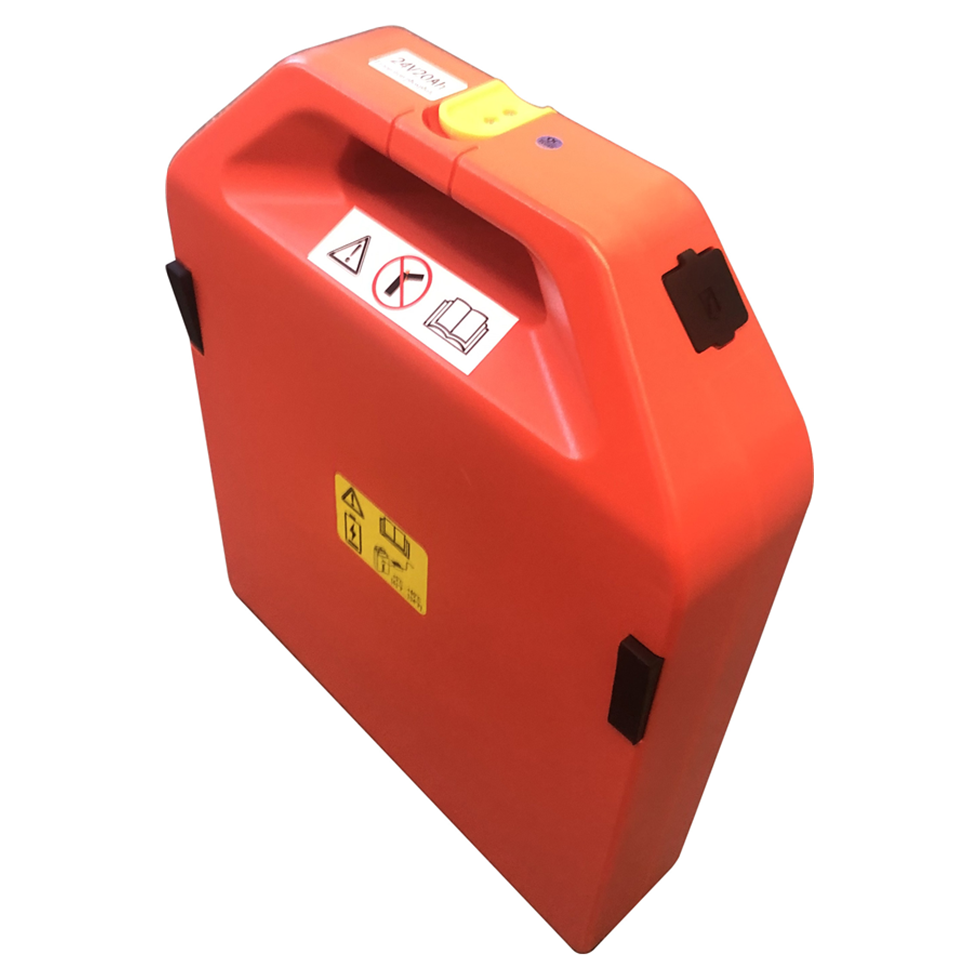

The 'Atom' is equipped with maintenance-free 24V/23Ah Lithium battery with optional different capacities for various application

The frame of the truck is surrounded by steel covers making the truck looking different and also ensuring the protection of the components

The shape of the forks allow easy entrance and exit from pallets.  Full length double sided C-shape reinforcements of forks significantly increase strength and rigidity of frame

The Truck has a capacity of 1500kg and ability to overcome ramps up to 6/16% (laden/unladen) makes it suitable for work in loading docks an on delivery operations in difficult conditions

The mimizied service weight of 127kg makes the Truck ideal to be used for delivery lorries with tail lifts platforms for goods distributions without sacrificing the transported weight

With a turning radius of 1340mm with lifted/lowered forks make this Truck extremely compact and ideal for use in confined spaces of retail stores, elevators or business centres

The truck is intended to be used for indoor applications with ambient temperatures between +5°C and +40°C and for various transportation applications without crossing permanent obstacles or potholes

3-6hrs working time on the battery (additional batteries sold seperately)

Minimum charge time: 2-3hrs

Fully electric driven and electric lifting

Fork dimensions: 540mm wide x 1150mm long

Overall length: 1543mm

Lift height: 115mm

Height lowered: 80mm

Lithium battery weight: 6.5kg
